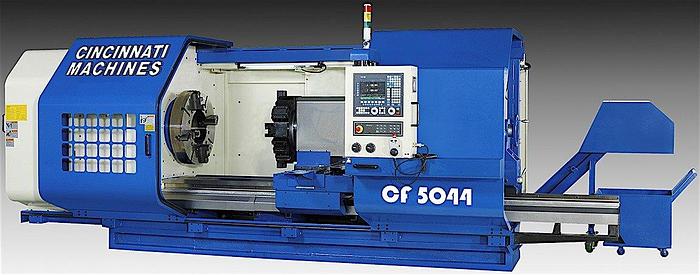

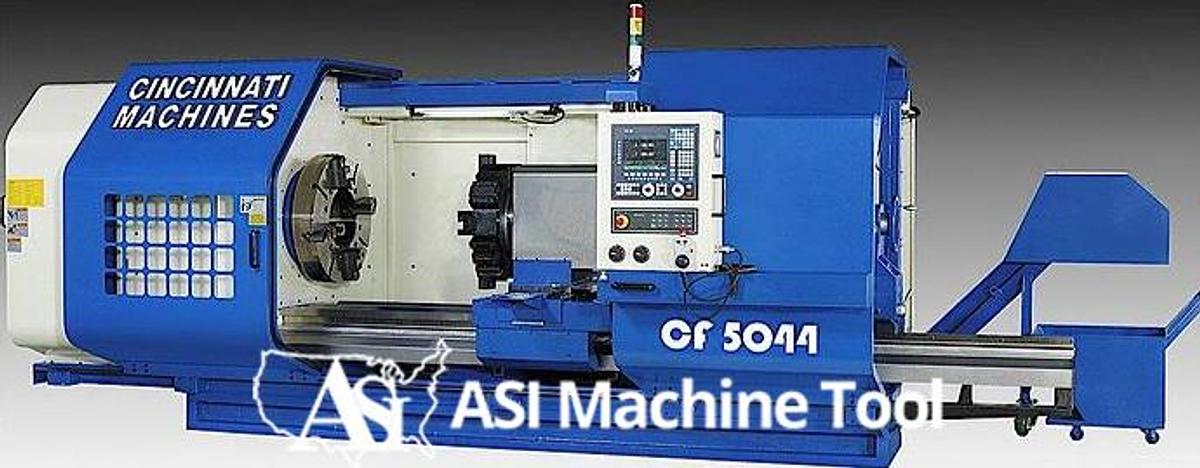

2018 Cincinnati Machines CF 5044 Series Heavy-Duty Flat Bed CNC Lathe

2018 Cincinnati Machines CF 5044 Series Heavy-Duty Flat Bed CNC Lathe

orCall (888) 341-6163


FEATURES AND EQUIPMENT: Fanuc 0i-I TF CNC Controller, Manual Guide Shop Floor, and Thread Repair, 40/50 HP Spindle Motor, 4-Range Headstock Gear Box, Electrical Controls, Heavy-Duty single Bed Casting with Hardened bed ways, V-12 Automatic Turret, Automatic Lubrication, High Volume Coolant System, Work Light, Tools & Tool Box, Sleeve & 2 Centers, Oil Thermal Controller, Manual Tailstock, Rear Side Chip Conveyor, Single Front DoorDoor Rear with Raer Full Length Splash Guard, Hand-Held Manual Pulse Generator, Full 2-Year Fanuc Parts & Service Warranty on all Fanuc Control and Drives The prices quoted herein do not include rigging and transportation charges from Cincinnati. It is CINCINNATI MACHINES understanding that these charges will be the responsibility of the user. There is only a parts warranty on this machine unless otherwise agreed. EXTRA COST ITEMS AND ACCESSORIES 20” 3-jaw Scroll Chuck $3,480.00 25” 3-jaw Scroll Chuck $5,550.00 30” 4-Jaw Steel Body Independent Chuck $5,890.00 40” 4-Jaw Steel Body Independent Chuck $7,180.00 Programmable Tail stock instead of Manual $9,560.00 SHIPPING SCHEDULE The dshipment on this type of machine would be approximately Stock to 120 Days ARO and 50% downpayment. QUOTATIONS AND PURCHASE ORDERS This quotation is valid for sixty (60) days from the proposal date unless otherwise specified. Please reference the proposal number above on your purchase order and/or any further communications TERMS AND CONDITIONS The proposal includes the terms and conditions set forth in TERMS AND CONDITIONS OF SALE Form CTN-101, attached hereto and incorporated herein. Any order resulting from this proposal is subject to these TERMS AND CONDITIONS unless expressly stated otherwise in writing by a duly authorized representative of CINCINNATI MACHINES, INC. Thank you for the opportunity to provide this proposal. If you have any questions or require additional information, please contact us at your convenience.


Stock NumberXTNew
Control typeFanuc
Maximum swing50
Bar capacity6
Chuck diameter25.00
Lathe typeLathes
Swing Over Bed 50”
Swing Over Cross Slide 35”
Distance Between Centers 44″
Load Capacity in Chuck 4,000 lbs
Load Capacity Between Centers 6,000 lbs
Spindle Speeds 20 to 1000 RPM
Spindle Nose A2-11
Spindle Bore 6″
Z-Axis Travel 59”
Y-Axis Travel 20”
Feed Rates for X-Axis .00004 to 9.84 IPR
Feed Rates for Z-Axis .00004 to 15.75 IPR
Rapid Traverse X-Axis 236 IPM
Rapid Traverse Z-Axis 315 IPM
Tailstock Quill (5.7”) Built In Rotating Type
Weight (approx) 28,600 LBS
Overall Dimensions 190”x 107“ 100”
