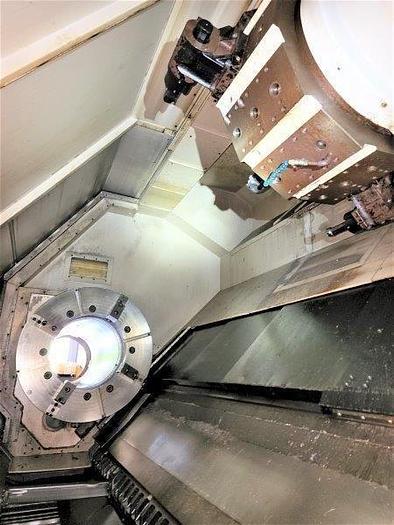

USED 2007 MAZAK SLANT TURN 80NR 22″ BIG BORE CHUCKER CNC LATHE
Sold
USED 2007 MAZAK SLANT TURN 80NR 22″ BIG BORE CHUCKER CNC LATHE
Description
EQUIPPED WITH: - Mazatrol Fusion 640T CNC Control - 40″ Chuck - Re-threading - Rear Mount Chuck Adapter - High Power Coolant 1.1KW/93 PSI/7.9 GPM - Chip Conveyor - Coolant Tank
Specifications
| Manufacturer | Mazak |
| Year | 2003 |
| Condition | Used |
| Stock Number | XXL0829 |
| Lathe type | Lathes, CNC |
| Maximum swing | 42.00 |
| Cutting length | 80.00 |
| Bar capacity | 21.26 |

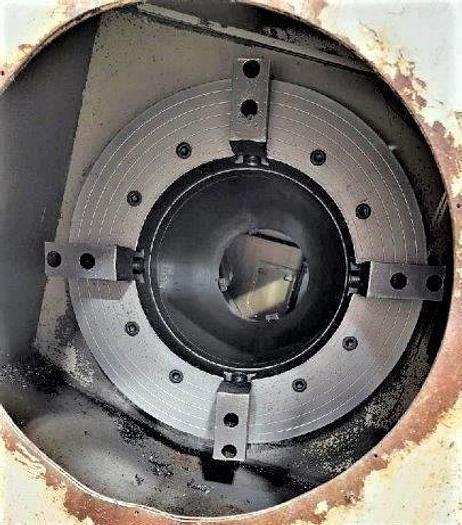

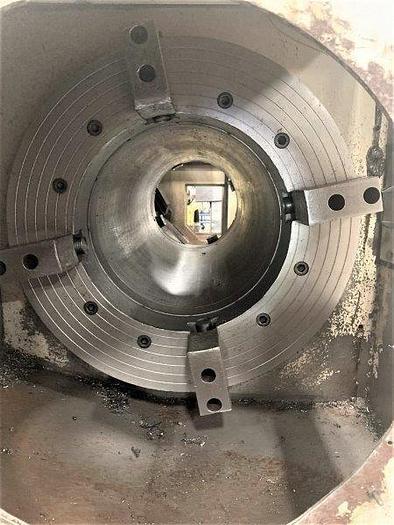

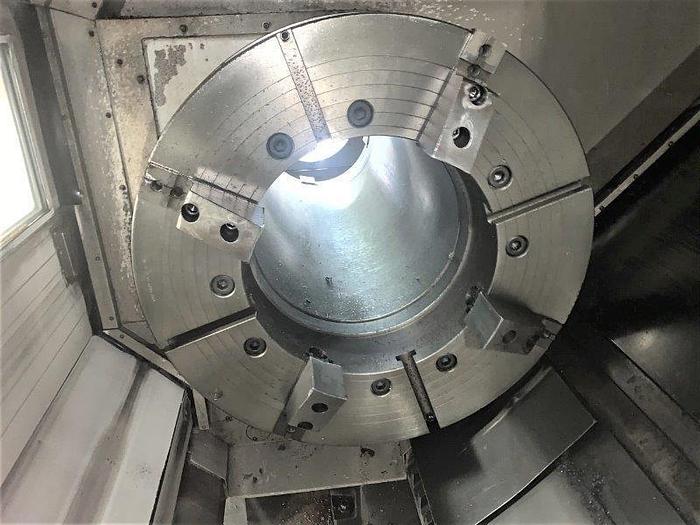

| Chuck diameter | 40.00 |
| Maximum Swing Diameter | 42″ |
| Swing Over Carriage | 31.40 |
| Max. Cutting Dia. (Chucking/Shaft Work) | 33.00″ / 31.40″ |
| Machining Diameter | 33.00 |
| Spindle Bore | 21.25″ |
| X Axis Travel | 27.50 |
| Z Axis Travel | 80.10 |
| Speed Ranges (Spindle) | 4 Ranges |
| Spindle Speed | 2 – 300 rpm |

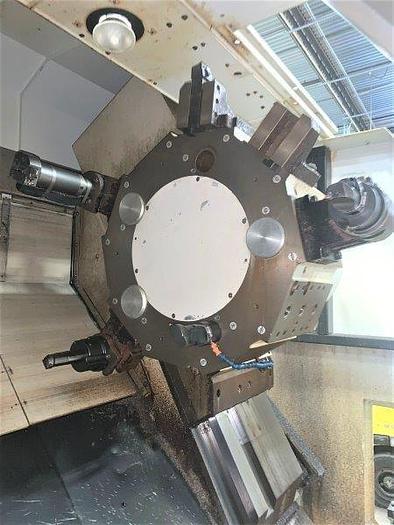

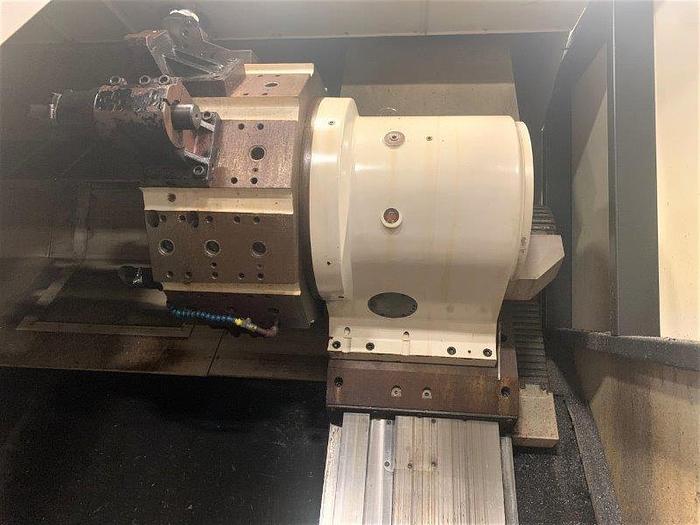

| Turret Type | Drum |
| Turret Positions | 15 |
| Spindle Horsepower (Cont/30 Mins) | 60/80 HP |
| Floor Space | (W x L) Chucker- 162″ x 320″ |
| Machine Height | 122″ |
| Total Weight | 38,280 lbs. |
