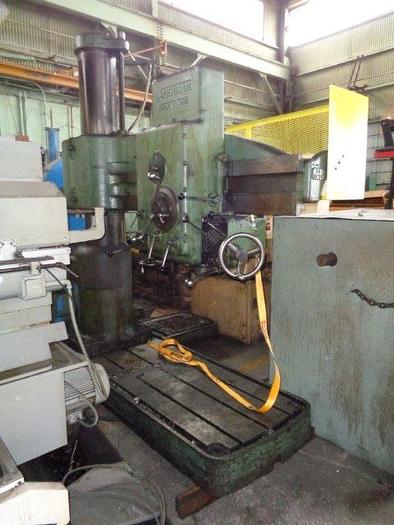

American Holewizard
Sold
American Holewizard
Description
- “L-Type” Base
Tapping
Power Elevation
Coolant System (Built-In)
Specifications
| Manufacturer | American |
| Model | Holewizard |
| Condition | Used |
| Stock Number | XXT0132MO |
| Serial number | 66158-42 |
| Arm Length | 5′ |
| Column Diameter | 13″ |
| Spindle Taper | #5 MT |
| Spindle Diameter | 3″ |
| Spindle Speed Range | 15 to 1200 RPM |
| (16) Spindle Feeds, Range | .003 to .125 IPM |
| (4) Tapping Leads, Range | 8 to 18 TPI |
| Drills to Center of Circle on Base | 120″ |
| Distance, Spindle to Base, Maximum | 60″ |
| Distance, Spindle to Base, Minimum | 6″ |
| Face of Column to Spindle, Minimum | 13-1/4″ |
| Vertical Spindle Travel in Head | 18″ |
| Vertical Arm Travel on Column | 36″ |
| Horizontal Head Travel on Arm | 46-3/4″ |
| Height of Base | 8″ |
