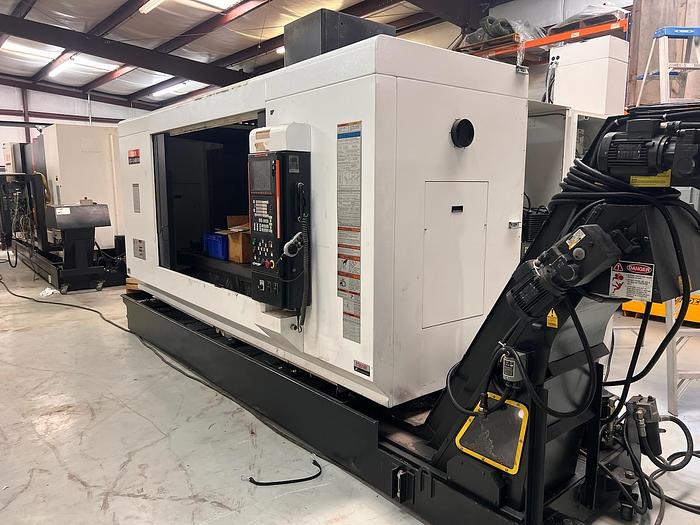

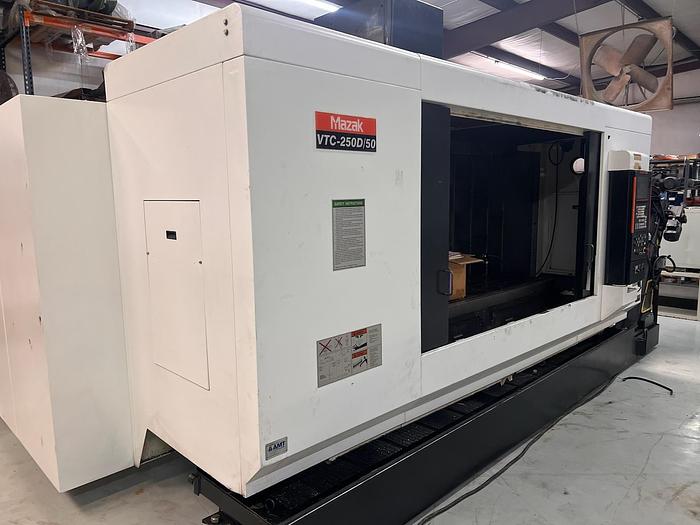

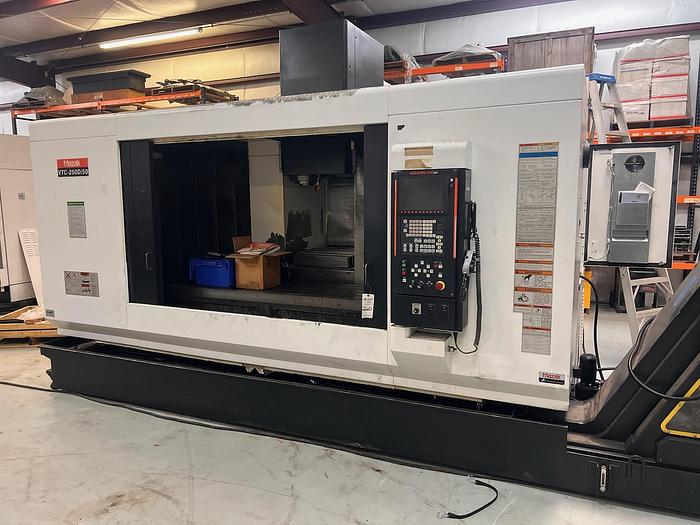

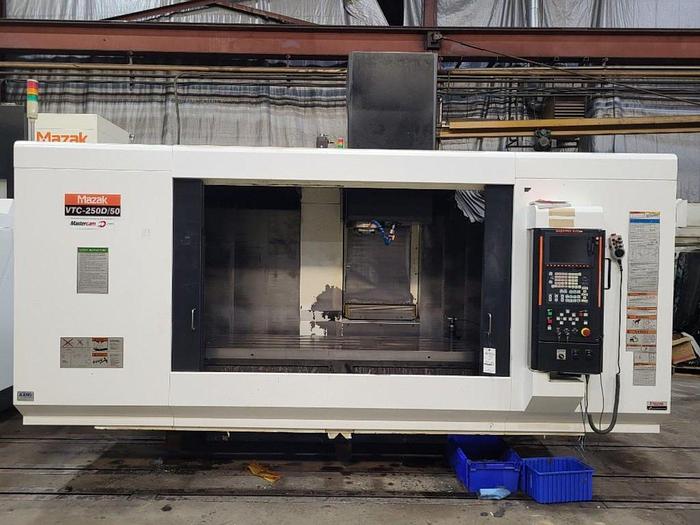

2012 Mazak VTC250/50D CNC Vertical Machining Center

2012 Mazak VTC250/50D CNC Vertical Machining Center

orCall (888) 341-6163

Description

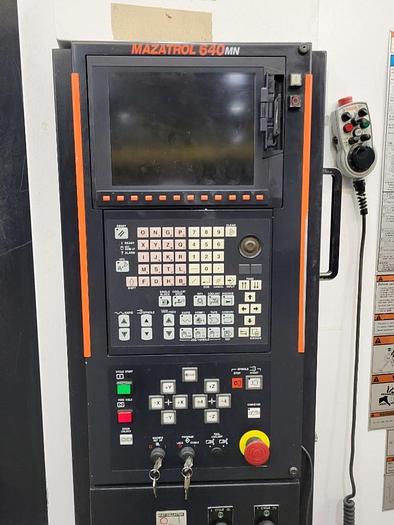

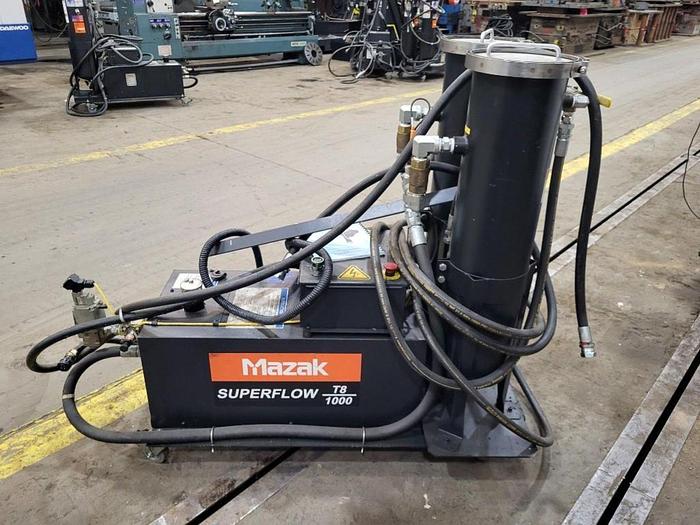

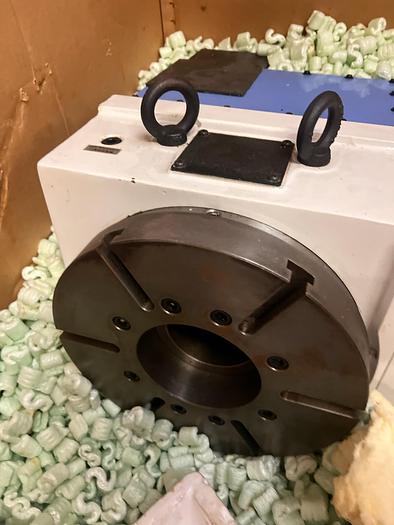

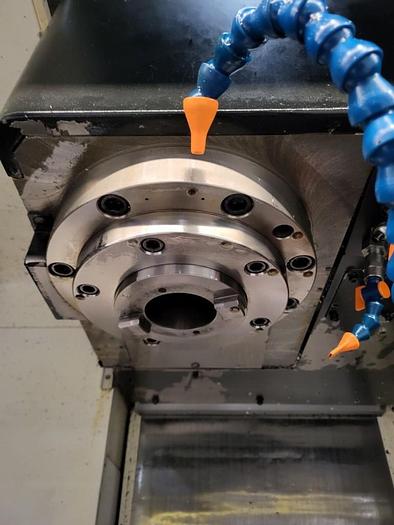

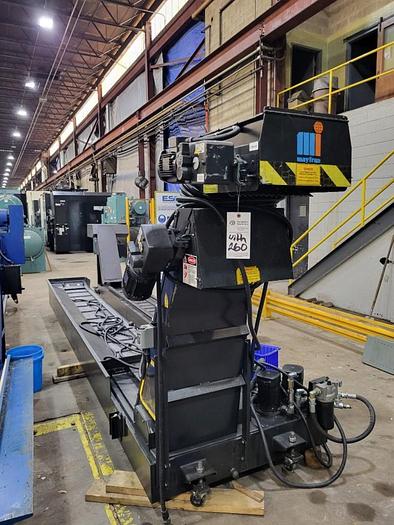

Equipped With: - Mazatrol PC-Fusion 640MN Control - Kitagawa TB320 Rotary Table - Manual Pulse Generator – Detachable - Coolant Thru Spindle -79psi 136 w/top Cover and 1000 psi SF Prep - Main Spindle Motor AC 30HP - KY Advantec CNC Option Pkg - Roller Guide - Air Blast - Mazak Superflow System TS High Pressure Coolant Unit 1000psi - Donaldson Torit WSO 10 Mist Collector including Stand - Relocation Device - Center Dividing Plate – Removable - Mayfram Consep 2000 Chip Conveyor - Mazacc – 3D Hi Speed Sodftware Package - Auto Tool Length Measurement Reneshaw TS27R - Monitoring System B Reneshaw RMP-60 - Auto Pecking Cycle with Load Detection

- Rotary Table can be added at Additional Cost


Specifications

ManufacturerMazak
ModelVTC 250/50D
Year2012
ConditionUsed
Serial Number243473
Stock NumberXL081723
Control typeMazatrol
TaperCat 50
X axis travel69.3
Y axis travel25
Z axis travel25.9
Table Size 82.68″ X 25″
Table Load Capacity 3,000 lbs
X-Axis Travel 69.3″
Y-Axis Travel 25″
Z-Axis Travel 25.9″
Distance from Spindle Nose-to-Table Top 7.09″min/33.07″max
Distance from Spindle C/L to Column 26″
Table Height 34.45″
Spindle Nose #50
Spindle Speed 26-6000 RPM
Number of Spindle Ranges 2 (Auto Gear Shift)
Spindle Horsepower (30min/cont) 30/25 Opt
Obtain Full HP @ (30 Min) (Low/High) 825/3,300 RPM
Spindle Cooling System Chiller Coil/Fan
X-Axis Rapid Traverse 1181 IPM
Y-Axis Rapid Traverse 1181 IPM
Z-Axis Rapid Traverse 1181 IPM
Servo Magazine Capacity 24 Tools
Floor Space…(without Chip Conveyor) 183.27″ X 132″
Machine Height From Machine Base 133.46″
Total Power Required Machine Only (20HP/30HP)28/49KVA
NoteMachine Arranged for 460 Volts 60 Hz (Unless Otherwise Specify)
Machine Weight 24,000 lbs
