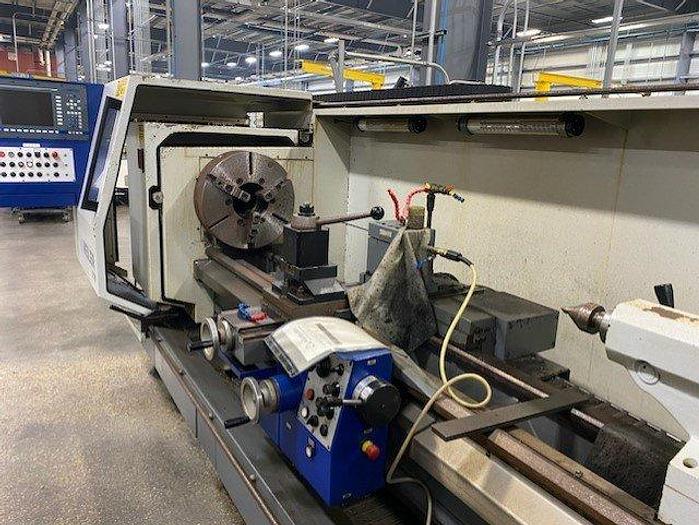

Used 2012 Weiler E50 / 2000 CNC Lathe

Used 2012 Weiler E50 / 2000 CNC Lathe

$114,500 (USD)

orCall (888) 341-6163

Description

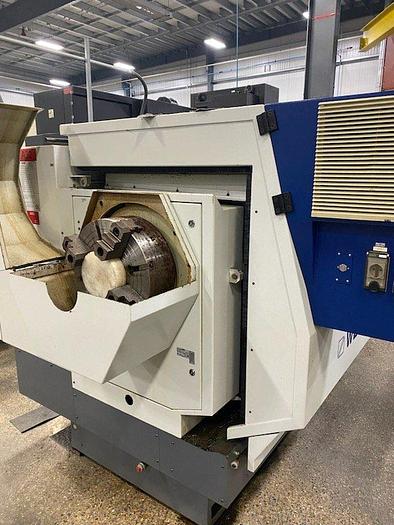

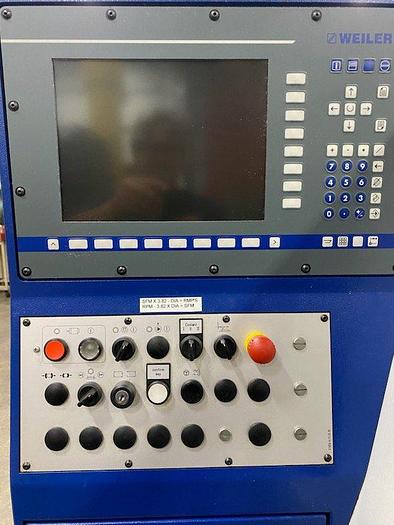

EQUIPPED WITH: 12″ TFT Color Flat Screen Aloris DA Series Tool Post Steady Rest with Roller Jaws Dia. 5″ – 10-1/2″ 2 Bison 16″ 4 Jaw Chucks with 6.5″ Bore Chip Conveyor Removable 3″ Dia. Boring Bar Block D3 Personal Computer Software Increased Capacity Coolant 230 V Transformer

Specifications

ManufacturerWeiler
ModelE 50
Year2012
ConditionUsed
Stock NumberXL110723MW
Control typeWeiler
Maximum swing22.4"
Bar capacity6.5
Chuck diameter16.00
Lathe typeLathes, Combination, CNC Turning Center, Oil Country CNC
Swing over bed22.44″
Swing over cross slide13.39″
Travel of cross slide13.39″
Turning length / Center distance78.74″
Width of bed13.78″
Spindle bore6.5″
900 Nm Metric threads0.001″ – 78″
Inch threads112-1/64
TPI Modular threads0.001 – 2.20″
Diametral threads448 – 0.05
DP Number of thread courses max360
Quill diameter3.15″
Quill travel7.87″
Inside taper of quill5 MT
Dimensions173″ x 91″ x 75″
Weight9,370 lbs
