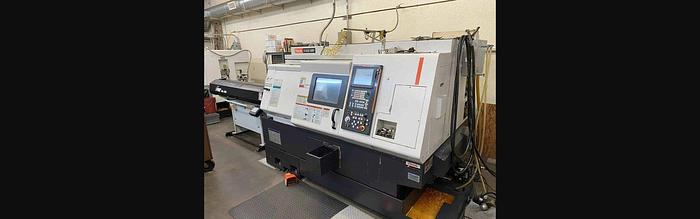

Used 2005 Mazak QTN 250MSY Multi Tasking CNC Lathe with ATS Bar Feeder

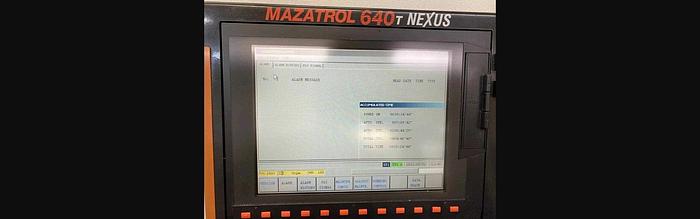

MAX. SWING………………………………….. 26.5″ MAX. TURNING DIA……………………….. 14.00″ SPINDLE BORE…..……………………………. 3.46″ MAIN SPINDLE CHUCK SIZE……………………… 10″ MAIN SPINDLE C – AXIS …………………………001 N/C CONTOURING SPINDLE NOSE………………………………….A2-8″ MAX BAR CAPACITY……………………………………….. 3.00″ SPINDLE SPEEDS.………………………………….. 4000 RPM X – AXIS……………………………………………… 9″ Z – AXIS (BETWEEN CHUCK JAWS)………………………… 21.28″ Y – AXIS ……………..…………………………….+-2.00″ W – AXIS (SUB-SPINDLE)…………………………………. 23.00″ MIN. SPINDLE INDEXING……………………………. 0.001 DEGREE SUB SPINDLE CHUCK SIZE………………………………. 6″ SUB SPINDLE SPEED………………………………………… 6000 RPM SUB SPINDLE HORSE POWER……………………………………………. 10 HP RAPID ON SUB SPINDLE…………………………………………………. 1181 IPM RAPID TRAVERSE X,Z………………………………………………………. 1181, 1299 IPM RAPID TRAVERSE Y…………………………………………………………. 826 IPM C-AXIS………………..…………………………………… 400 RPM TURRET TYPE……….…………………………………… 12 TRT BORING BAR TYPE ……………………………………………….1.25″ ROTARY TOOL SPEED……………………………………….. 6000 RPM ROTARY TOOL HORSEPOWER…………………………………… 7.5 HP AC MAIN MOTOR …………………………………………….35 HP AC MACHINE WEIGHT …………………………………..11,530 LBS. EQUIPPED WITH: MAZATROL 640T NEXUS CONTROL 10″ Hyd and 8″ Hyd Chuck on Main and Sub. ATS ML-580 Bar Feeder Parts Catcher Auto Tool Presetter Sub Spindle Chip conveyor
