Used 2008 Mazak QTN 450II x 40″ CNC Lathe
Used 2008 Mazak QTN 450II x 40″ CNC Lathe
Description

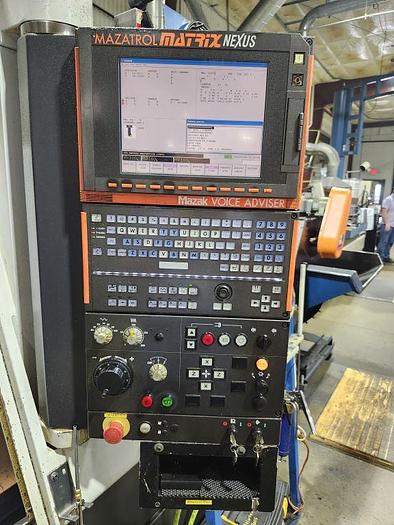

MAXIMUM SWING:………………………………33.25” STANDARD MACHINING DIA:……….13.22” MAX MACHINING DIA:…………22.80” SPINDLE MOTOR:……………………………………….40/30 HP SPINDLE BORE:……………………………………………6.5” SPINDLE SPEED:………………………………………2000 RPM SPINDLE NOSE:…………………………….. A2-15 TURRET TYPE:………………………………. 12D/24 POSITION DRUM TURRET NUMBER OF TOOLS:………………………….12 X-AXIS TRAVEL:…………………….13.3” Z-AXIS TRAVEL / BED LENGTH:………………43.46” TAILSTOCK CENTER:…………………………MT N0 5 EQUIPPED WITH: Mazatrol Matrix Nexus
18" Big Bore Thru Hole Chuck
ATLM High Power Coolant 59 psi

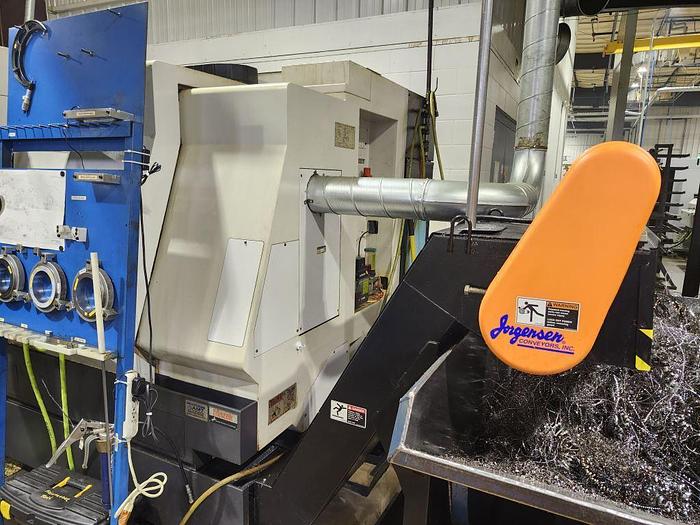

Chip Conveyor
Specifications
| Manufacturer | Mazak |
| Model | QTN 450II |
| Year | 2008 |
| Condition | Used |
| Stock Number | XL081523 TH |
| Control type | Mazatrol Matrix |
| Maximum swing | 33.25 |
| Standard Machining Diameter | 13.22 |
| Max. Machining Dia. | 22.80 |
| Cutting length | 40 |
| Main Motor | 40/30 HP |
| Bar capacity | 6.5 |
| Chuck diameter | 21.0 |
| Spindle Speed | 2000 RPM |
