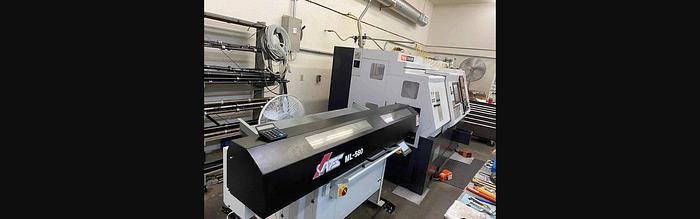

Used 2010 Mazak QTN 100MSY Multi-Tasking CNC Lathe with ATSML-565 Barfeed

Standard Chuck Size….………………………………………. 6” Maximum Swing.………………………………………………. 21.65” Standard Machining Diameter……………………………. 8.76” Maximum Machining Diameter.…………………………. 11.0” Maximum Support Weight (chuck/shaft)..…………. 330 Lbs / 330 Lbs Spindle Motor (30min/Cont)……………………………… 15/10 HP Spindle Bore………………………………………………………. 2.40” Standard Bar Capacity………………………………………. 1.62” Spindle Speed…………………………………………………….. 35 ~ 6,000 RPM Spindle Nose……………………………………………………… A2-5 Turret Type………………………………………………………… VDI Turret Number of Tools………………………………………………… 12 Tool Size (outside / inside)…………………………………. 0.79” / 1.26” Turret Index Time (one/full)……………………………….. 0.2 sec/0.6 sec Mill Spindle Motor………………………………………………. 5 HP Mill Spindle Speed………………………………………………. 4,500 RPM Feed Axis Travel (X/Y/Z)…………… ………………………… 7.25” / 4.0 / 17.875” Feed Axis Rapid Traverse (X/Y/Z)…………….………….. 1,181 / 826 / 1,299 IPM Second Spindle Speed.……………………………………….. 35 ~ 6,000 RPM Second Spindle Nose………………………………………….. A2-5 Second Spindle Motor (30min/Cont)………………….. 15/10 HP Coolant Tank Capacity……………………………………….. 34.3 Gal (US) Machine Height……….,……………………………………….. 76.0” Floor Space……………………….………………………………. 91.1” x 64Machine Weight………………….……………………………. 9,259 LBS EQUIPPED WITH: Mazatrol Matrix ATS ML-565 Barfeed Auto Tool Presetter Auto Parts Catcher Sub Spindle Collet Chuck on Main Spindle Chip Conveyor
