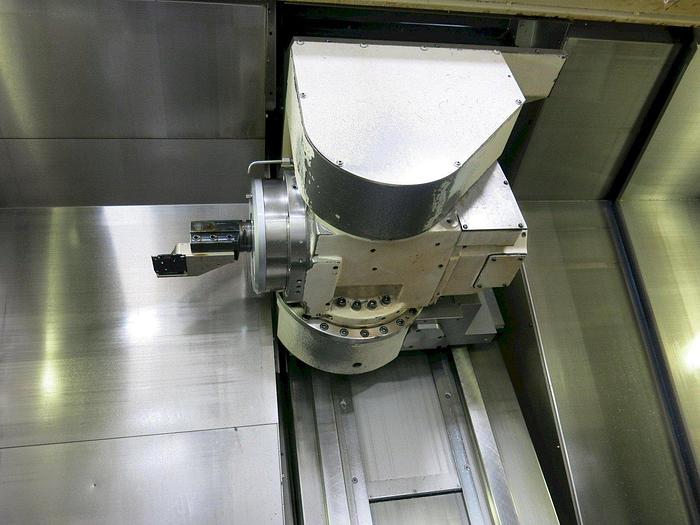

2010 Mazak Integrex 200IVST / 1500 Multi Axis CNC Lathe

Bar Capacity: 2.5″ Chuck Size: 8″ (Main/Sub)” Max Swing: 26″ Max Turning Dia: 26″ Upper / 10.24″ Lower” Max Turning Length: 58.85″ Spindle Speed: 5000 (Main/Sub) RPM Spindle Motor: 30 Main HP Milling Spindle: 25 Milling HP C Axis: 0.0001 deg Index X Axis Travel: 22.83″ Upper / 5.9″ Lower” Z Axis Travel: 60″ Turret Tools: 9 Lower / 40 ATC Station, Cat 40 Dimensions: 201″x96″x102″ Weight: 25960 LBS Matrix Control W-15” Color Monitor Matrix -Control 12,000 RPM Spindle Capto C6 – 40-Tool KM Magazine Chip Conveyor Side Discharge C1 – C2 Spindle Synchronous 8” – Through Hole Chuck 2.0” Bar Capacity – 1st spindle 8” Non – Through hole Chuck 2nd spindle 213-PSI Hi-Pressure Coolant Through The Mill-Head 2nd Spindle C-Axis 9-Station Lower Turret
