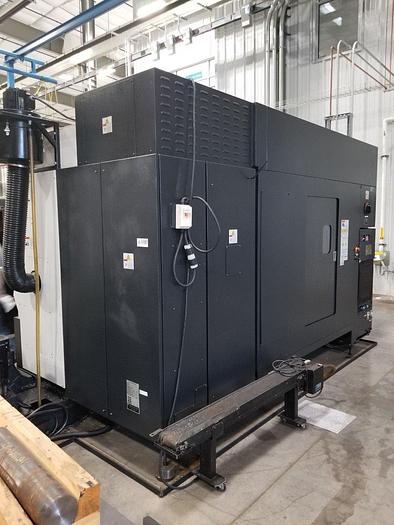

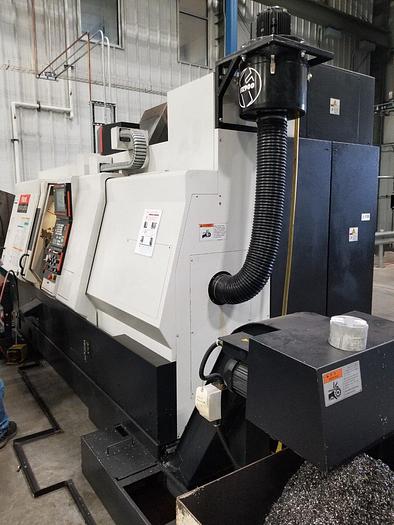

Used 2005 Mazak Integrex 200III Multi Axis CNC Lathe

Standard Chuck Diameter…………….. 8″ Maximum Swing……………………… 26″ Maximum Swing over Carriage…………. 19.7″ – 26″ NOTE: Depends upon workpiece length, tool magazine type and Y axis position Maximum Cutting Diameter: Chucking…… 26″ Maximum Cutting Length …………….. 40″ Spindle Nose………………………. A2-6 Spindle Bore………………………. 2.99″ Maximum Bar Work…. ………………. 2″ Spindle Speed/Ranges……………….. 35 – 5000 RPM / 1 Spindle Index (Programmable)………… 0.0001 Degree Spindle Horsepower (Cont/30min)……… 20/30 H.P. (A.C.) Spindle Torque…………………….. 258.1 ft-lbs Magazine Capacity……………………..40 ATC Type of Turret…………………….. 1 Position, w/ATC ATC Tool Shank…………………….. Mazak KM63, (Capto ), (BT Option) Rotary Tool Spindle Speed/Ranges…….. 12,000 RPM / 1 Rotary Tool Spindle Horsepower (20% ED)……………. 20 H.P. (A.C.) B-Axis……………………………. 225 deg.(.0001 deg. increments) Y-Axis……………………………. +/- 3.15″ X-Axis……………………………. 22.83″ Z-Axis……………………………. 41.1″ Spindle Center…………………….. MT #4 Live/Built in Body Travel……………………….. 39.76″ Floor Space (WxL)………………….. 81.1″ x 150.39″ Machine Height…………………….. 102.24″ Machine Weight…………………….. 20,680 lbs. EQUIPPED WITH: Mazatrol 640MT Pro 8″ Hydraulic Chuck Chip Conveyor Filtermist FX900 Mist Collector
