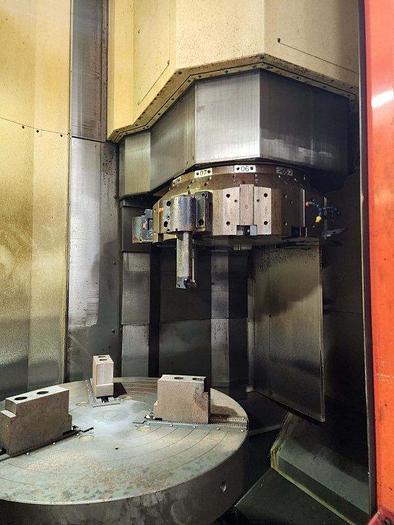

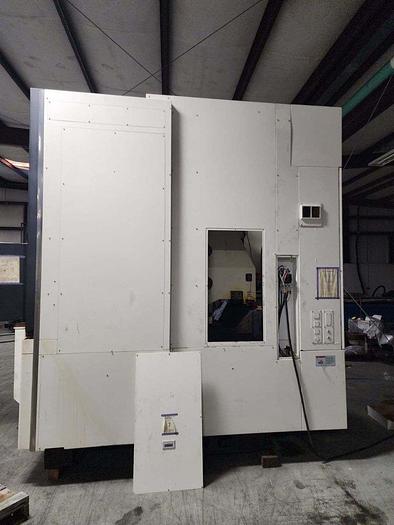

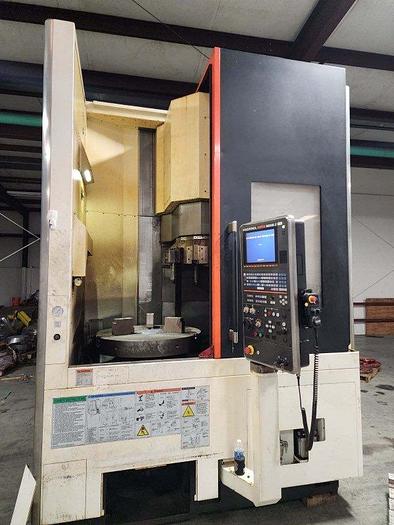

Used 2013 Mazak MEGATURN NEXUS 900 CNC VERTICAL TURRET LATHES

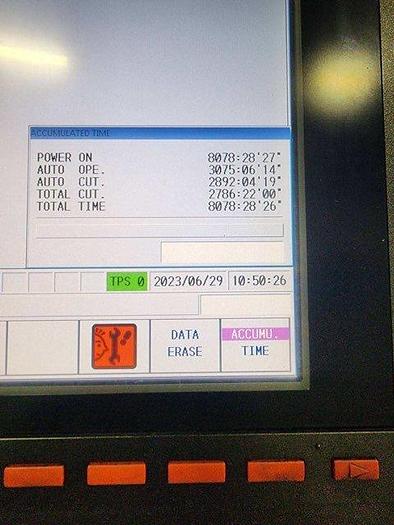

Chuck Size:………………………………………………………….. 36″ Maximum Swing.………………………………………………. 39.37” Maximum Machining Diameter…………………………. 36.22” Distance Between Centers.………………………………. 6.125” to 40.375” Spindle Nose……………………………………………………… JIS A2-15” Spindle Bore………………………………………………………. 4.72” Spindle Speed…………………………………………………….. 1250 min-1 Spindle Motor (30min/Cont)..…………………………….. 40/30 HP Number of Tools………………………………………………… 12 Tool Size Turning (Outside/Inside)..…….……………… 1.25” / 2” Indexing Time (Next/Opposite position)…………….. 0.4/1.0 sec Feed Axis Rapid Traverse (X/Z)……………….………….. 945 / 945 IPM Feed Axis Travel (X/Z)………………………………………… 18.5” / 34.25” Coolant Tank Capacity……………………………………….. 16.24 ft³ Power Requirement (Cont/30min)…………..…………. 46.6 / 58.1 kVA Air Supply…………………………………………………………. 1.06 ft3/min Machine Height……………………………………………….. 133.86” Floor Space………………………………………………………. 7.60 x 9.78 ft2 Machine Weight………………………………………………. 30,800 LBS EQUIPPED WITH: Mazak Nexus Control 2786 Total Cut Hours 12 Station Turret Chip Conveyor
