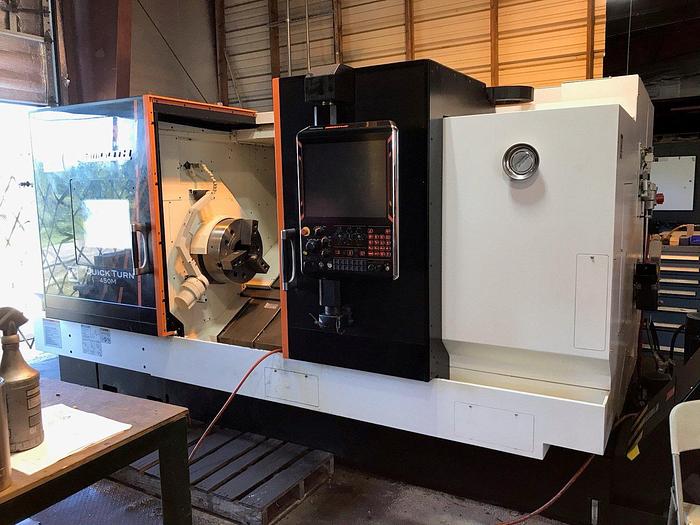

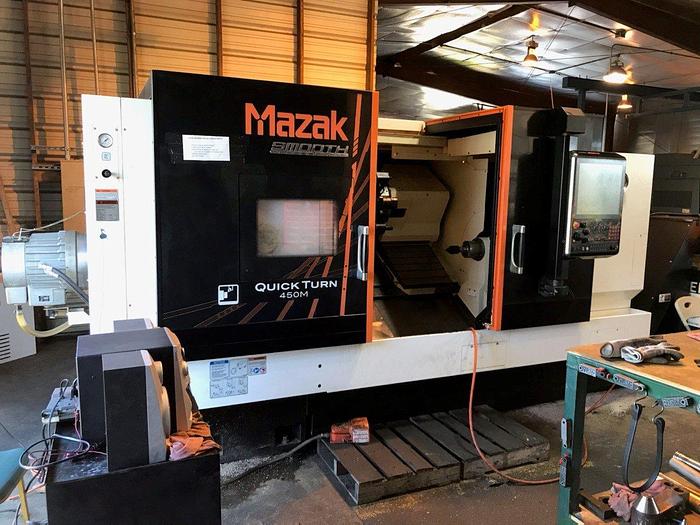

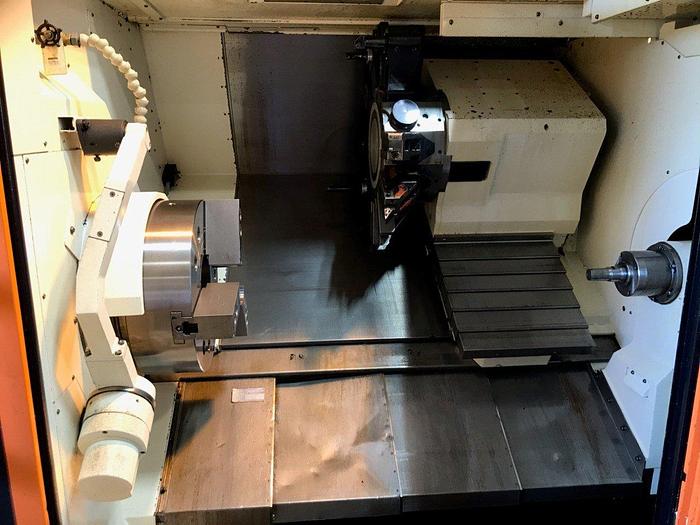

Used 2018 Mazak Quick Turn Nexus 450IIM x 40″

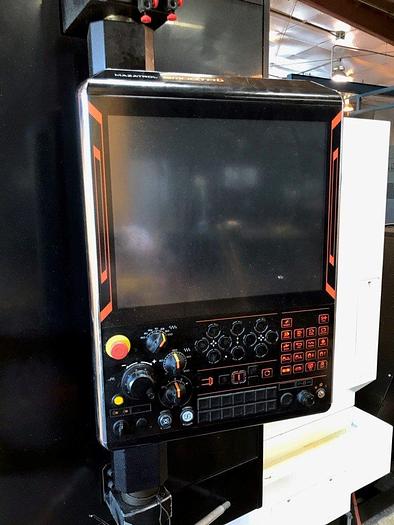

Maximum Swing.………………………………………………. 33.268” Standard Machining Diameter……………………………. 13.228” Maximum Machining Diameter.…………………………. 22.83” Standard Bar Capacity………………………………………. 7.2” Maximum Support Weight (chuck/shaft)..…………. 3,968 Lbs / 2,923 Lbs Spindle Motor (30min/Cont.)…………..………………… 50/40 HP Spindle Bore………………………………………………………. 7.28” Spindle Speed…………………………………………………….. 2,000 RPM Spindle Nose……………………………………………………… A2-15 Number of Tools………………………………………………… 12 Tool Size (outside / inside)…………………………………. 1.26” / 2.0” Turret Index Time (one/full)……………………………….. 0.25 sec/0.8 sec Mill Spindle Motor………………………………………………. 10 HP Mill Spindle Speed………………………………………………. 6,000 RPM Feed Axis Travel (X/Z) : 40” Bed…………………….……………………………… 13.37” / 42.12” Feed Axis Rapid Traverse (X/Z): 40” Beds..……….……………………………… 1,181 / 1,181 IPM Tailstock Travel: 40” Bed…………………….……………………………… 40.354” Tailstock Center………..……….……………….……………… MT Built in Center No. 5 Coolant Tank Capacity (40” bed)..………….. 11.3  Gal (US) Machine Height: 40”Beds………….……………….……………… 80.41” Floor Space: 40” Bed…………………….……………….……………… 182.76” x 94.92” Machine Weight: 40” Bed…………………….……………….……………… 22,266 Lbs. EQUIPPED WTH: MAZATROL SMOOTH Ctrl SMOOTH ENGRAVING FUNCTION AUTOMATIC TOOL EYE CHIP CONVEYOR (Disposal Hinge) 213 PSI HIGH-POWER COOLANT 18″ HYDRAULIC BIG BORE THRU-HOLE CHUCK PKG. 2000 RPM (6.5″ BAR CAP.) ADDITIONAL COOLANT NOZZLE (HEAD SIDE) RE-THREADING FUNCTION THREAD START POINT COMPENSATION ALL AVAILABLE MANUALS ALL AVAILABLE TOOL HOLDERS
