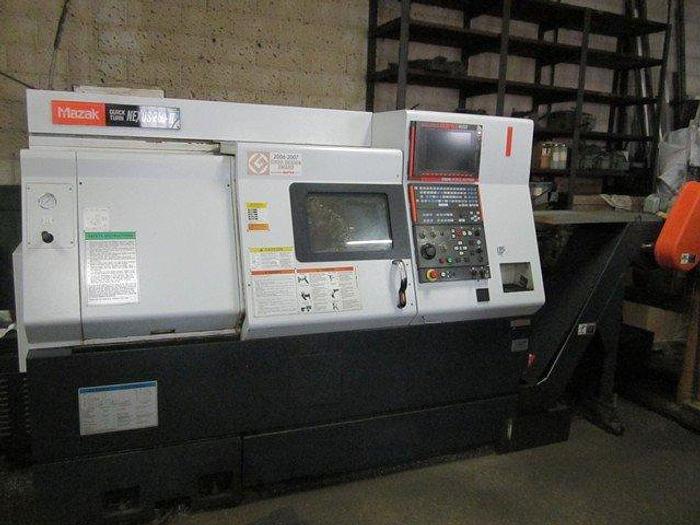

Used 2008 Mazak QTN 250II CNC Lathe

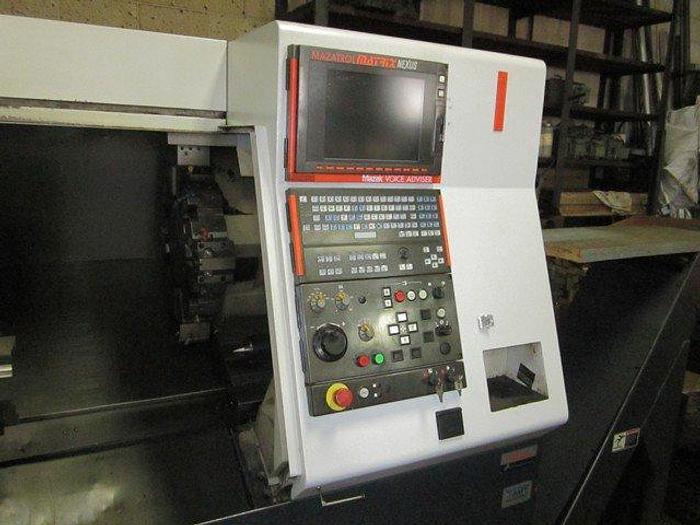

Chuck Size…………………………… 10″ Maximum Swing………………………… 24″ Swing Over Cross Slide………………… 13.78″ Standard Machining Diameter……………. 10.39″ Maximum Machining Length………………. 18.73″ Spindle Motor…………………… 35 / 30 (30 MIN/CONT.) Spindle Bore…………………………. 3.46″ Standard Bar Capacity…………………. 3.00″ Spindle Speed………………………… 4,000 RPM Number of Spindle Speed Ranges…………. 1 Spindle Nose…………………………. A2-8 Turret Type………………………….. DRUM TURRET Number of Tools………………………. 12 Tool Shank Height…………………….. 1″ Boring Bar Shank Diameter……………… 1.5″ Turret Index Time………………… .2 SEC (ONE POSITION) X-Axis Travel………………………… 7.5″ Z-Axis Travel………………………… 20.25″ Rapid Traverse Rates X-Axis……………. 1181 IPM Rapid Traverse Rates Z-Axis……………. 1299 IPM Tailstock Travel……………………… 20.75″ Tailstock Center……………………… MT NO.5 Coolant Tank Capacity…………………. 40 GAL Machine Height……………………….. 72.4″ Floor Space Requirement……………….. 98.4″ x 70.1″ Weight………………………………. 10,560 LBS. EQUIPPED  WITH: Mazatrol Matrix ATLM Chip Conveyor Coolant System Misc. Tooling
