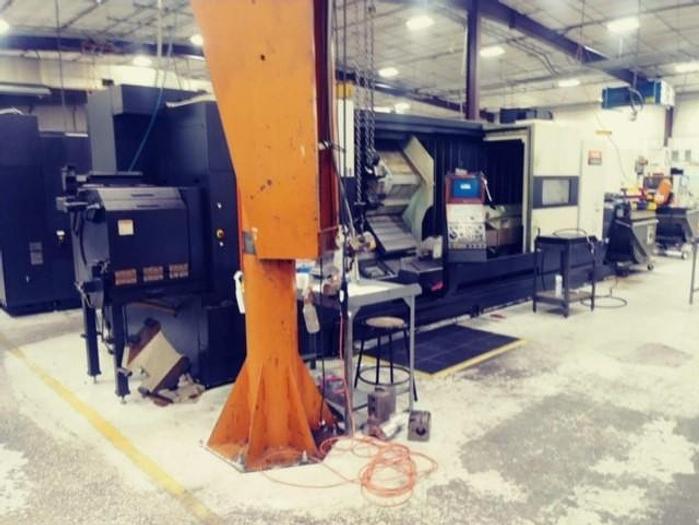

Used 2010 Mazak Slant Turn Nexus 550II / 3000 CNC 2-Axis Hollow Spindle Lathe

CHUCK SIZE……………………………………. 24″ Pneumatic MACHINING LENGTH……………………………. 123.7″ DISTANCE BETWEEN CENTERS………………………… 126.75″ MAX. SWING OVER BED………………………………….. 40.94” MAX. TURNING DIAMETER…………………………………. 36” BAR CAPACITY …………………………………………………..12.6” SPINDLE BORE………………………………………………. 12.6” SPINDLE NOSE………………………………………………….. A2-20 SPINDLE SPEED………………………………………………… 750 RPM SPINDLE MOTOR (CONT/30MINS)………………………………….. 60 HP NUMBER OF TOOLS…………………………………………………. 12 GEAR RANGES……………………………………………………… 2 SPINDLE TORQUE…………………………………………. 5163 FT – LBS. X – AXIS TRAVEL 1, 2…………………………………….. 18.25″ Z – AXIS TRAVEL 1, 2…………………………………… 129.87″ RAPID TRAVERSE RATES X1, X2………………………………. 787 IPM RAPID TRAVERSE RATES Z1, Z2……………………………… 945 IPM TAILSTOCK TAPER………………………………………………. MT 6 PROGRAMMABLE TAILSTOCK………………………………… YES TAILSTOCK TRAVEL…………………………………………… 126.75″ MACHINE WEIGHT……………………………………………. 42,108 LBS. EQUIPPED WITH: MAZATROL MATRIX with EIA 12.1 COLOR MONITOR / EIA 3D COM ALL AVAILABLE MANUALS COMPARISON STOP SMW K5.1 PREP (W/BRACKET AND SHOWER COOLANT REAR MANUAL CHUCK PREP INCH/METRIC CONVERSION TOOL EYE (ARM TYPE AUTO) SPINDLE BORE DIA 320MM (12.5”) EIA HELICAL TAP CYCLE EXIT-DATA I/O GEOMETRIC POLAR COODINATES INPUT SCALING THREAD CUTTING FUNCTION THREAD-CUT SPEED OVERRIDE USER MACRO 600 VARIABLES EIA PATTERN CYCLE G54.1 INVERSE TIME FUNCTION PITCH ERROR COMPENSATION RETHREAD THREAD START POINT SCHUNK TB-630-330 PNEUMATIC CHUCK FRONT COMP. CHIP CONVEYOR ALL AVAIABLE TOOL HOLDERS
