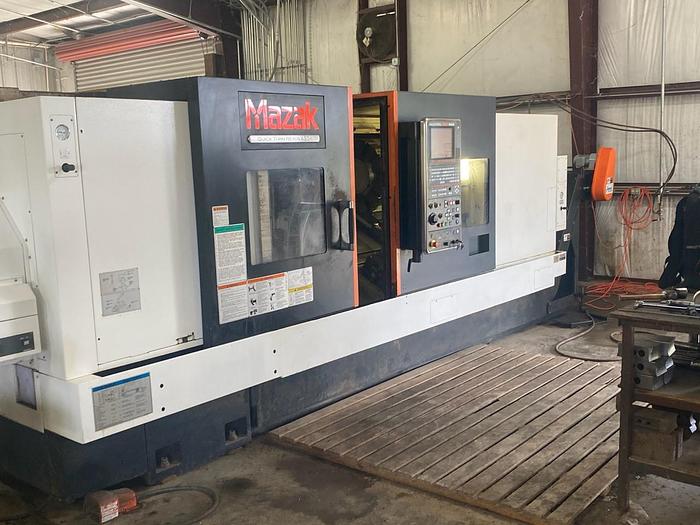

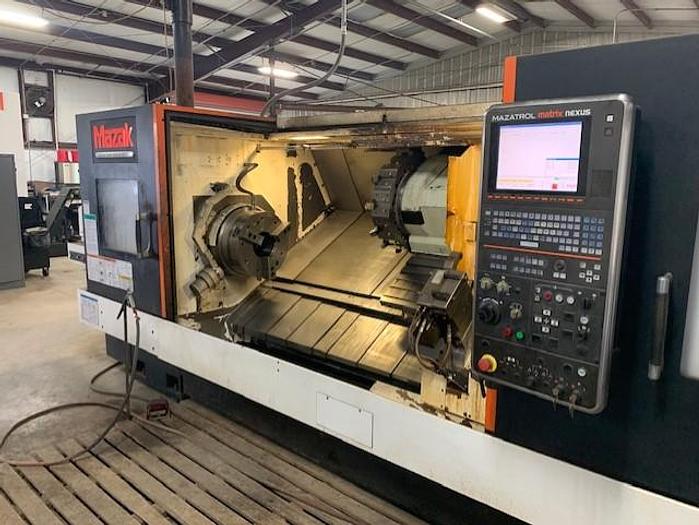

Used 2012 Mazak QTN 450II x 80″ CNC Lathe

SWING OVER BED…………………………………………….. 33.26″ TURNING DIAMETER, SHAFT DIAMETER………………………………….. 33.2″, 22.8″ MACHINING LENGTH……………………………………………………………. 83.5″ DISTANCE BETWEEN CENTERS……………………………………………… 83.55″ SPINDLE NOSE…………………………………………………………………… A2 – 15 SPINDLE BORE DIAMETER………………………………………………… 7.2″ SPINDLE BAR CAPACITY…………………………………………………… 7.2″ SPINDLE SPEEDS……………………………………………………………. 2000 RPM SPINDLE HORSEPOWER……………………………………………….. 50 HP X – AXIS TRAVEL…………………………………………………………….. 13.37″ Z – AXIS TRAVEL……………………………………………………………… 83.5″ RAPID TRAVERSE RATES………………………………………………… 1181 IPM RAPID TRAVERSE RATES………………………………………………. 1299 IPM TURRET CONFIGURATION………………………………………………… 12 TAILSTOCK QUILL DIAMETER……………………………………………. 5 TAILSTOCK TAPER………………………………………………………………. MT 5 TAILSTOCK TRAVEL…………………………………………………………… 72.5″ MACHINE WEIGHT…………………………………………………………. 25,910 LBS.. EQUIPPED WITH: 19″ Air Chuck MAZATROL MATRIX NEXUS CONTROL 12.1″ COLOR LCD USB I/F (2-PORT) LAN PORT MT CONNECT PREPARATION USER MACRO (COMMON VARIABLES: 600 PAIRS) EIA/ISO INPUT FUNCTION SEQUENCE NUMBER COMPARISON STOP FUNCTION ABSOLUTE POSITIONING SYS (N/A WITH S/F) TOOL EYE (AUTOMATIC) HIGH-POWER COOLANT (1.1 KW)(118 PSI, 16 GPM) OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH HYDRAULIC PRESSURE INTERLOCK 12D/24 POSITION DRUM TURRET S0 HP MAIN SPINDLE MOTOR AC (37KW, 50HP, 1760 FT*LBS) SPINDLE BORE DIA.185MM (7.28″)/2000RPM MANUAL REAR CHUCK PREP A2-15 NOSE (SEE NOTE) PROGRAMMABLE TAILSTOCK BUILT IN LIVE CENTER MAZAK STANDARD COLOR (F WHITE/ S BLACK) KEN OKUYAMA DESIGN ROLLER GUIDE MULTITAP TRANSFORMER RELOCATION DEVICE WINDOWS XP OPERATING SYSTEM FOR MAZAK MACHINE CONTROL. LNS-AUTOBLOK BB-N 470/191 AIR CHUCK PKG (FRONT MOUNT) CHIP CONVEYOR SIDE 2000U (80″)(HINGE) RE-THREADING THREAD START POINT COMPENSATION SPLIT BORING BAR HOLDER 2″ QTN 450 DRUM TURRET SMW STEADY REST PREPARATION SINGLE/AUTO LNS/AUTOBLOK SUPPLIED SLU-X-3.1 STEADY REST PKG (.787 11 -6.50″ MAX CAP) INCLUDES MOUNTING BRACKET AUTO OIL LUBRICATION SYSTEM HYDRULIC HOSE PKG & INSTALLED AT MAZAK KY STANDARD TOOLING PACKAGE FOUNDATION KIT(PLATES) ALL AVAILABLE MANUALS
