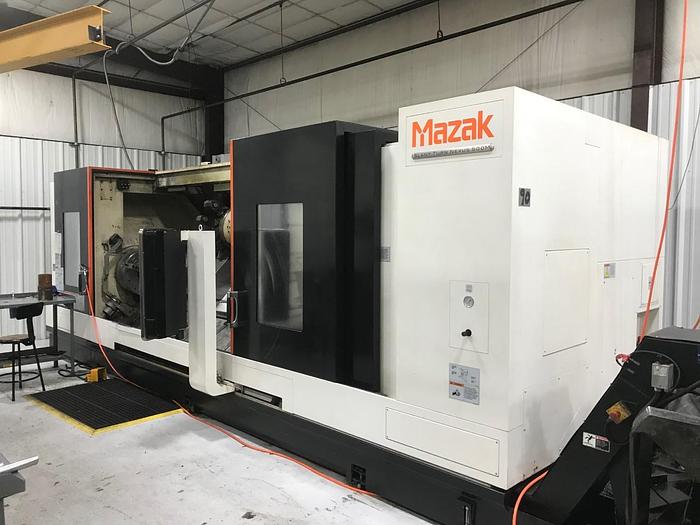

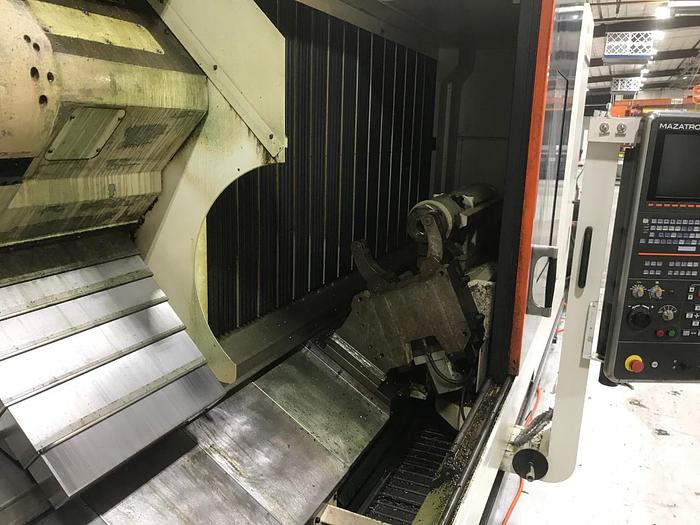

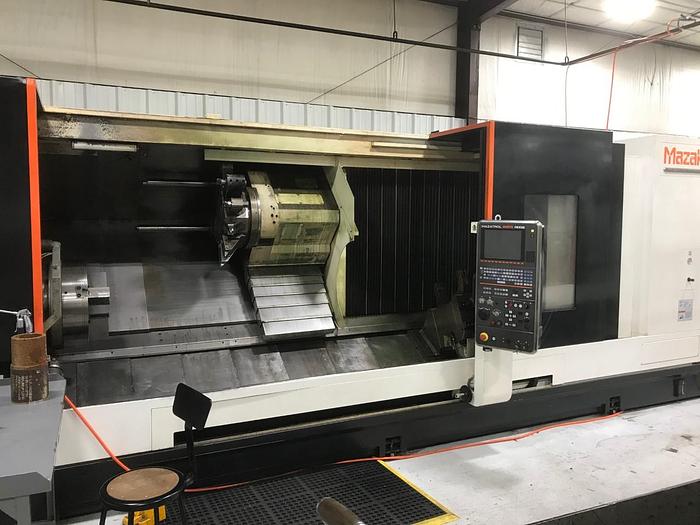

Used 2012 Mazak Slant Turn Nexus 500M / 3000 Multi Axis CNC Lathe

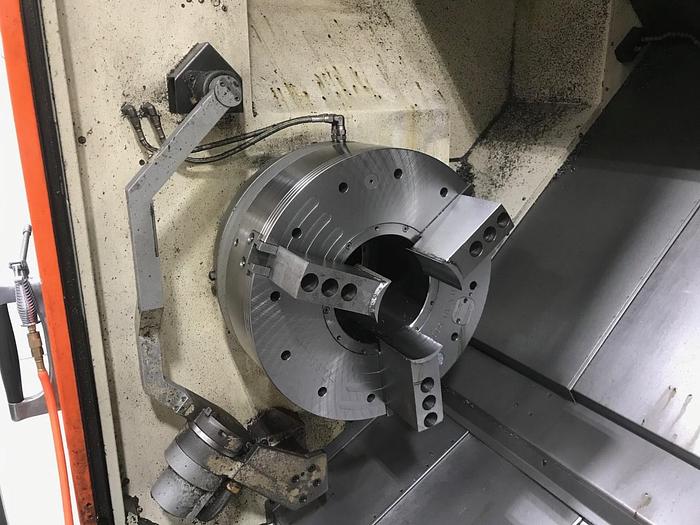

SWING OVER BED ………………………………………………40.9″ TURNING DIAMETER, SHAFT DIAM ………………………………..36″ MACHINING LENGTH …………………………………………………..126.38″ DISTANCE BETWEEN CENTERS …………………………………..126.38″ CHUCK SIZE ………………………………….18″ SPINDLE NOSE ……………………………….….A2 – 15 SPINDLE BORE DIAMETER ………………………………………………….7.28″ SPINDLE SPEEDS ……………………………………………………….….1600 RPM SPINDLE HORSEPOWER ……………………………………………………60 HP SPINDLE TORQUE ………………………………………………………5163 FT. – LBS. X – AXIS TRAVEL …………………………………………………..……18.25″ Z – AXIS TRAVEL………………………………………………………………….. 129.875″ C – AXIS TRAVEL ……………………………………………………………………….0.001 DEGREE RAPID TRAVERSE RATES X1, X2 ……………………………………………………….787 IPM RAPID TRAVERSE RATES Z1, Z2 ……………………………………..945 IPM TURRET CONFIGURATION 1, 2 …………………………………………24 TURRET ROTARY TOOL SPINDLE SPEED……………………………………4000 RPM TURRET ROTARY TOOL HORSE POWER …………………………………….15 HP AC TAILSTOCK QUILL DIAMETER ………………………………………………………………8″ TAILSTOCK TAPER ………………………………………………………………………..MT 6 PROGRAMMABLE TAILSTOCK …………………………………………………..YES TAILSTOCK TRAVEL ……………………………………………126.75″ MACHINE WEIGHT …………………………………………………41,667 LBS. EQUIPPED WITH: MAZATROL MATRIX CNC CONTROL/ 12.1″ COLOR MONITOR M-T CONNECT 18″ SCHUNK 500-230 AIR CHUCK SYSTEM ABSOLUTE POSITIONING ALL AVAILABLE MANUALS AUTO TOOL LENGTH MEASUREMENT CHIP CONVEYOR CHUCK OPEN CLOSE COMPARISON STOP EIA HELICAL TAP CYCLE EIA PATTERN CYCLE EIA/ISO PROGRAMMING EXT-DATA I/O FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK GEOMETRIC HIGH PRESSURE COOLANT HYD. PRESSURE INTERLOCK INVERSE TIME NETWORK INTERFACE PITCH ERROR COMP. POLAR COORDIANTE INPUT PROGRAMMABLE STEADY REST BASE SLU 5.2 HYDRAULIC PROGRAMMABLE STEADY PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6 RE-THREAD ROTATION SCALING SPIRAL STARDARD TOOL PACKAGE WITH 3 ROTARY HEADS THREAD CUT SPEED OVERRIDE THREAD CUTTING FUNCTION THREAD START POINT COMP. TILTED WORKING PLANE VARIABLE 600 SETS
