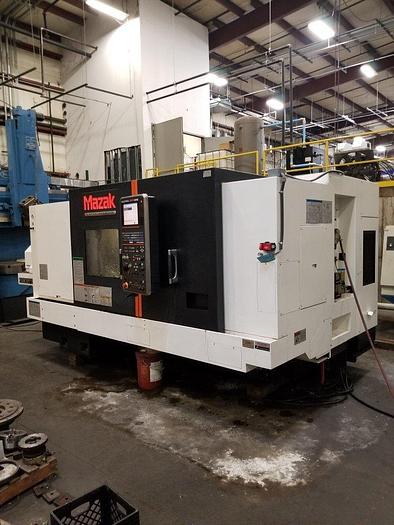

Used 2012 Mazak QTN 450IIM/1000 Multi Tasking CNC Lathe

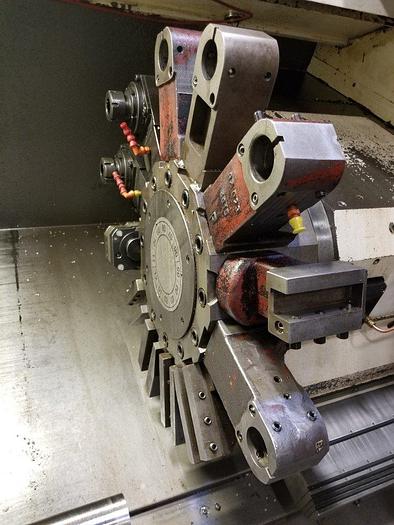

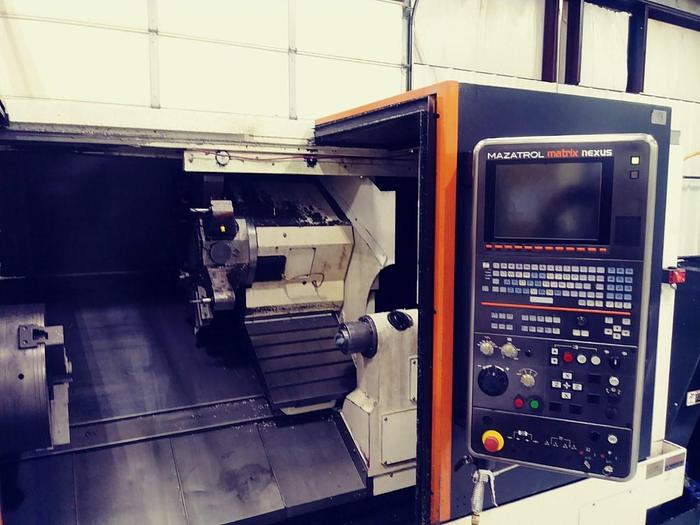

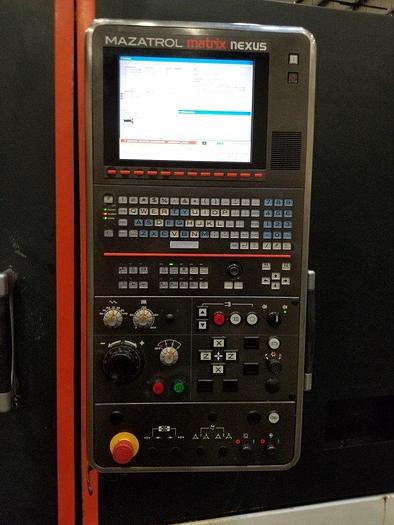

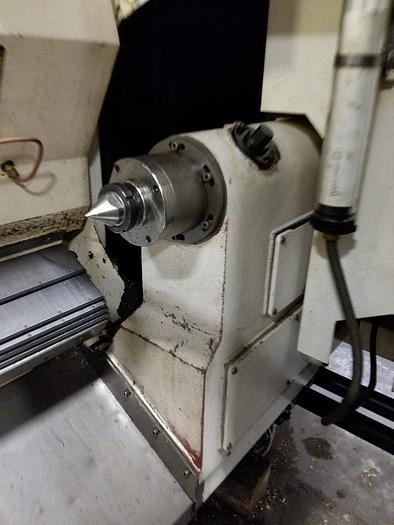

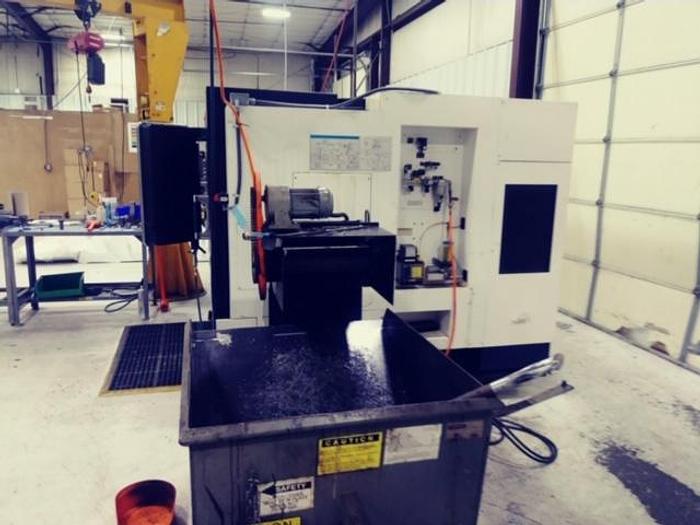

Maximum Swing…………..33.26″ Maximum Cutting Diameter/Length………………….22.83″ / 38.69″ Center Distance…………………43.55″ Maximum Bar Capacity…………………….7.23″ X-Axis Travel……………………13.38″ Z-Axis Travel……………………42.12″ Spindle Nose / Spindle Bore………………………..A2-15″ / 7.23″ Spindle Speed…………………………….2,000 RPM Spindle Motor……………………………..50 HP Rotary Tool Speed / Drive Motor……………………………….4,000 RPM / 10 HP Turret Type …………………………………………………………..12 Sided / 24 Positions Rapid Traverse Rates………………………………1181 IPM Tailstock Quill Diameter / Center……………………..5″ / MT#5 Machine Dimensions LxWxH……………………..144″ x 90″ x 80″ Machine Weight………………………………….20,900 lbs EQUIPPED WTH: MAZATROL MATRIX CNC CONVERSATIONAL CONTROL AUTOMATIC TOOL EYE CHIP CONVEYOR COMPARISON STOP CYLINDER EIA 3D COMP EIA HELICAL TAPPING EIA PATTERN CYCLE EIA/ISO PROGRAMMING FUNCTION EXT DATA I/O INVERSE TIME MULTI TAP TRANSFORMER PITCH ERROR COMPENSION POLAR COORDINATE INPUT RELOCATION DEVICE ROTATION, GEOMETRIC, SCALING SCHUNK EP-460-185 PNEUMATIC CHUCK FRONT SPINDLE BORE DIAMETER 7.23” SPIRAL SYNC TAP ON MILL HEAD G54.1 THREAD TILTED WORKING PLANE USB 2 PORT INTERFACE VARIABLE 600 SETS ALL AVAILABLE MANUALS ALL AVAILABLE TOOL HOLDERS
