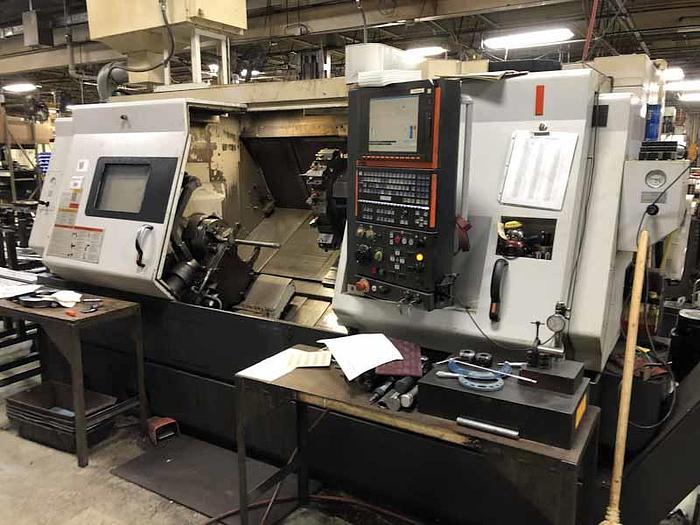

Used 2007 Mazak QTN 300II CNC Lathe

1. Chuck Size……………………………. 12″ 2. Maximum Swing…………………………. 26.77″ 3. Standard Machining Diameter…………….. 10.39″ 4. Maximum Machining Diameter……………… 16.50″ 5. Maximum Machining Length……………………63.02 6. Spindle Motor……………………… 35/30 (30 MIN/Cont) 7. Spindle Bore………………………….. 3.46″ 8. Standard Bar Capacity………………….. 3″ 9. Spindle Speed…………………………. 4000 RPM 10. Spindle Nose………………………….. A2-8 11. Turret Type…………………………… Drum Turret 12. Number of Tools……………………….. 12 13. Tool Shank Height……………………… 1″ 14. Boring Bar Shank Diameter………………. 1.5″ 15. Turret Index Time…………………..2 Sec (One Position) 16. X-Axis Travel…………………………. 8.85″ 17. Z-Axis Travel (Bed Length: 26/48)……….. 63.25″ 18. Rapid Traverse Rates X-Axis…………….. 1,181 IPM 19. Rapid Traverse Rates Z-Axis…………….. 984 IPM 20. Tailstock Center………………………. MT No. 5 21. Machine Height………………………….78.73″ EQUIPPED WITH: • 12”-3 Jaw Hydraulic Chuck. • SMW Hydraulic Steady Rest. • 60” Center Option. • Chip Conveyor. • Programmable Tailstock. • Automatic Tool Eye. • Mist Collector. • Chuck Open/Close Confirm. • 3.5”Floppy Disk Drive. • RS-232 Port for DNC Interface. • Multi Tap Transformer. • Assorted Tooling and Manuals.
