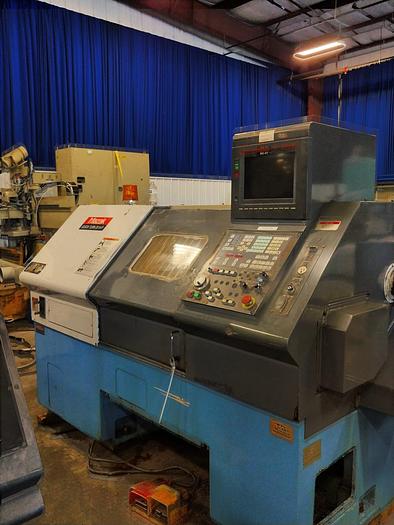

Used 1995 Mazak QT 20HP CNC Lathe

Chuck Dia……………………………………….10″ Maximum Swing………………………….. 17.3″ Maximum Cutting Diameter………………… 10″ Maximum Cutting Length (Universal)……… 19.7″ Maximum Bar Work……………………….. 2.75″ Spindle Nose…………………………… A2 8″ Spindle Bore…………………………… 3.15″ Spindle Speed………………………….. 40 4,000 RPM Number of Speed Ranges………………….. 1 Spindle Horsepower (Cont/30 min)…………. 15/20 (A.C.) Type of Turret…………………………. Drum Number of Tools………………………… 8 X Axis (With 8 position turret)……… 7.1″ Z Axis……………………………. 20.1″ Tailstock: Spindle Center…………………….. MT. #4 Spindle Diameter…………………… 3.15″ Spindle Travel…………………….. 5.1″ Body Travel……………………….. 18.1″ Floor Space: (W X L) Universal…………………………. 60.7″ x 97.2″ Machine Height…………………………. 70.5″ Total Power Required (Machine Only)………. 47.2 KVA Total Weight:…………………………. 9,480 lbs. EQUIPPED WITH: Mazatrol T-Plus Auto Tool Eye Chip Conveyor
