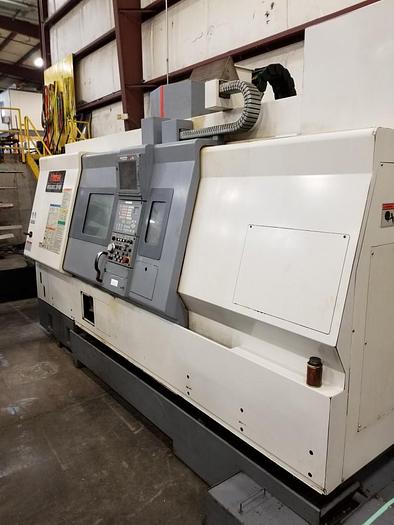

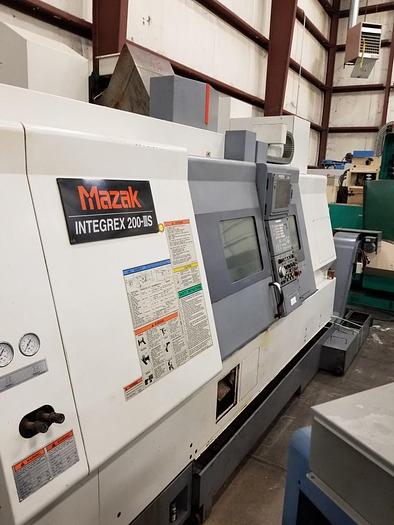

Used 2003 Mazak Integrex 200IIIS Multi-Tasking CNC Lathe

Standard Chuck Dia. Main Spindle (L)…. 10″ Standard Chuck Dia. Second Spindle (R).. 8″ Maximum Swing……………………… 26″ Maximum Swing over Carriage…………. 19.7″ -26″ NOTE: Depends upon workpiece length, tool magazine type and Y axis position Maximum Cutting Diameter: Chucking…… 26″ Maximum Cutting Length……………… 40″ Maximum Distance Between Standard Chuck Faces……………… 41.14″ Spindle Nose………………………. A2-6 Spindle Bore………………………. 2.99″ Maximum Bar Work…. ………………. 2″ Spindle Speed/Ranges……………….. 35 – 5000 RPM / 2 Spindle Index (Programmable)………… 0.0001 Degree Spindle Horsepower (Cont./30 Mins.)….. 20/30 H.P. (A.C.) Spindle Nose………………………. A2-6 Spindle Bore………………………. 2.99″ Maximum Bar Work…………………… 2″x 34.6″ deep from chuck face (2″ thru optional) Spindle Speed/Ranges……………….. 35 – 5000 RPM / 2 Spindle Index (Programmable)………… 0.001 Degree Spindle Horsepower (Cont./30 min)……. 20/25 HP (A.C.) Magazine Capacity………………….. 40 Tools, CAPTO Rotary Tool Spindle Speed/Ranges…….. 12,000 RPM / 1 Rotary Tool Spindle Horsepower (20% ED). 20 H.P. (A.C.) B-Axis……………………………. 225 deg.(.0001 deg. increments) Y-Axis……………………………. +/- 3.15″ X-Axis……………………………. 22.83″ Z-Axis……………………………. 41.1″ Second Headstock W-Axis…………….. 41.34″ Floor Space (WxL)………………….. 87.1″ x 150.39″ Machine Height…………………….. 102.24″ Total Power Required (Machine Only)….. 61.4 KVA NOTE: Actual Machine Main Transformer KVA Rating Will be Greater Machine Weight…………………….. 21,340 lbs. EQUIPPED WITH: Mazatrol 640MT Pro Simultaneous 5 Axes Pkg 213 PSI Thru Coolant/Flood Simul-Flowable 40 CAPTO Tool Magazine Hinge Type Chip Conveyor Auto Parts Catcher Turret Air Blast (Flood Coolant Nozzle) 10″ Thru Hole B210 Chuck – Front 8″ Thru Hole BB08 Chuck Barfeed Interface Only Overload Detection Auto Power Off
