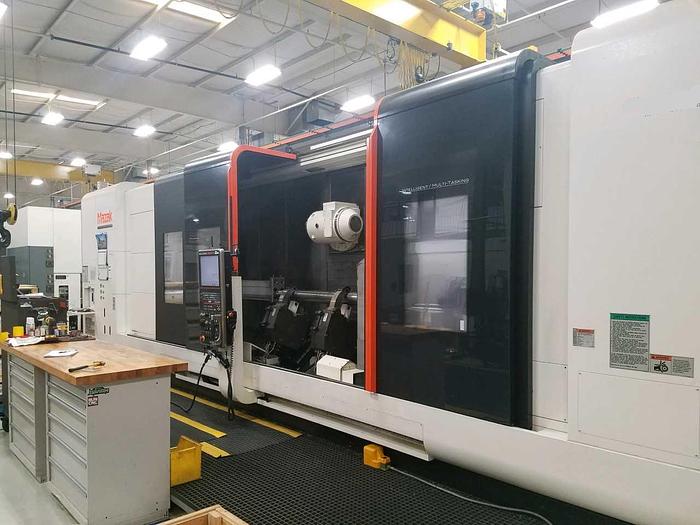

Used 2011 Mazak Integrex e-670HSII x 160″ Multi-Tasking CNC Lathe

Installed New in 2013 MAXIMUM SWING…………………… 42.13″ MAXIMUM Swing Over Cross Slide…………..42.13″ DISTANCE BETWEEN CENTERS……………162.9″ HOLE-THROUGH SPINDLE…………………. 6.69″ SPINDLE NOSE……………………………… A2-11 NUMBER OF SPINDLES……………………..2 SUB SPINDLE BORE DIA…………………….6.69″ SPINDLE SPEED(S)………………………….. 1600 RPM MILLING SPINDLE SPEED (Hi-Torque)………………… 5,000 RPM X-AXIS TRAVEL……………………………….. 40.35″ Y-AXIS TRAVEL………………………………. 26.38″ Z-AXIS TRAVEL……………………………… 162.9″ C-AXIS INDEXING …………………………0.001° B-AXIS ROTATION ………………………..30° LEFT, 210° RIGHT RAPID TRAVERSE X/Y & Z…………………. 1575 IPM WAY SYSTEM ROLLER GUIDES APPROX OVERALL DIMENSIONS……………… 300″ L-R X 130″ F-B X 126″ H APPROXIMATE WEIGHT……………………………. 68344 LBS EQUIPPED WITH: MAZATROL MATRIX II CNC CONTROL 24″ Chuck Main and Rear Hi-Torque Milling Spindle 5000 RPM 80-ATC Manual Pulse Generator – Detachable Turret Air Blast – Flood Coolant Nozzle Scale Feedback System, X,Y,Z Prep for Visual Tool ID Data Management for CAT Magazine Tool Eye for 24″ Chuck Raise Spindle Center Line 130MM SMW Steady Rest Prep for 2 Bases SMW Steady Rest Brackets ( 2 Custom ) W Axis Brake w/ Programmable Work Push Function Niagara Coolant Prep w/ No Pump Increase Coolant Flow Prep to Steady Rest w/ No Pump Preparation for 1000 psi Super Flow Thru Coolant 50/60 HP MAIN MOTOR 50 HP MILLING MOTOR PROGRAMMABLE STEADY REST COOLANT THRU MILLING SPINDLE CHIP CONVEYOR CUSTOMER WILL CONSIDER OFFER
