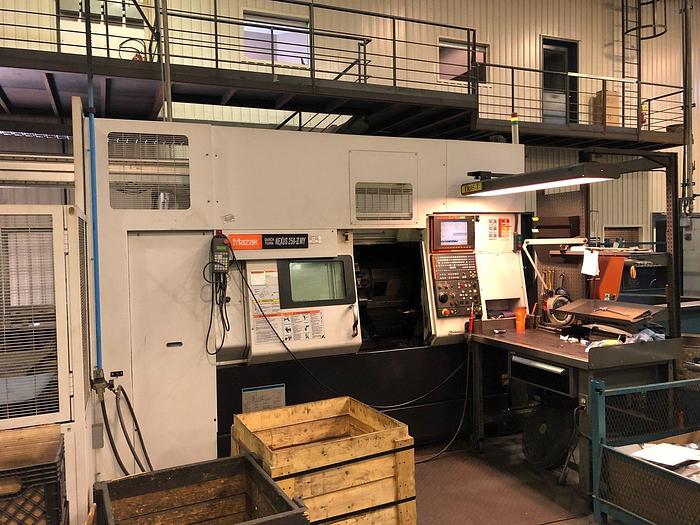

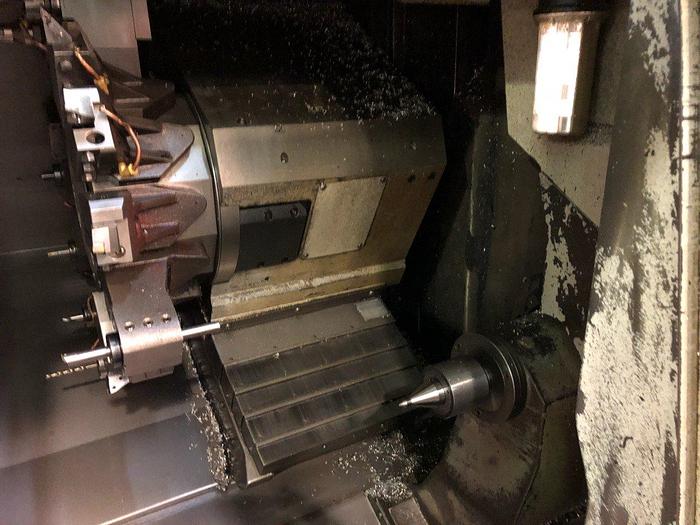

Used 2010 Mazak QTN 250MY2 with GL 100F, 6 Pallet Gantry CNC Lathe

Chuck Size……………………………10″ Maximum Swing…………………………26.57″ Standard Machining Diameter…………….10.87″ Maximum Machining Diameter……………..14.75″ Maximum Machining Length……………….19.85″ Spindle Motor…………………………35 HP Standard Bar Capacity………………….3″ Spindle Speed…………………………4,000 RPM Spindle Nose………………………….A2-8 Spindle Bore………………………….3.46″ Turret Type………………………….. Modified VDI Number of Tools………………………. 12 Tool Shank Height…………………….. 1″ Mill Spindle Power HP…………………. 7.5 (10 min) Mill Spindle Speed……………………. 4,500 RPM Turret Index Time.(1 Position / Full)…… (0.2 / 0.6) X-Axis Travel………………………… 9.” Z-Axis Travel………………………… 22.75″ Y-Axis Travel………………………… +/- 2″ Tailstock Center……………………… MT#5 Machine Height……………………….. 72.44″ Floor Space Requirement……………….. 110.76″ x 75.23″ Weight………………………………. 11,4023LBS Equipped With: Mazatrol Matrix GL 100F, 6 Pallet Gantry, D-3 Hand ATLM Linear Scales on X Chip Conveyor
