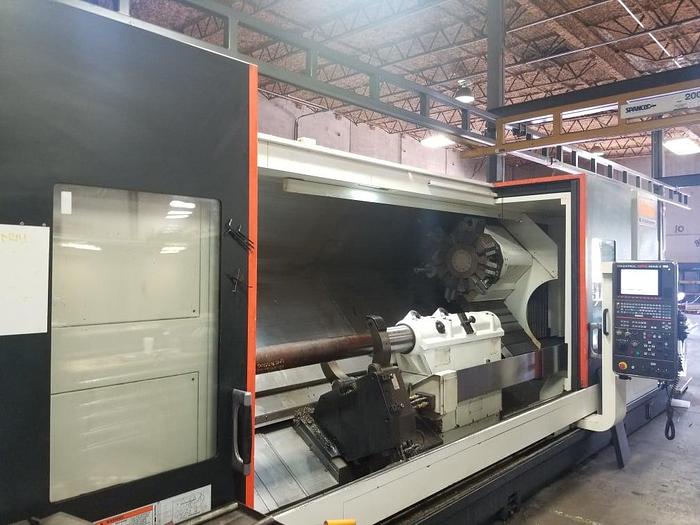

Used 2014 Mazak Slant Turn 550 x 120″ CNC Lathe with 10.8″ Bore

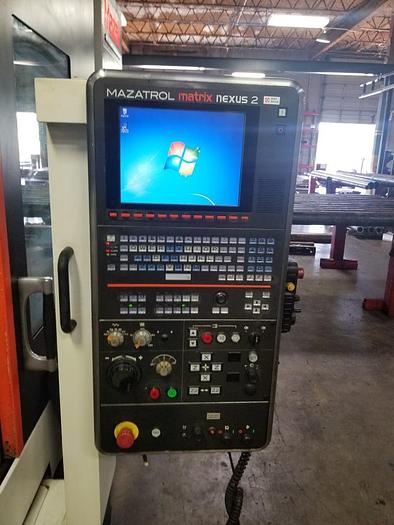

Swing …………….…………………………………………………………..40.94 “ Maximum Machining Diameter …………………………………… 35.8 “ Max. Machining Length ……………………………………………… 123.8 “ X-Axis Travel …………………………………………………………….. 18.25″ Z-Axis Travel ……………………………………………………………… 129.875 “ Number of Spindle Speed Ranges…………………………………..2 Spindle Speed….………….……………………………………………….1000 rpm Spindle Bore ……………………………………………………..………..10.8 “ Spindle Nose………………………………………………………………..JIS A2-20 Main Motor ……………………………………………………………….. 60/50 hp Number Of Tool Positions …………………………………………… 12 Pos. Drum Tailstock Stroke..………………………………………………………….126.75″ Taper…………………………………………………………………………..M.T. No. 6 Machine Height.……………………………………………………….….96.9″ Machine Dimensions……………………………………………………283.9 x 96.1″ Equipped With: Mazatrol Matrix Nexus 2 CNC Control Windows 7 Operating System EIA/ISO Input Function Thread Cutting Function (G33) Re-Threading Function Absolute Positioning System MT Connect Preparation Operation Door Interlock with Lock Switch Hydraulic Pressure Interlock Relocation Device 10.8″ Bore / 1000 RPM Programmable Tailstock (Built in No.6) 2 Position Manual Quill Chuck Open/Close Confirmation Multitap Transformer Hinge Type Chip Conveyor Pratt Burned 24″ 4-Jaw Manual Chuck for 10.8″ Hole – REAR 24″ SMW Autoblock BBN 600/275 Air Chuck for 10.8″ Hole – FRONT SMW K5.1-Z Steady Rest 3.94″ – 16.14″ Capacity
