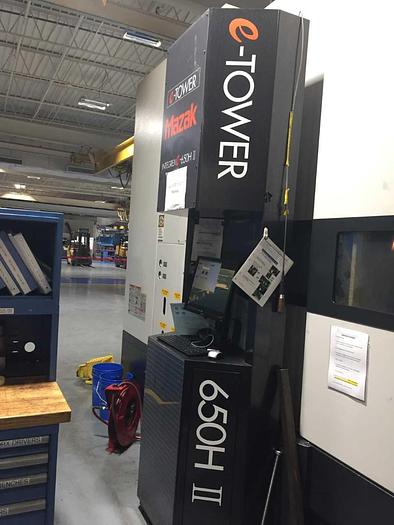

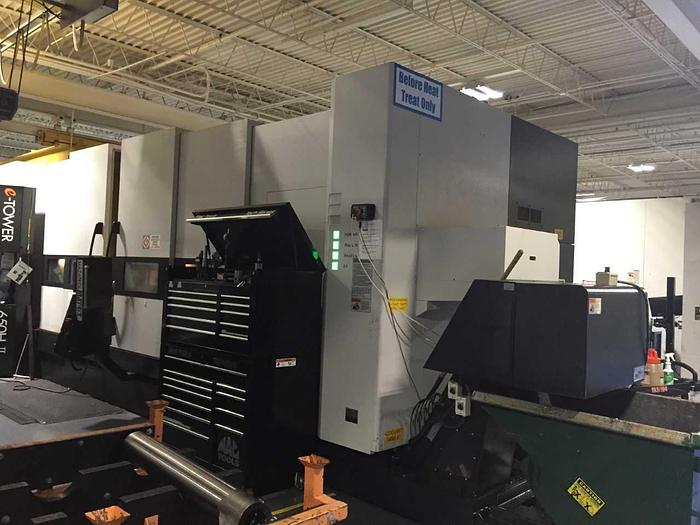

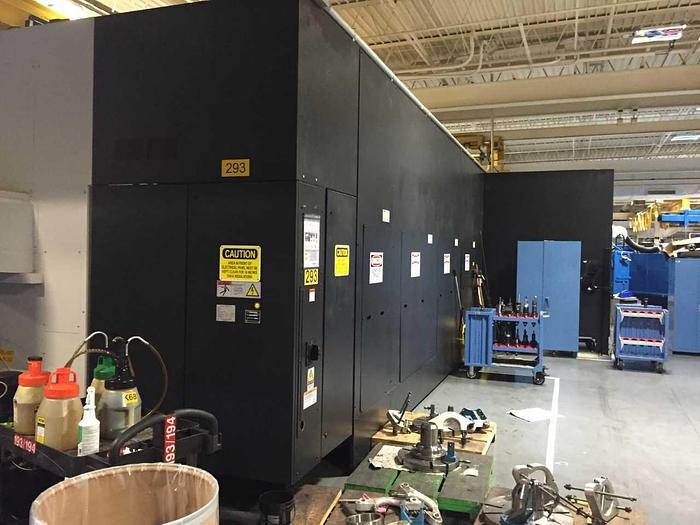

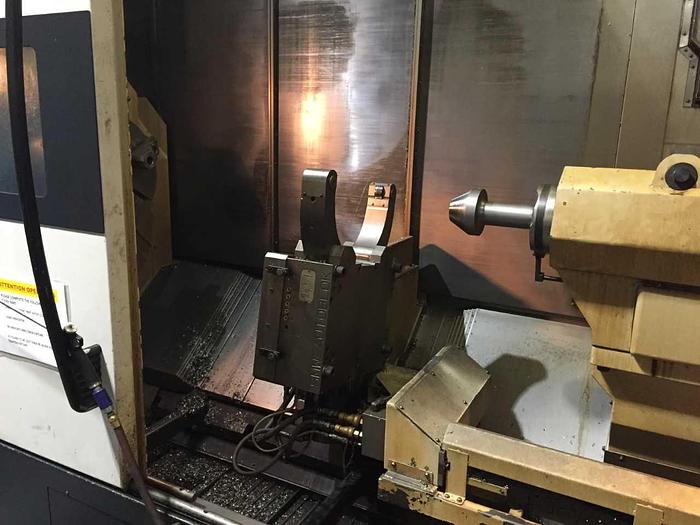

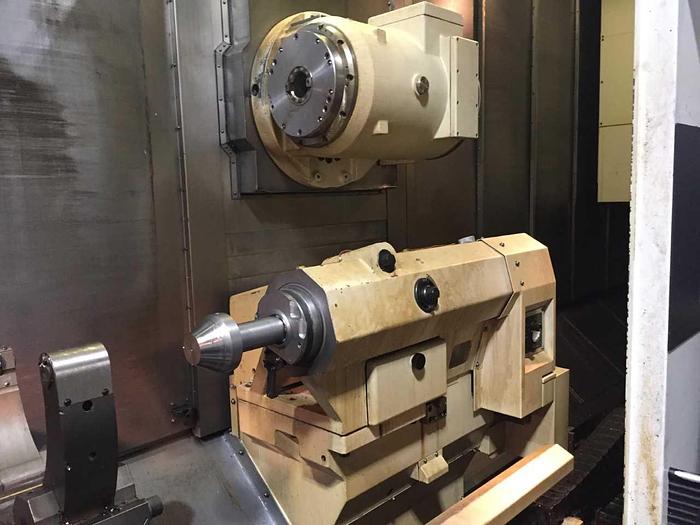

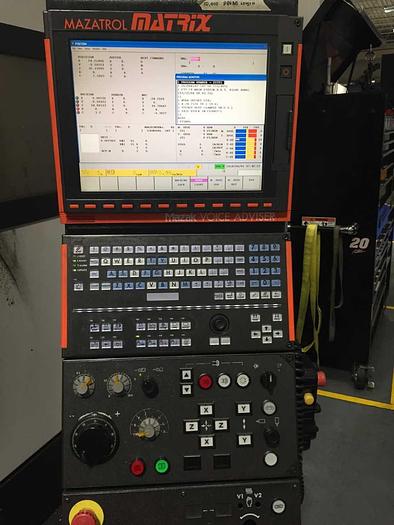

Used 2007 Mazak Integrex e650HII x 160″ Multiaxis CNC Lathe

Maximum Swing……………………… 36.2″ Maximum Swing over Carriage…………. 36.2″ Maximum Cutting Length 160″ Universal… 160″ Spindle Nose………………………. A2-15 Spindle Bore………………………. 10.24″ Spindle Speed/Range………………… 1,000 RPM/2 Spindle Horsepower (Cont/30 mins.)…… 50/60 HP (AC) Spindle Index (Programmable)………… 0.0001 Degree Spindle Horsepower (Cont./30 Mins.)….. 50/60 H.P. (A.C.) Type of Turret…………………….. 1 Position, w/ATC Magazine Capacity………………….. 120 Tools ATC Tool Shank…………………….. CAT 50 Big Plus to Capto 6 adapter for “e” Series Motor Type………………………… IM Spindle Speed/Ranges……………….. 10,000 RPM / 1 Spindle Horsepower (30 Min.)………… 50 H.P. (A.C.) Rotary Tool Coupling Clamp………….. 15 Deg./24 Pos. B-Axis……………………………. 240 Deg. Rotary Tool Coupling Clamp………….. 15 Deg./24 Pos. B-Axis……………………………. 240 Deg. (0.0001 Deg. increments, -30 Deg. to +210 Deg.) B-Axis Coupling Clamp………………. 5 Deg. Index Y-Axis……………………………. +/- 12.8″ X-Axis……………………………. 40.35″ Z-Axis 160″ Universal………………. 162.91″ Spindle Center…………………….. MT #6 Quill Diameter…………………….. 7.09″ Quill Travel………………………. 6.3″ Quill Thrust………………………. 7,920 lbs Body Travel    160″ Universal…………… 153.15″ Floor Space (WxL) 160″ Universal…….. 155″ x 368″ Machine Height…………………….. 154.33″ Machine Weight  160″ Universal……….. 77,200 lbs. EQUIPPED WITH: Mazatrol Matrix Tooleye up to 24″ Chuck 18″ SCA 3 Jaw Grip-Set flat back Chuck W/A-15 Adapter Plate SMW Steady Rest SLUZ 5.1 (3.35″-13.8″) with Base N2 E-Mach Die-Mold PKG W/ Eithernet Operation LASER MEASUREMNET SYSTEM FOR ROTARY TOOL LENGTH CHECK A LONG BORING BAR STOCKER SPECIFICATIONS FOR LONG BORING BARS: Maximum number of bars………… 3 Diameter of long boring bars…… 4.72″ Maximum length of bars………… 39.37″ Maximum tool weight…………… 396.9 lbs. MIST COLLECTOR (CR-1500K) (INCLUDES PREP. WITH POWER) Hi-Pressure Coolant 213 PSI Hi-Pressure Prep to Machine for 1000 PSI Work Measuring System MP700E Chip Removal Coolant for Steady Rest Additional Work Lights 3 Chip Conveyor Side Conspt for 160″ More option.
