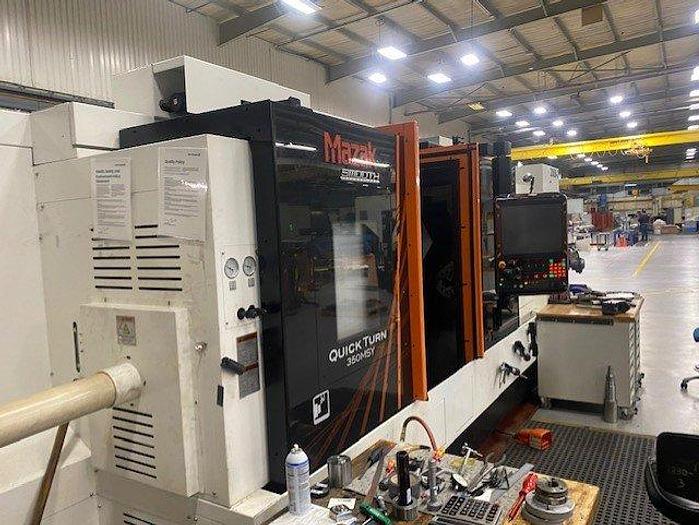

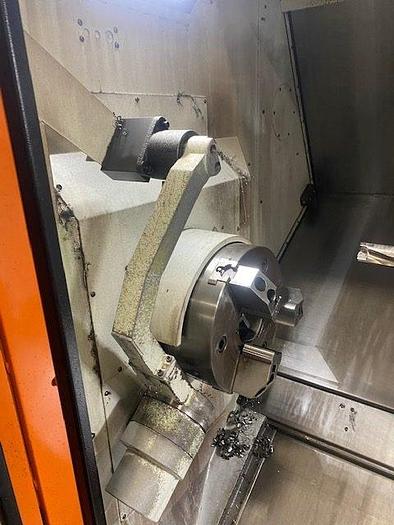

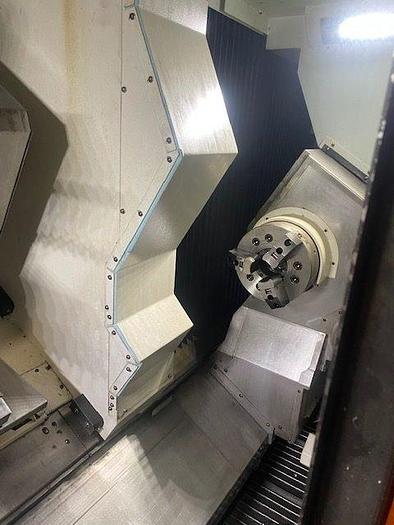

Used 2018 Mazak Quick Turn Nexus 350MSY / 1500

Chuck Size (Main/Second)…………………………………… 12” / 10” Maximum Swing…………………………………………………. 29.5” Standard Machining Diameter…………………………….. 13.2” Maximum Machining Diameter……………………….….. 18.00” Maximum Machining Length (26”/60” bed)…………. 62.41” Bar Work Capacity………………………………………………. 4.00” Max Support Weight (including chuck)………………… 1,433 LBS (main) / 881 LBS (2nd) Main Spindle: Spindle Speed……………………………………………………… 3,300 RPM Spindle Index……………………………………………………….0.0001 deg Index Spindle Nose……………………………………………………….. A2‐11 Spindle Through‐hole Diameter…………………………… 4.41” Spindle Motor (30 min/Cont)..…………………………….. 40/30 HP Spindle Torque……………………………………………………. 596 FT/LBS Secondary Spindle: Chuck Size…………………………………………………………… 10” Spindle Speed……………………………………………………… 4,000 RPM Spindle Nose……………………………………………………….. A2‐8 Spindle Index……………………………………………………….0.0001 Index, Sub Motor Output …………….………………………………………. 35 HP Number of Tools…………………………………………………. 12 Tool Size Turning (Outside/Inside)…………..…………… 1” / 2” Mill Spindle Motor………………………………………………. 10 HP Mill Spindle Speed (CAT 40 )……………………………….. 4,000 RPM Travel X…………….……………………………………………….. 11.00” Travel Y……………….…………………………………………….. 6.00” Travel Z ……………..……….………….………………………….. 3.12”” Travel W…………………………………………………………….. 62.402” Rapid Traverse (X/Y/Z/W)…………………………………… 1181 IPM Machine Height………………………………………………….. 85.4” Machine Width………………………………………………….. 95.3” Machine Length ………………………………………………….220.5” Machine Weight…………………..……………………..……….29,000 LBS EQUIPPED WITH: Mazatrol SmoothG CNC EIA/ISO Package KY Mill T/C Smooth Std. Software Milling Spindle Synchronous Tapping Intelligent Safety Shield Y Axis Control ATLM 118 psi Hi-Powered Coolant 12 Pos Turret VDI 12″ Thru Hole Chuck w/4″ Bore 10″ Thru Hole Chuck w/3.03″ Bore Auto Chuck Open/Close Auto Chuck Jaws Open/Close Main and Sub Re-Threading Function Thread Start Point Compensation Robot Interface (Advance/Ethernet/IP) Chip Conveyor
