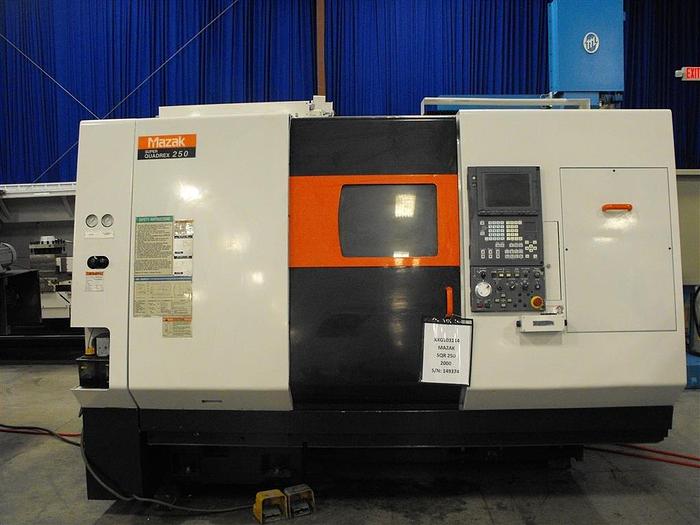

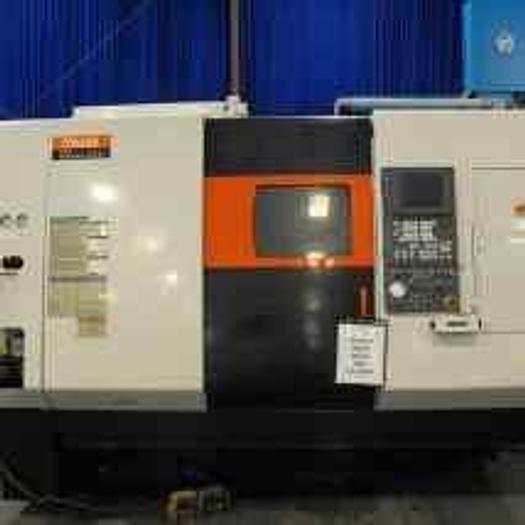

USED 2000 MAZAK SUPER QUADREX 250 CNC TWIN SPINDLE LATHE

Model: Super Quadrex 250 Serial Number: 149374 Maximum Cutting Dia. (Upper/Lower Turret): 14″/10.39″ X Axis Travel: 7.50 X-2 Axis Travel: 5.88 Z Axis Travel: 25.50 Z-2 Axis Travel: 24.88 Power (Spindle): 30 Min: 30 HP Cont: 20 HP Torque (Spindle): Cont: 258 ft/lbs Speeds (Spindle): 35-4000 RPM Speed Ranges (Spindle): 1 Range Nose (Spindle): A2-6 Bore (Spindle): 2.99 Number of Turrets: 2 Turret 1 Type: Drum Turret 1 Positions: 12 Turret 2 Type: Drum Turret 2 Positions: 8 Taper (Quill): MT4 Stroke (Quill): 3.94 Diameter (Quill): 3.90 Body Travel: 20.50 EQUIPPED WITH: Includes: RS232C Interface, Background Tool Path Check, 8 Figure Program Number, Floppy Disk Unit, PCMCIA Interface, IC Memory Card Interface, EIA/ISO Input, Macro Programming with 600 variables, Polar Coordinate Interpretation, Selection of Workpiece Coordinate System and Direct Entry of Drawing Dimensions. Automatic Tool Setting System (Tool Eye): (Tool set-up/Tool Wear Compensation/Tool Breakage Detection) Multi-tap Transformer which accommodates 190-500 Volts Standard Worklight Chip & Coolant Splash Guarding 10″ Hydraulic Thru‑Hole Chuck #B‑210A615 Cylinder S‑1875‑15Y with One (1) Set of Soft Jaws Programmable Tailstock with High Speed Live Center Chip Conveyor Preparation
