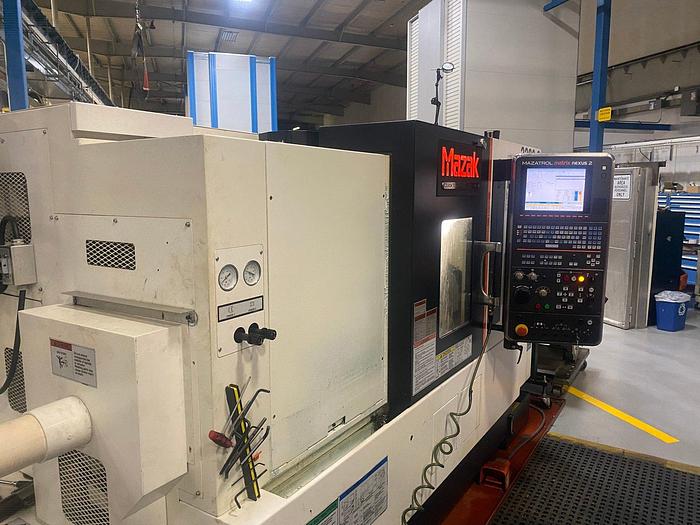

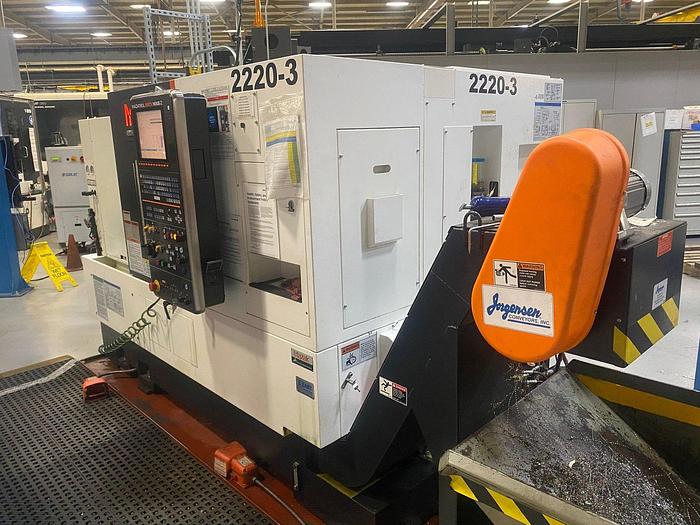

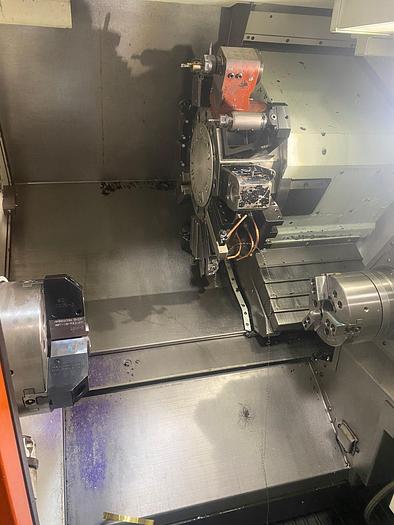

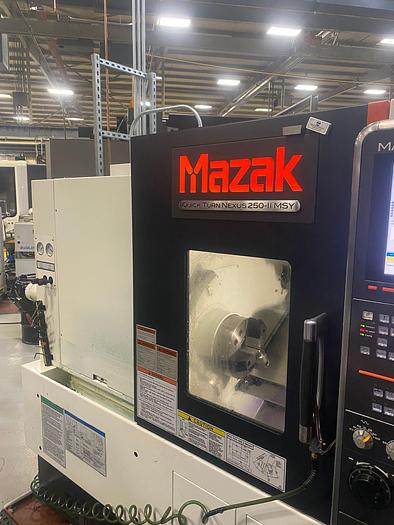

USED 2013 Mazak Quick Turn Nexus 250MSY Multi Tasking CNC Lathe

ONLY 2489 TOTAL CUT HOURS Swing Over Carriage:……………………………….. 14.75 in Machining Diameter:……………………………….. 10.87 in X Axis Travel:………………………………………….. 9.00 in Y Axis Travel:………………………………………….. +/-2.00 in Z Axis Travel:………………………………………….. 22.63 in Torque (Spindle):…………………………………….. Cont: 35 HP Max Speed (Spindle):……………………………….. 4000 RPM Indexing:…………………………………………………. 0.0001 Deg Nose (Spindle):………………………………………… A2-8 Bore (Spindle):…………………………………………. 3.46 in. Bar Dia…………………………………………………….. 3.0 in. Chuck Type:……………………………………………… Hydraulic Turret Type:……………………………………………… Drum Turret Positions:……………………………………….. 12 Power (Subspindle):………………………………….. Cont: 15 HP Torque (Subspindle):…………………………………. 30 Min: 58 ft/lbs Max Speed (Subspindle):……………………………. 6000 RPM Indexing (Subspindle):………………………………. 0.0001 Deg Nose (Subspindle):……………………………………. A2-6 Chuck Type (Subspindle):………………………….. Hydraulic Chuck Diameter (Subspindle):……………………. 6.00 in. Power (Rotary Tool Spindle):……………………… Cont: 7.5 HP Max Speed (Rotary Tool Spindle):………………..4500 RPM Floor Space:……………………………………………… 115.4 x 70.1 in Machine Height:………………………………………… 72.4 in Weight:…………………………………………………….. 11464 lb EQUIPPED WITH: Mazatrol Matrix Nexus Control EIA/ISO Windows 7 Re-Threading Thread Start Point ATLM 59 psi Hi-Power Coolant 10″ 3-JAW CHUCK FOR MAIN SPINDLE 6″ 3-JAW Subspindle Chip Conveyor C-Axis…0.0001 deg (Main / Sub) ALL AVAILABLE MANUALS
