2012 Mazak Slant Turn Nexus 600 / 4000 SOLD

No longer available

2012 Mazak Slant Turn Nexus 600 / 4000 SOLD

Description

EQUIPPED WITH:

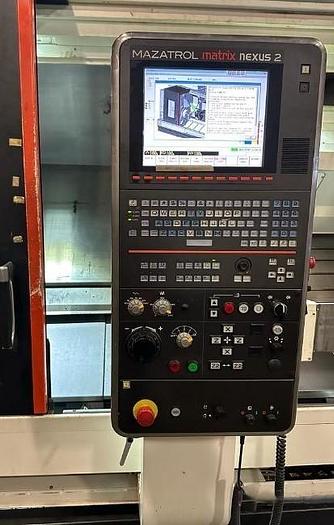

  • Matrix Nexus 2 Control
  • Chip Conveyor

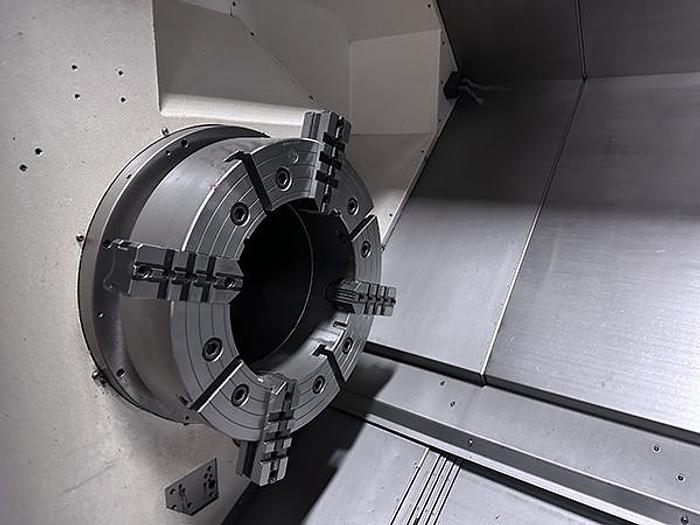

  • Front and Rear Chucks

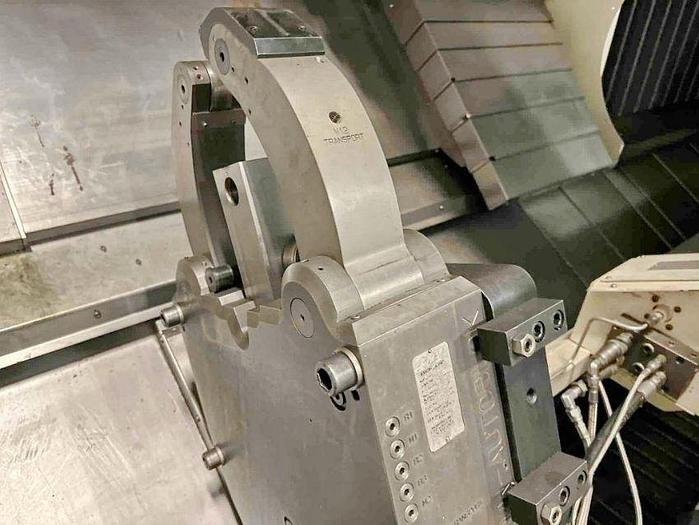

  • SMW Autoblok Programmable Steady Rest
  • Through Spindle Coolant
  • EIA, Spiral, EIA 3D Comp, EIA Herical Tap Cycle, EIA Pattern Cycle
  • Rotation, Scaling, Geometric, Ext Data I/O, Thread, Inverse Time
  • Auto TLM
  • Polar Coordinates Input
  • Comparison Stop
  • 600 Variable Offsets
  • Tilted Working Plane
  • Re-Thread
  • Pitch Error Comp
  • Thread Cut Speed Override
  • Thread Start Point Comp

Specifications

ManufacturerMazak
ModelSlant Turn Nexus 600 / 4000 SOLD
Year2012
ConditionUsed
Stock NumberXL21424GT
Max. Swing40.94"
Max Turning Diameter35.83
Swing over cross slide29.4" w/o Steadyrest
Standard Machining Diameter15.16"
Distance Between Centers157.5"
Bar capacity14.75"
Spindle Speed500 RPM
SPINDLE BORE DIAMETER14.75"
Spindle NoseA2-20
Spindle Motor60/50 HP
Turret Capacity12

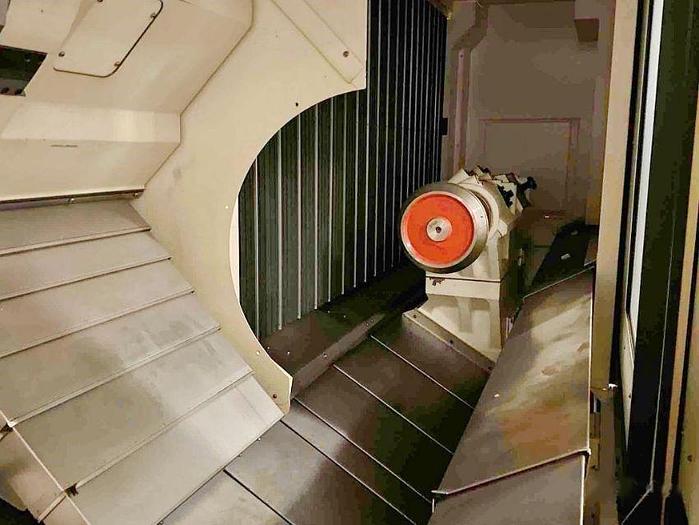

Tailstock CenterMT No. 6
Tailstock Travel160"
