2006 Mazak Mazak QTN 350II x 80"
2006 Mazak Mazak QTN 350II x 80"
Description
EQUIPPED WITH:

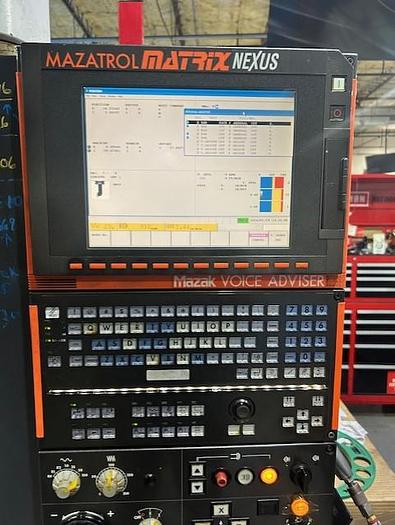

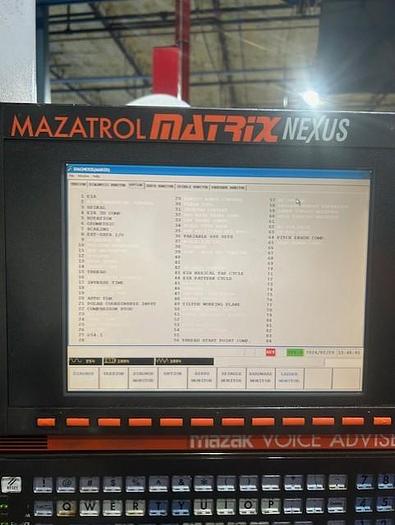

- Mazak Mazatrol Martix
- ATLM
- Chip Conveyor
- 12″ 3-Jaw Hyd. Chuck
- EIA/ISO Input Function
- Operator Door Interlock
- Hydraulic Pressure Interlock
- High Power Coolant, 59 psi

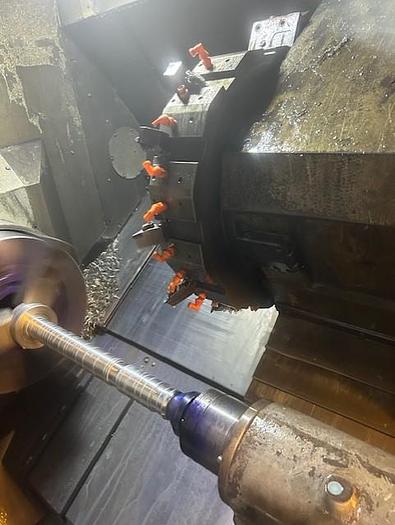

- 12 Position Drum Turret, Bolt on Style Turret
- Tailstock MT #5 w/Built in Live Center
Specifications
| Manufacturer | Mazak |
| Model | Mazak QTN 350II x 80" |
| Year | 2006 |
| Condition | Used |
| Stock Number | XL3032024MW |
| Maximum Swing | 26.77" |
| Standard Machining Diameter | 10.39″ |
| Maximum Cutting Diameter | 16.5" |
| Max Cutting Length | 81.1" |
| MAIN MOTOR | 40/30 MIN/CONT |
| Spindle Bore | 4.4" |
| Bar Capacity | 4.0" |
| Spindle Speed | 3,300 RPM |
| Spindle Nose | A2-11 |
| Turret / Positions | Drum / 12 pos |
| X Axis Travel | 8.85″ |
| Z Axis Travel | 79.13” |
| Tailstock Center | MT. NO.5 |
| Floor Space | 200.98” X 86.90” |
| Machine Height | 85.24” |
| Machine Weight | 24,900 lbs. |
