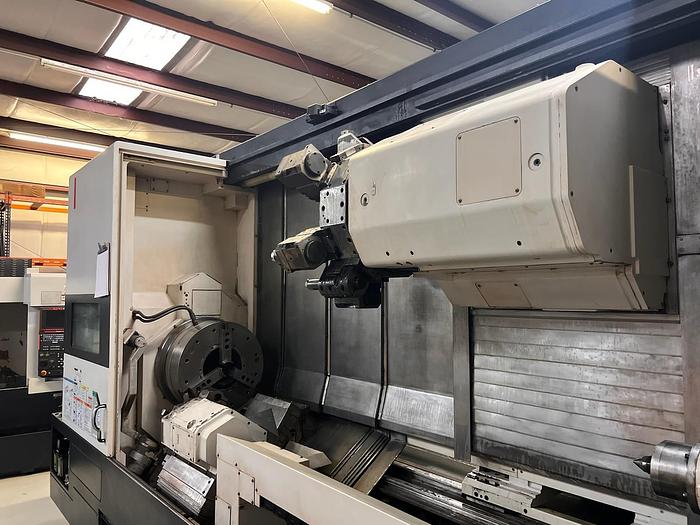

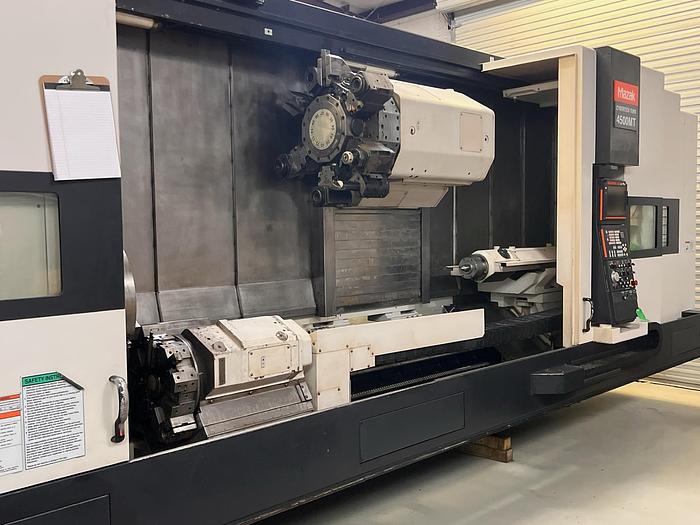

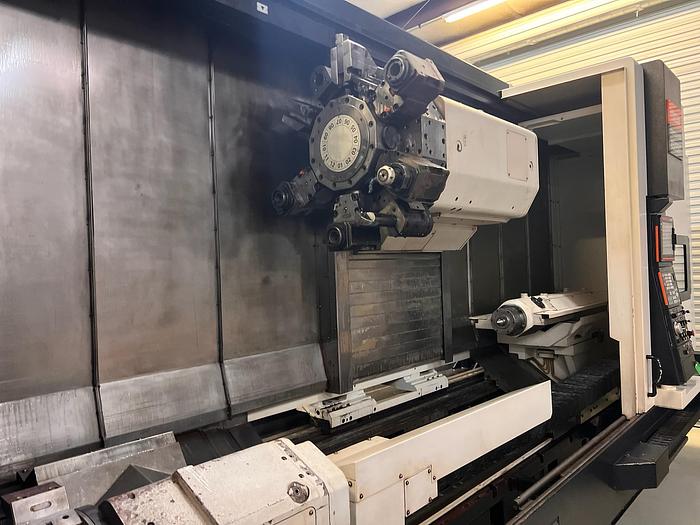

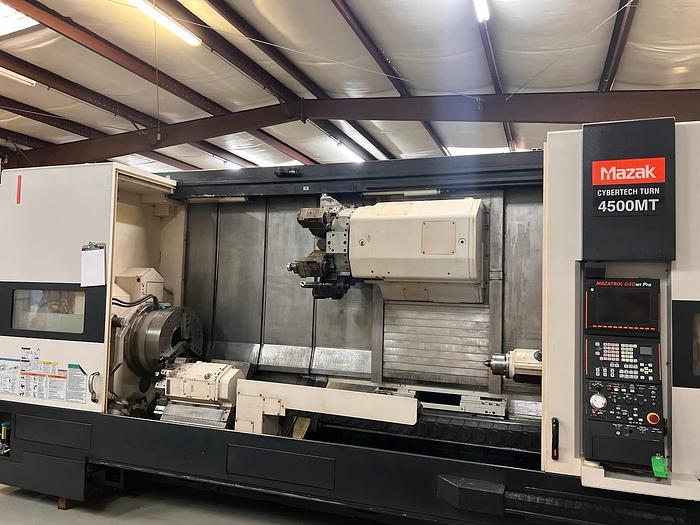

2007 Mazak Cybertech 4500MT x 120" Multi-Tasking CNC Lathe w/ 10.5" Bore
2007 Mazak Cybertech 4500MT x 120" Multi-Tasking CNC Lathe w/ 10.5" Bore
$169,500 (USD)
Description
EQUIPPED WITH: MAZATROL PC-FUSION-CNC 640MT PRO CONTROL N-EIA/ISO OPTION PACKAGE
Mazatrol and EIA/ISO Programming Language
12.1 inch Color TFT Display
Data Input/Output: I C Memory Card Interface (Download/Save Only)
RS-232 C
3.5" Floppy Disc Drive
PCMCIA I/F (2-SLOT, CARD BUS)
Program Registration (HD: 1GB for drip feed EIA/ISO)
(1MB for Mazatrol/EIA)
Variable Feed Rate Control (Mazatrol)
Tool Life Monitoring (Mazatrol)
Tool Wear Compensation (Mazatrol)
Tool Eye Measurement for Upper and Lower Turret (Mazatrol)
Mazak Tapping Tornado (Mazatrol)
8 Figure Program Number (EIA)
48 Alphanumeric Characters for Program Name (Mazatrol)
Barrier Protection (Set via Parameters)
Background Tool Path Check
Machining Navi-Monitor – Prediction/Monitor/Results FRONT - SMW BB-N-600-275-3 Big Bore
REAR - Manual 3 Jaw Chuck with 8" Bore
MAIN SPINDLE BORE- 10.5" 12.1″ COLOR LCD Milling Spindle Synchronous Tapping OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH HYDRAULIC PRESSURE INTERLOCK ROTARY-TOOL SPINDLE SPEED 3000 RPM Main Spindle Motor AC Programmable Tailstock Hinge Type Chip Conveyor MULTITAP TRANSFORMER TOOL EYE (AUTOMATIC) C-AXIS 0.001 DEGREE INCR. 213 PSI/ 2.5 GPM High Power Coolant 213 PSI/ 2.5 GPM PREP FOR REAR CHUCK & CYL & SPIN JOG BUTTON Re-Threading Thread Point Start Comp
Specifications
| Manufacturer | Mazak |
| Model | Cybertech 4500MT Multi-Tasking CNC Lathe w/ 10.5" Bore |
| Year | 2007 |
| Condition | Used |

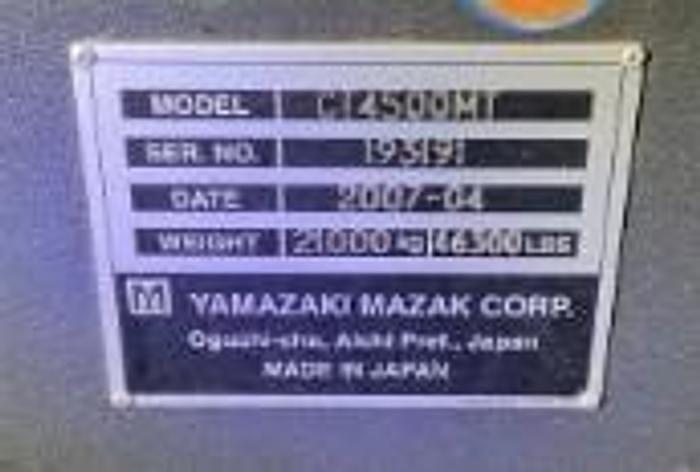

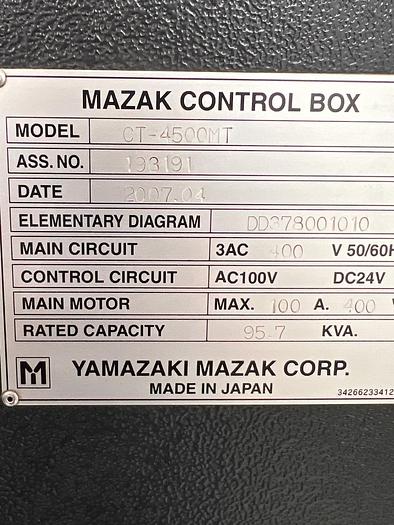

| Serial Number | 193191 |
| Stock Number | XL050324DF |
| CHUCK SIZE | 24″ SMW Air Chuck w/ 10.5" Bore |
| MAXIMUM SWING / OVER CARRIAGE | 33.88″ / 27.5 |
| MAXIMUM CUTTING DIAMETER | 31.88″ |
| MAXIMUM CUTTING LENGTH | 120" (102" for Lower Turret) |
| X AXIS TRAVEL | 21.375″ |
| X2 - Axis Travel | 9.06" Lower Turret |
| Z AXIS TRAVEL | 123.2" (100.4" Lower Turret) |
| C AXIS INCREMENTAL MOVEMENT | 0.001 DEG. (360,000) |
| SPINDLE BORE | 10.5″ |
| SPINDLE SPEEDS – 2 RANGES | 1000 RPM |
| SPINDLE MOTOR HP | 50 HP |
| ROTARY TOOL SPEED | 3,000 RPM |
| ROTARY TOOL HP / SPINDLE TORQUE | 15 HP / 103 FT/LBS |
| NUMBER OF TURRET POSITIONS-ALL LIVE | 12 POS TRT |
| Lower Turret | 8 Postion Turning |
| RAPID TRAVERSE RATES | X / Z 945/ 1181 IPM |
| TAILSTOCK TAPER / MAX. BODY TRAVEL | MT #5 / 100.4″ |
| MACHINE DIMENSIONS | 98" x 283.4" x 110.3" |
| MACHINE WEIGHT | 38,140 LBS. |
