2007 Mazak Integrex 300IV
Sold
2007 Mazak Integrex 300IV
Description
EQUIPPED WITH:

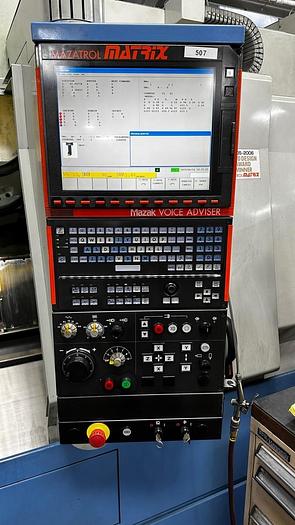

- Mazatrol Matrix Control

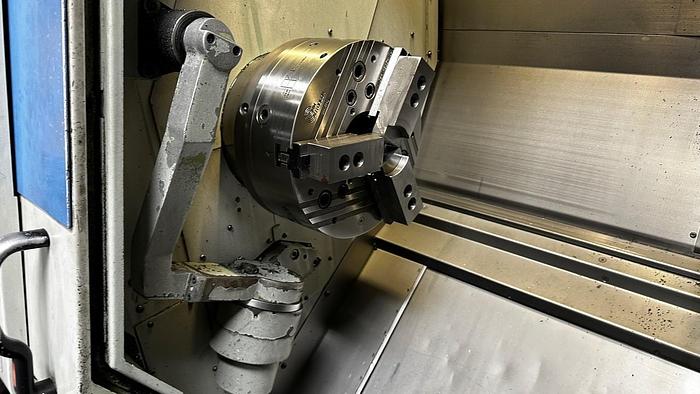

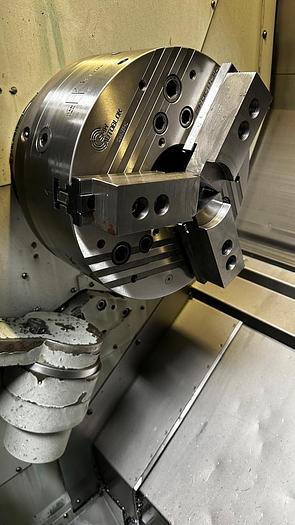

- AUTOBLOK KNCS-N-325-104 3-Jaw Quick Change chuck (Included)

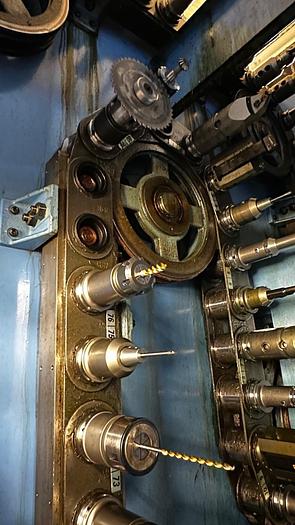

- 80 KM-Tool Magazine
- B-Axis Index 5 Degree (Coupling Clamp)
- Programmable Tailstock (Built-In Center)

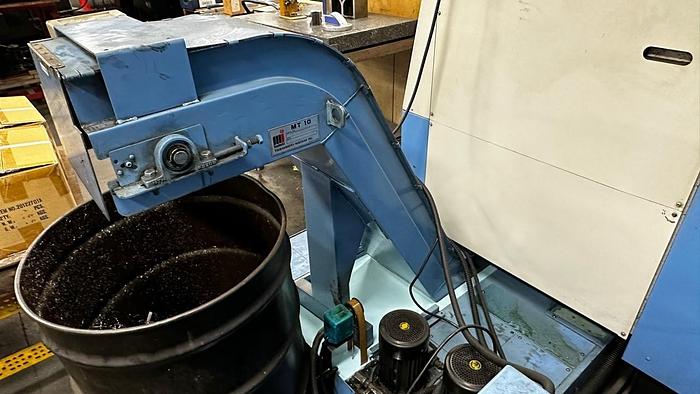

- Chip Conveyor Side Disposal (Hinge) 1000U
- Tool Eye (Automatic)
- Windows XP Operating System
- Overload Detection System
- Chuck Open/Close Confirmation
- Work Measuring System OMP40 (1st Spindle H/V Only)
Specifications
| Manufacturer | Mazak |
| Model | Integrex 300IV |
| Year | 2007 |
| Condition | Used |
| Stock Number | XL80224KD |
| Maximum swing | 30" |
| Maximum Swing using Y-Axis | 26" - 30" |
| Maximum Swing Over Cross Slide | 30" |
| Center Distance | 40" |
| Spindle Nose | A2-8 |
| Bar capacity | 3.0" |
| Spindle Bore | 3.46" |
| Main Spindle Speed | 4000 RPM |
| Spindle Index (C-Axis) | 0.0001 |
| Main Motor | 30/40 HP (A.C.) |
| Turret-positions | 80 ATC Station |
| ATC Tool Shank | KM |
| Rotary Tool Spindle Speed | 12,000 RPM |
| Rotary Tool Spindle Motor | 25 HP AC |
| B-Axis Travel | 225 degrees |
| X-Axis Travel | 24.8" |
| Y-Axis Travel | +/- 4.53" |
| Z-Axis Travel | 43.11" |
| Tailstock Center | MT #5 |
| Tailstock Body Travel | 41.54" |
| Floor Space | 157.1"L x 91.26"W x 114.6"H |
| Weight | 26,460 LBS |
