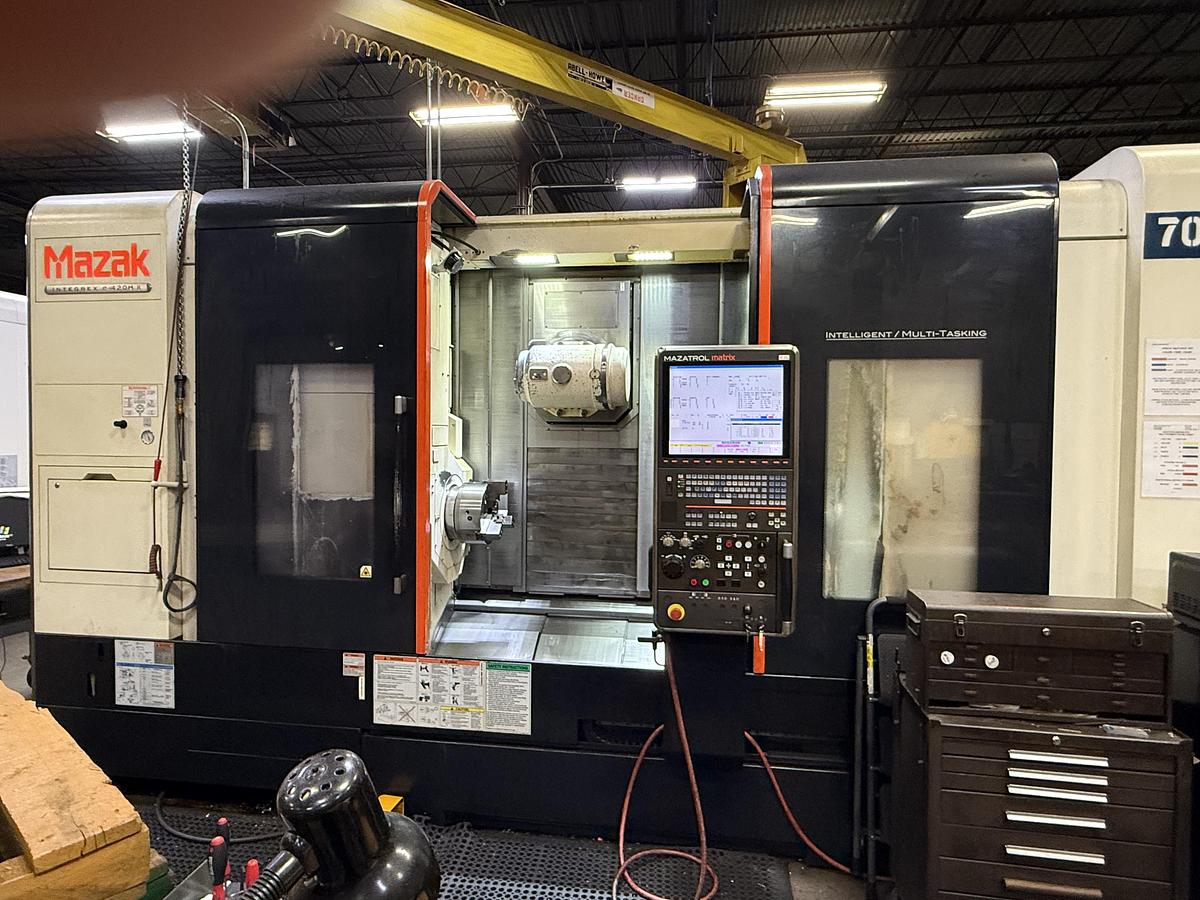

2011 Mazak Integrex E-420H II Multi-Tasking CNC Lathe

2011 Mazak Integrex E-420H II Multi-Tasking CNC Lathe

or
Call 859-653-9060

Description

EQUIPPED WITH:

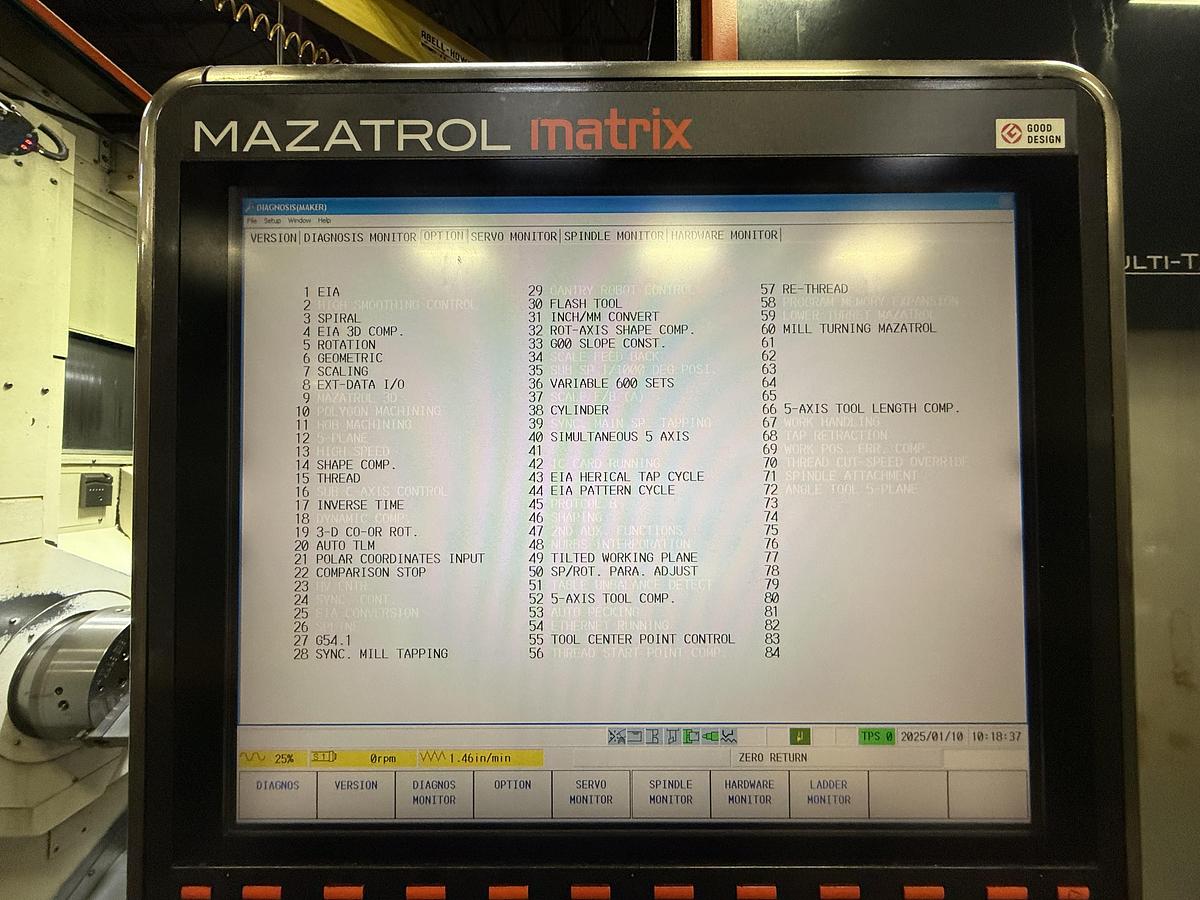

Mazatrol Matrix

10" 3-Jaw Hydraulic Chuck

Shape Comp

Threading

Re-Threading

3-D Coordinate Rotation

Auto ATLM

Synch Mill Tapping

Chip Conveyor

Full complement of Tooling

Specifications

ManufacturerMazak
ModelE-420H II
Year2011
ConditionUsed
Stock NumberXL050525 MWKT
Max Swing26.38"
Max Swing over Carriage26.38"
Max Cutting Dia26.38"
Machining Length54.43"
Max Bar Dia3.03"
Main Spindle Speed25 ~ 4000 RPM
Spindle Index0.0001 deg
Main Spindle Power30/40 HP
Magazine Capacity120
Rotary Spindle Speed35 ~ 12000 RPM
Rotary Spindle Motor29.3 HP
B - Axis240 Deg. (0.0001 Deg. increments, -30 Deg. to +210 Deg.)
X - Axis33.27"
Y - Axis16.54"
Z - Axis54.65"
Floor Space133.66" W x 199.61" L x 116.14" H
Weight44092 LBS
