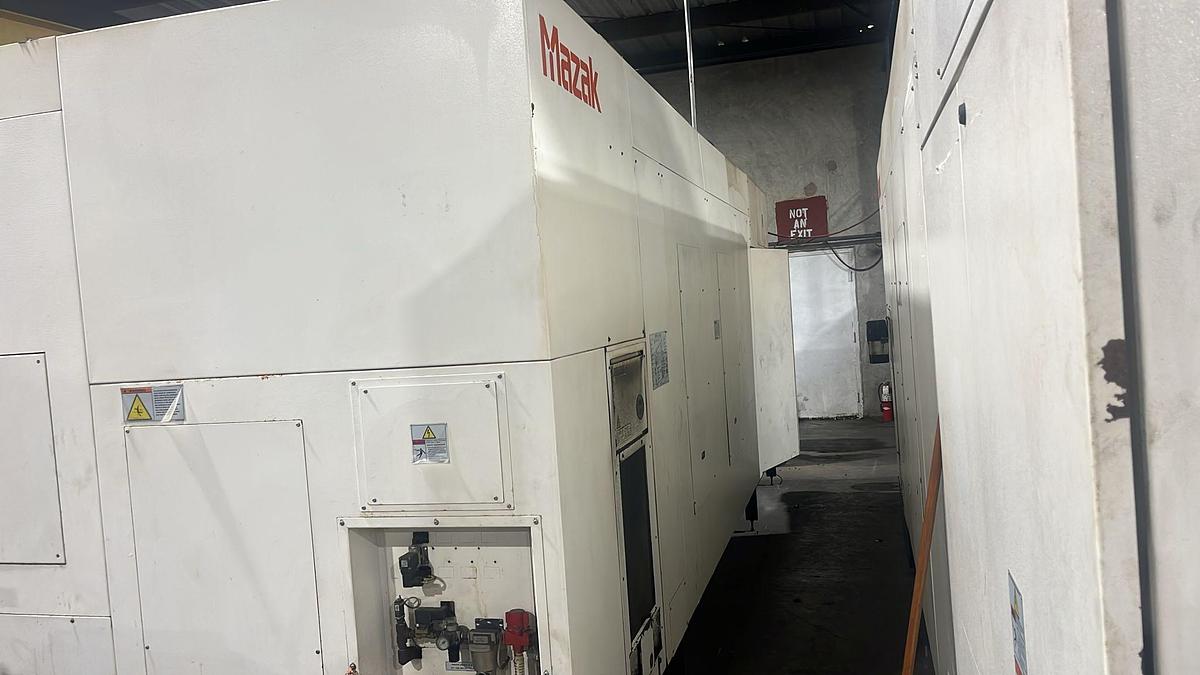

2012 Mazak Slant Turn Nexus 500

Max. Swing……………………40.94″

Max.  Mach. Dia…………….35.8″

Max. Mach Length…………80″

X Axis Travel………………….18.25″

Z AxisTravel…………………..85.25″

Spindle Speed…………………1600 rpm

No. of Speed Ranges…………2

Spindle Nose……………………..JIS A2-15

Spindle Bore……………………….7.26″

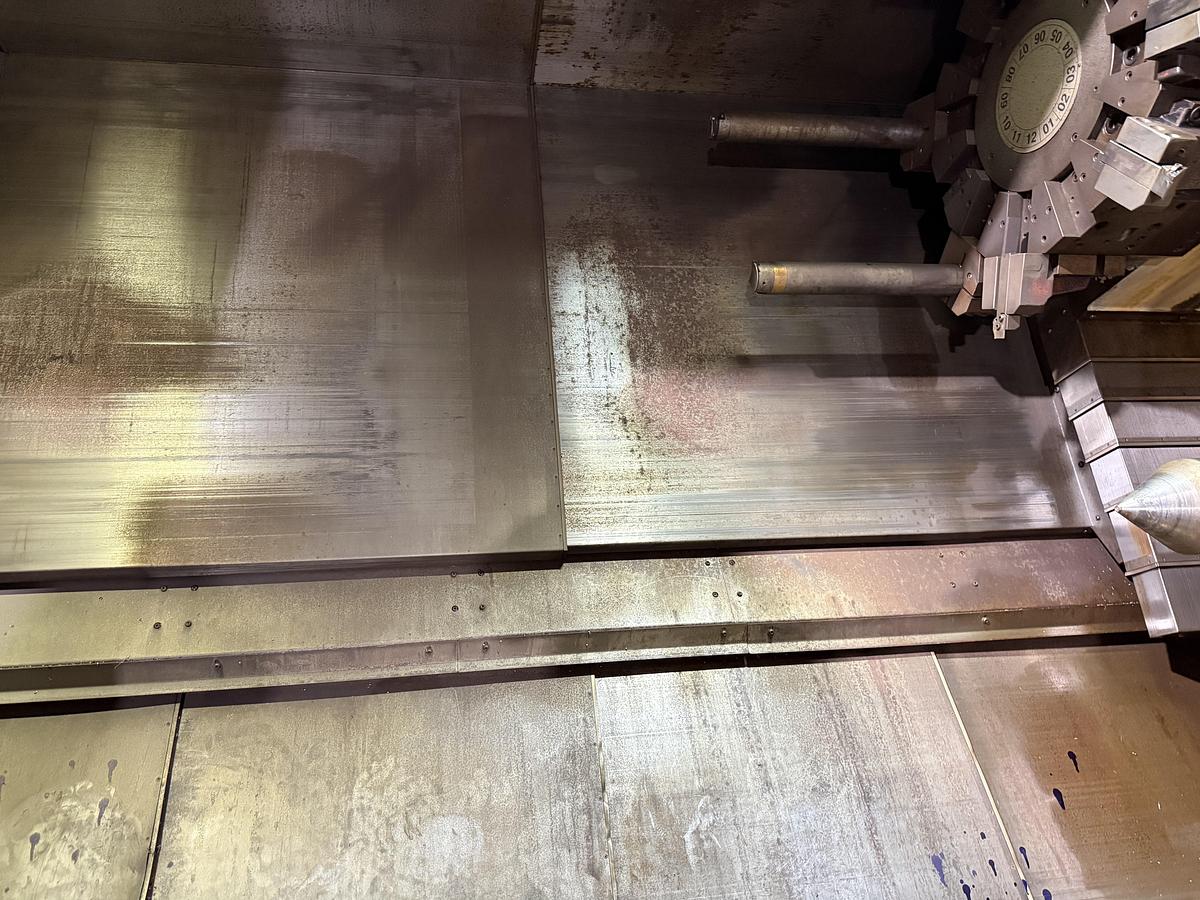

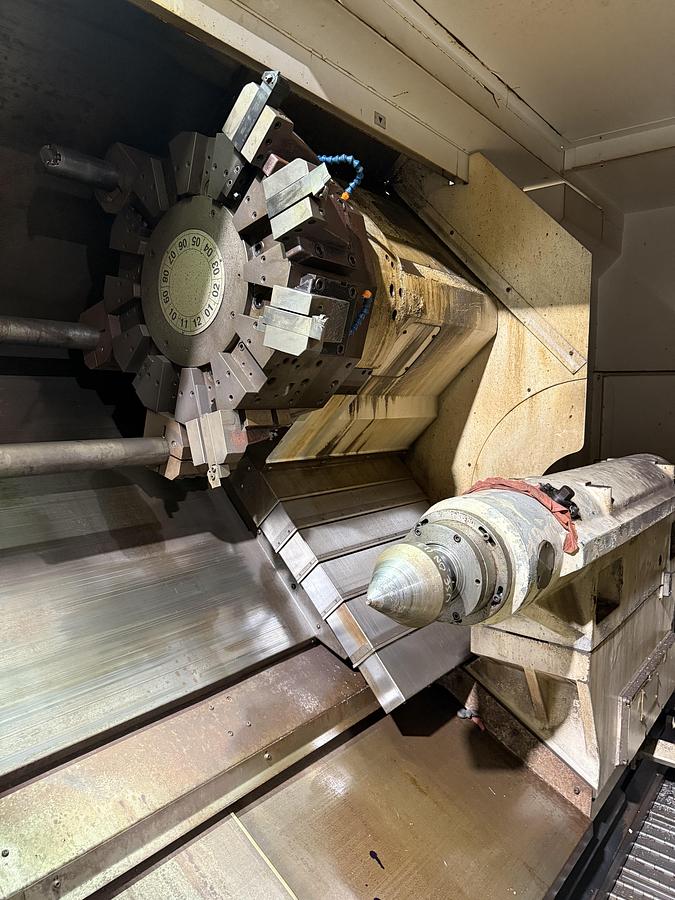

Turret Type…………………………12 Pos. Drum

Tailstock Stroke……………………82.125″

Taper…………………………………..M.T. No. 6

Spindle Motor…………………….60HP / 50HP

Machine Height………………….96.9″

Machine Dimensions…………..239.2″ x 96.1″

EQUIPPED WITH:

Matrix Nexus 2 CNC control Mazatrol

18″ Schunk 500-230 Air Chuck

Auto ATLM

EIA and EIA 3D Comp

Spiral, Rotation, Geometric

Scaling, Ext-Data I/O

Thread

Re-Thread

Inverse Time

Polar Coordinates

Comparison Stop

G54.1

Variable 600 Sets

EIA Herical Tap Cycle, EIA Pattern Cycle

Tilted Working Plane

Pitch Error Comp.

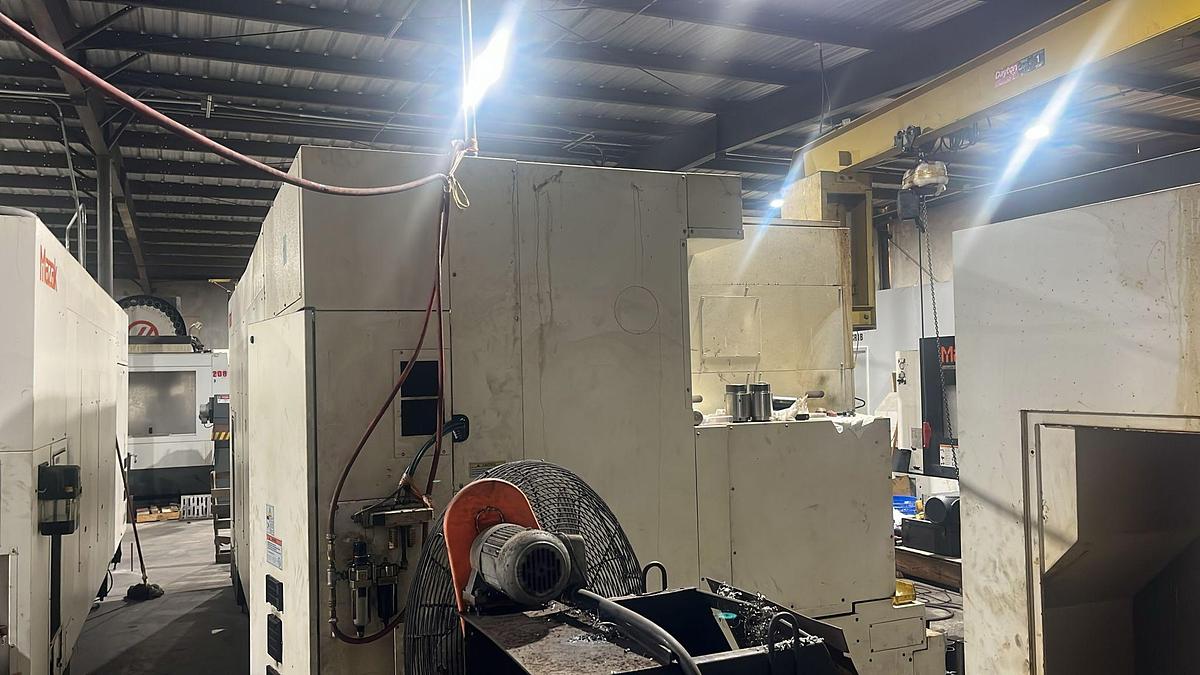

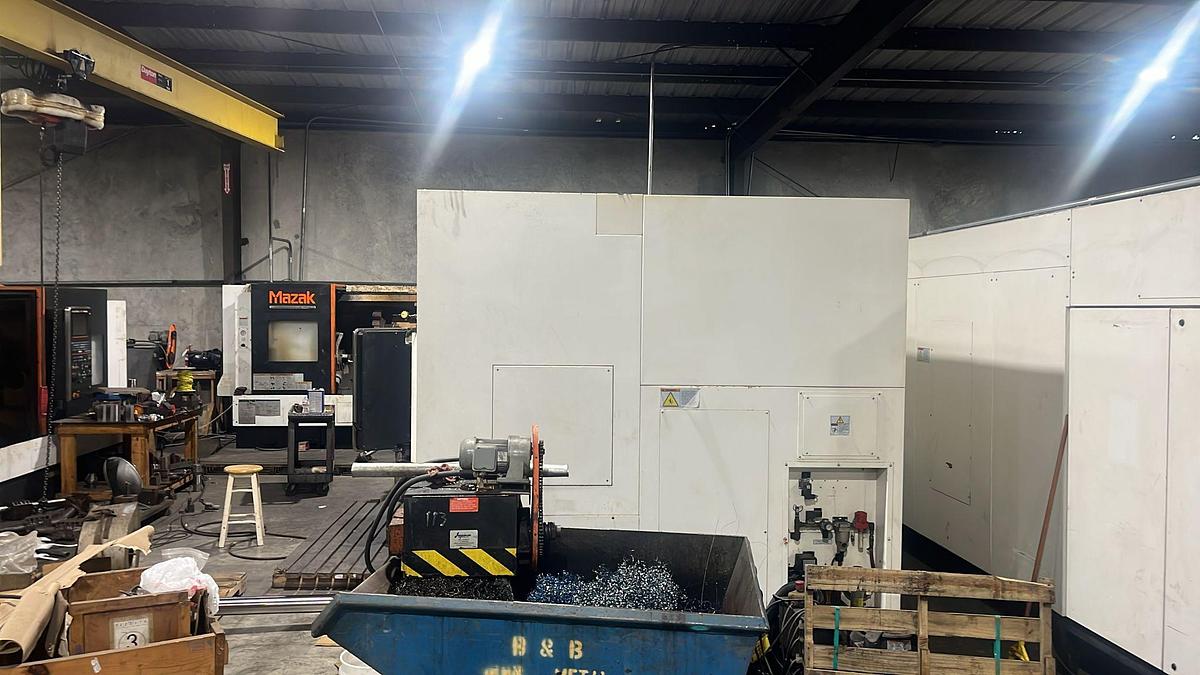

Chip Conveyor
