2001 Weiler E90 x 177" Oil Country CNC Lathe

2001 Weiler E90 x 177" Oil Country CNC Lathe
Description
The 2001 Weiler E90 x 177" Oil Country CNC Lathe offers robust construction and precision for demanding applications. This used CNC lathe is equipped with a Weiler Control (Siemens) system, ensuring reliable performance and accuracy. A chip conveyor is included for efficient handling of waste, while a 31" chuck with a 10" bore provides substantial capacity for handling large workpieces. The lathe supports threading cycles and features both front and rear chucks for versatility. With a maximum swing of 35.40" and a swing over the cross slide of 20.9", this model accommodates larger components effectively. The distance between centers stretches 177", offering significant support for lengthy workpieces. The spindle bore measures 10.3", and spindle speeds range from 1 to 700 RPM, allowing flexibility in various machining tasks. Powered by a drive capable of 60 HP at 60% duty cycle and 49.6 HP at 100%, the lathe can handle substantial workloads. Additional features include a tailstock quill taper of MT 6, further underlining its suitability for demanding oil country applications. This Weiler lathe combines durability and precision, making it an excellent option for industries requiring heavy-duty lathe functions.
Specifications
| Manufacturer | Weiler |
| Model | E-90 x 177" |
| Year | 2001 |
| Condition | Used |
| Stock Number | XL02132026MW |
| Maximum swing | 35.40 |
| Swing over Cross Slide | 20.9″ |
| Distance Between Centers | 177″ |
| Spindle Bore | 10.3″ |
| Spindle Speed | 1 ~ 700 RPM |
| Drive Power at 60 %/100 % Duty Cycle | 60/49.6 HP |
| Tailstock Quill Taper | MT 6 |
Equipped With
EQUIPPED WITH:

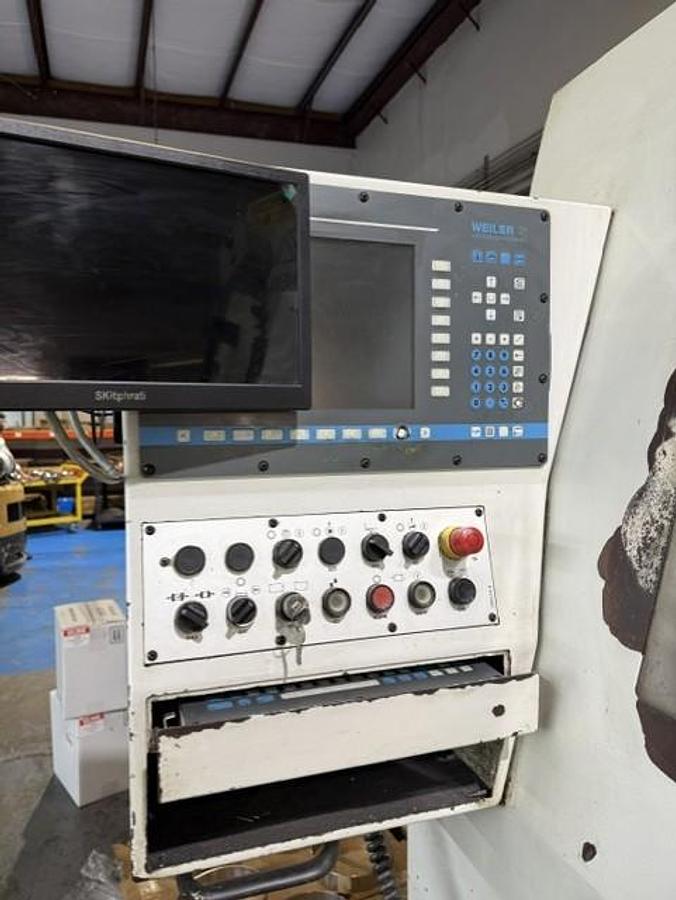

Weiler Control (Siemens)
Chip Conveyor

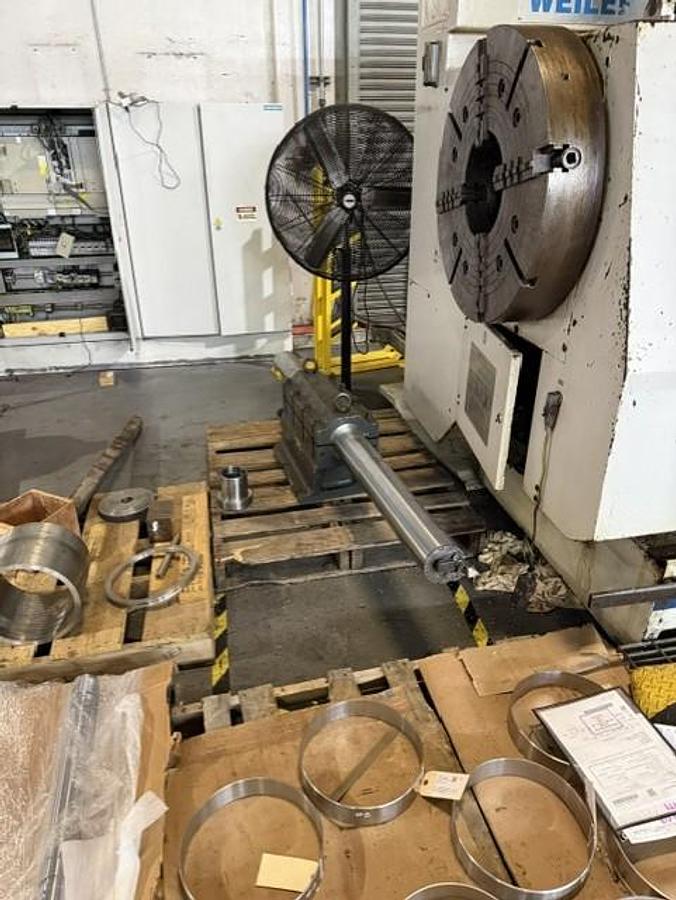

31" Chuck with 10" Bore
Threading Cycle
Front and Rear Chucks
