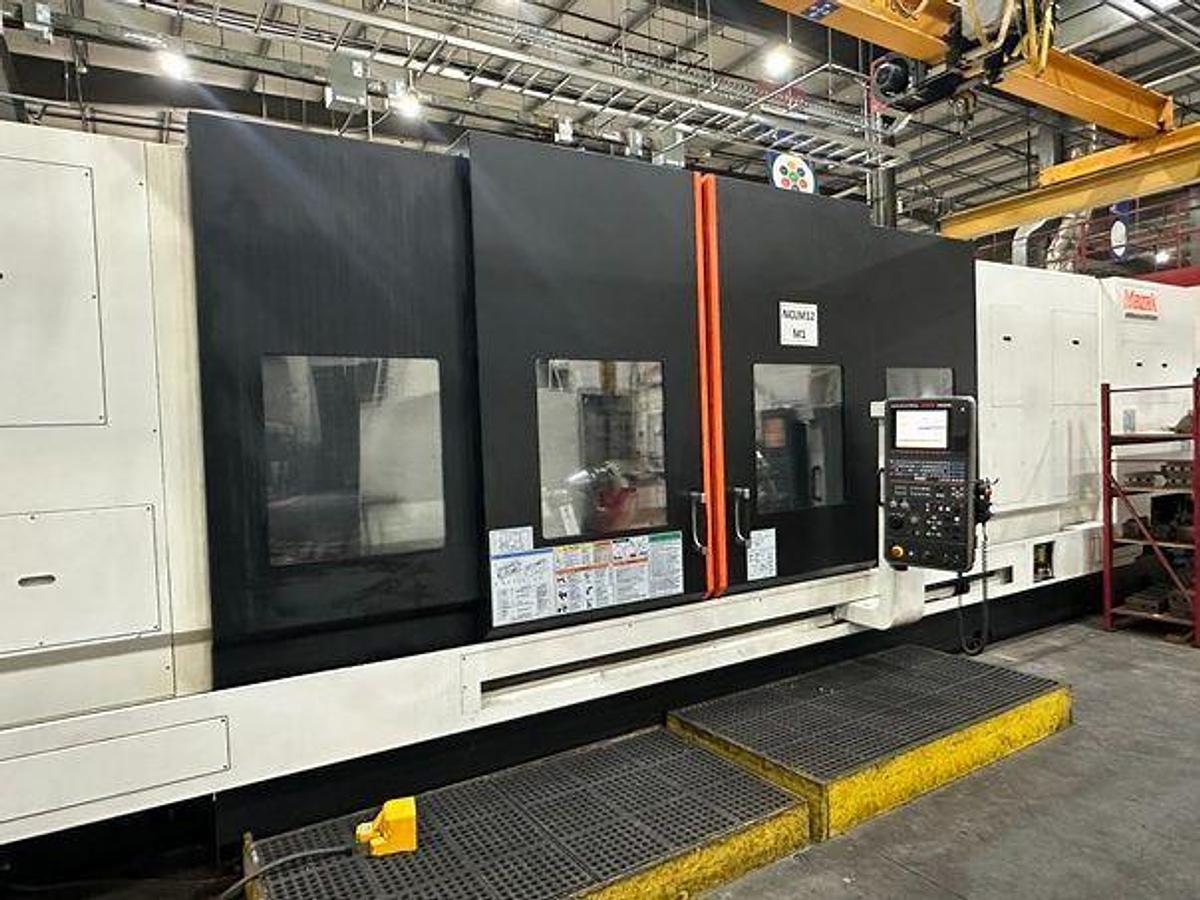

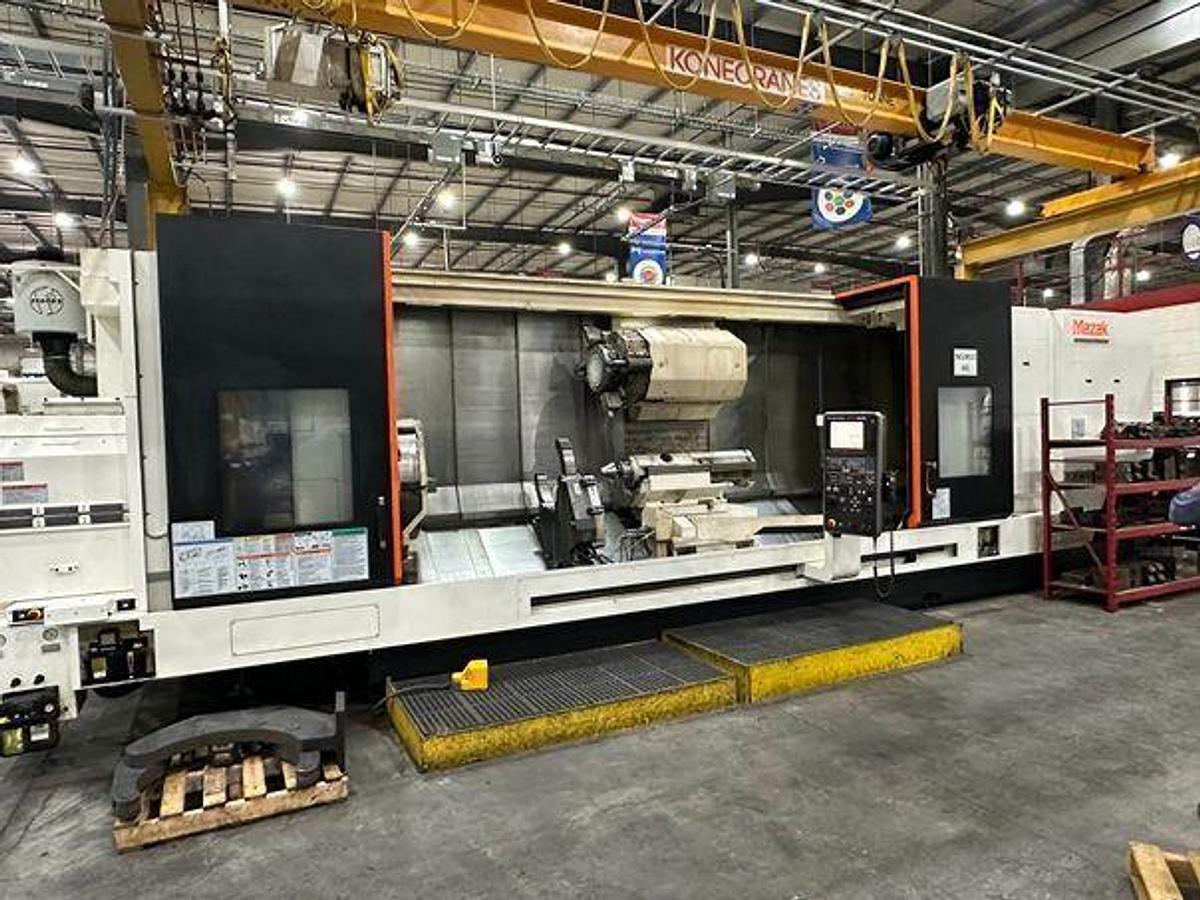

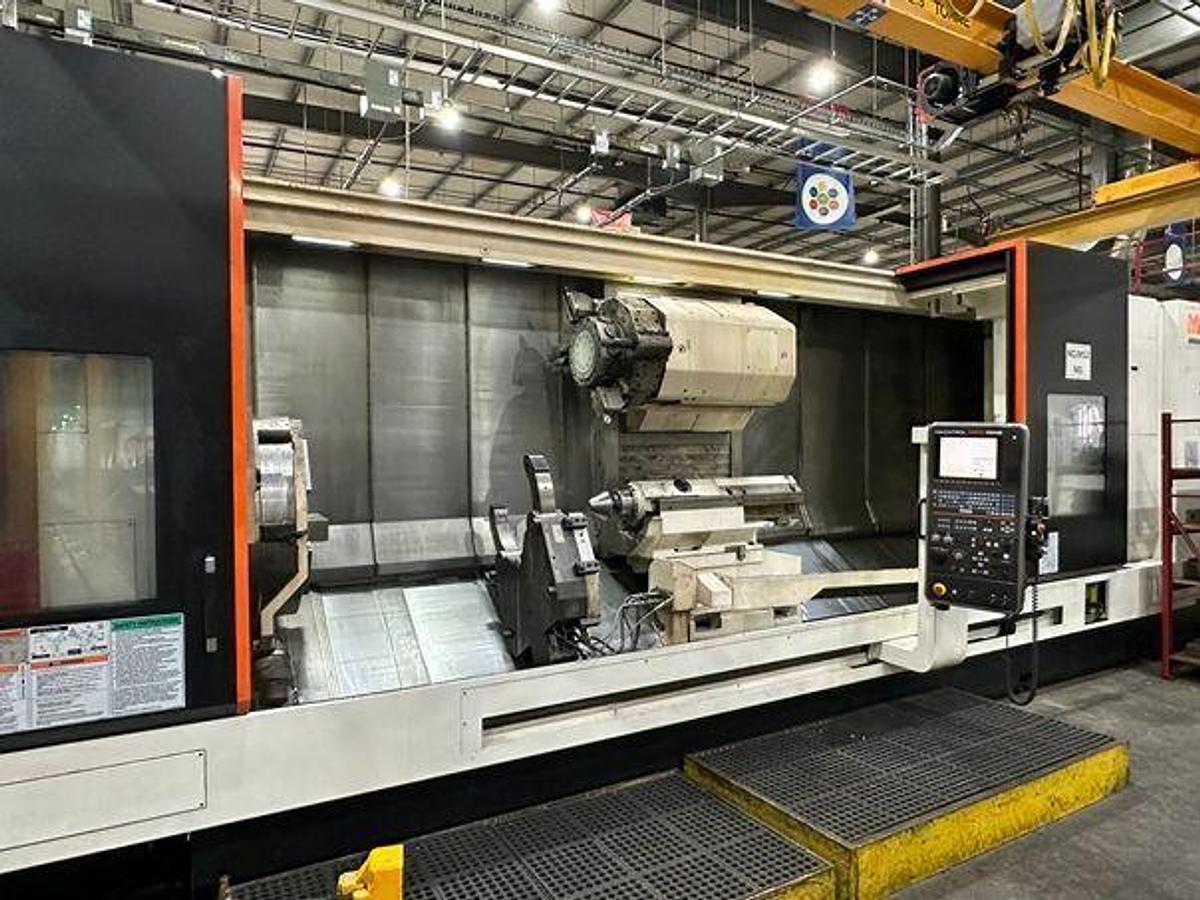

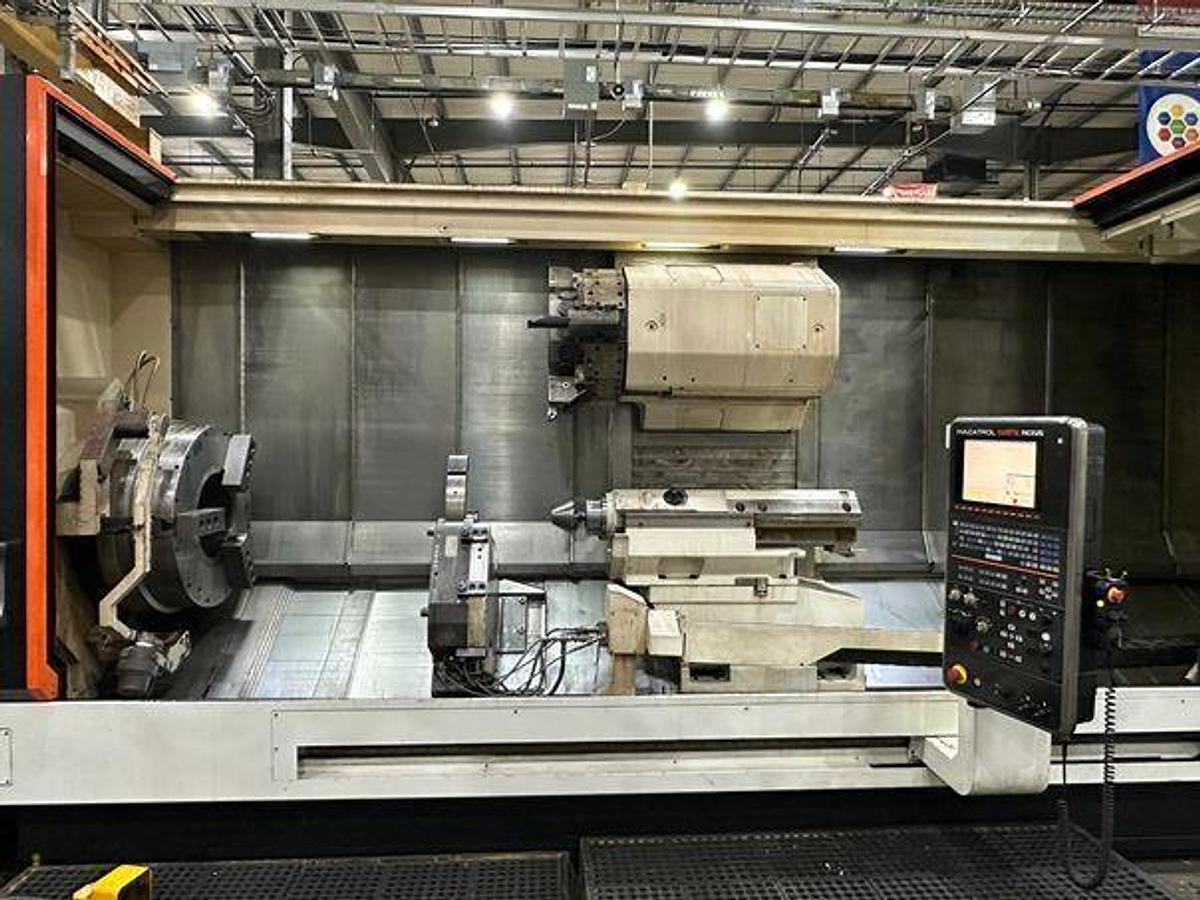

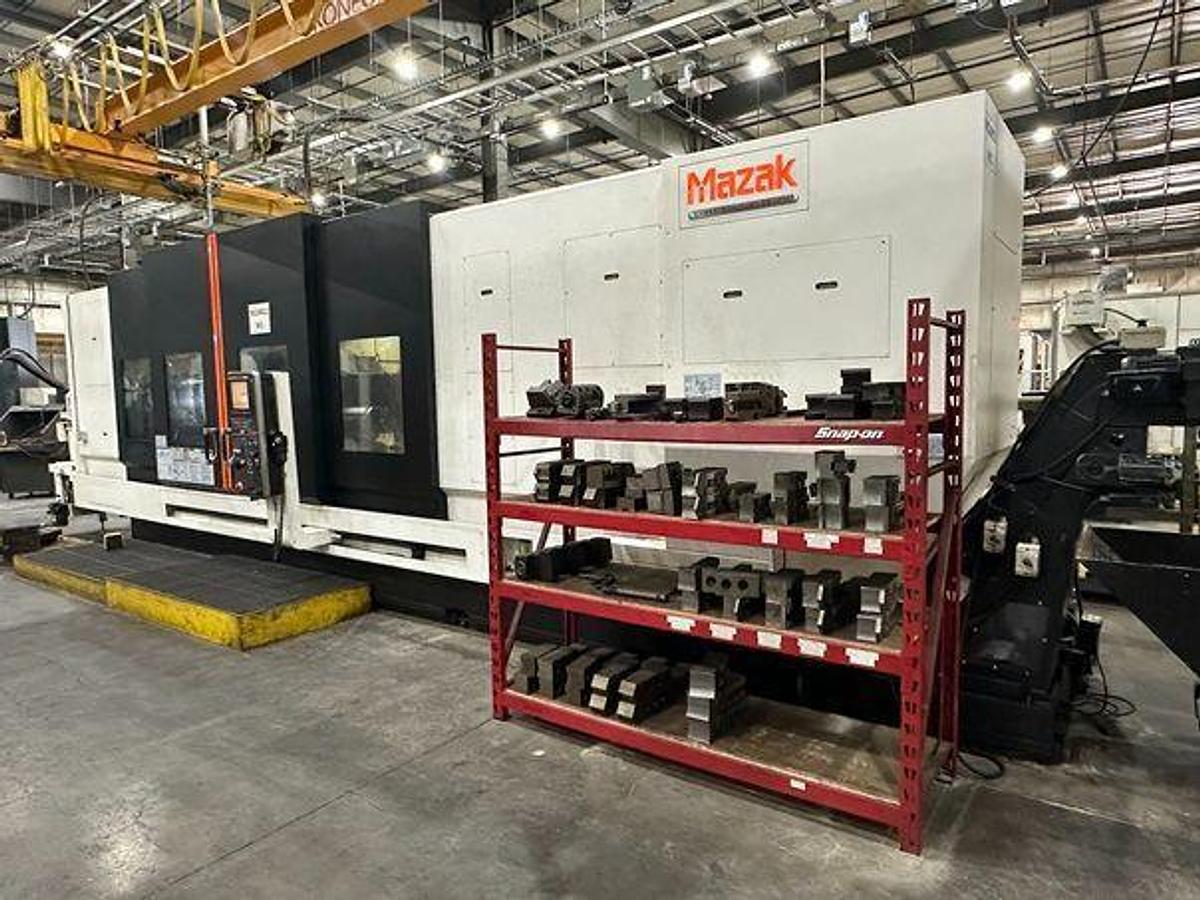

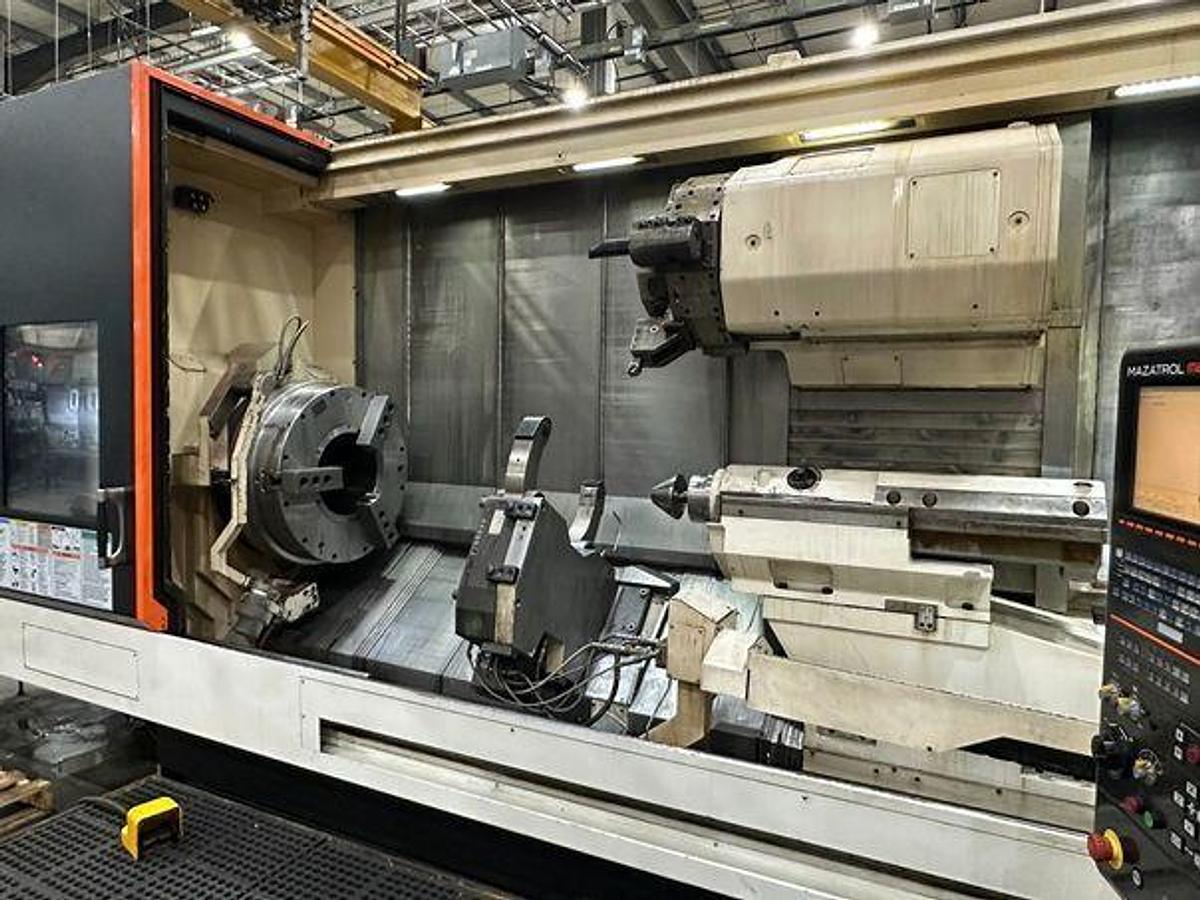

2012 Mazak Cybertech Turn 5500M x 157" with 14.75″ Bore Multi-Tasking CNC Lathe for Oil Industry
2012 Mazak Cybertech Turn 5500M x 157" with 14.75″ Bore Multi-Tasking CNC Lathe for Oil Industry
or
Call 859-653-9060
Description
EQUIPPED WITH:
Equipped With (subject to buyer verification):
Mitsubishi Matrix Nexus Controller
Live Tooling
Pneumatic Main Chuck: BP 800-375
SMW-AUTOBLOK K6-ZSW Hydraulic Steady Rest min/max: 5.31” to 18.11”
Additional Manual Steady Rest: max 23.5”
Tailstock
Boring Bar Stocker
Tool Eye
Chiller
Three (3) ID holders: grooving, finish bore, rough bore
Three (3) OD holders; grooving, finish, roughing
Twenty-One (21) sets of various size soft jaws
Specifications
| Manufacturer | Mazak |
| Model | Cybertech Turn 5500M |
| Year | 2012 |
| Condition | Used |
| Stock Number | XL60726DT |
| Maximum swing | 36.02” |
| Swing over cross slide upper turret | 27.56” |
| Maximum machining diameter upper turret | 31.89” |
| Maximum machining length upper turret | 157.0” |
| Rotating speed (min-1) | 2 to 500 |
| Through-hole diameter | 14.76” |
| Main Spindle Index | C-AXIS |
| Spindle nose | JIS A2-20” |
| Main Spindle Speed | 60 hp |
| Milling output (Continuous/Half-hourly rating) | 15 hp |
| Movement stroke tailstock | 157.00 |
