2006 Mazak Integrex 200IVS
2006 Mazak Integrex 200IVS
Description
Mazatrol Matrix Control
EIA/ISO Function Simultaneous 5 Axes
Tool Tip Point Control / Simultaneous 5 Axes
Tool Radius Comp
Auto Power ON/OFF + Warm up
EIA/ISO Input
Chuck & Turret Air Blast
1st Spindle Workpiece Cleaning Coolant
RE- THREADING
THREAD START POINT COMP
Overload Detection
ATLM
Auto Parts Catcher

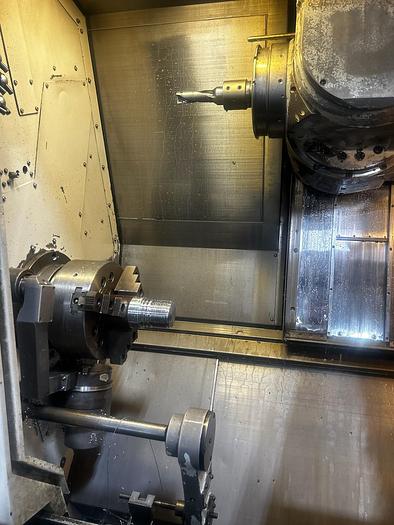

Main Chuck Size: 10" B-210A615/4200 RPM

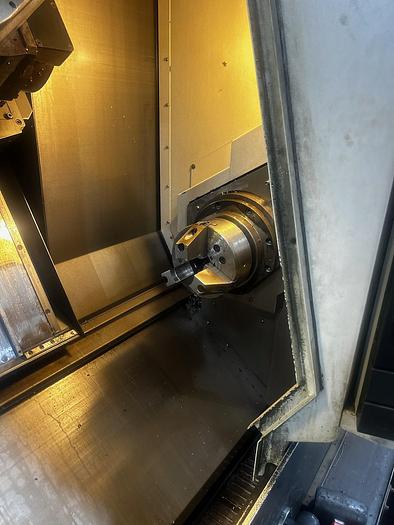

Sub Spindle Chuck: 8" B208 Non Thru
Prep for Multi & Flash System
Prep for Visual ID / Data Management for 80T KM Mag
80 KM Tool Mag
1st Spindle & Mill Spindle IND. Rotation (REQ EIA)
Cylindrical Interpolation G07
Milling Spindle Synchronous Tapping
EIA/ISO Spindle & Mill Independent Rotation
Inch/Metric Conversion
Windows XP Operating System
X,Y,Z Pitch Error Compensation
Chuck / Open Close Confirmation
9-Station Lower Turret
Coolant Thru Mill Head
Y-Axis Control
213-PSI Through Spindle Coolant / Flood Simul-Flowable
2nd Spindle C-Full C-Axis
Chip Conveyor Hinge Side DischargeC1&C2 Synchronous Spindle Orientation
Specifications
| Manufacturer | Mazak |
| Model | Integrex 200IVS |
| Year | 2006 |
| Condition | Used |
| Stock Number | XL72124KT |
| Maximum swing | 26.0 |
| Swing over Cross Slide | 19.5" - 26" |
| Cutting Dia. / Chucking | 26" |
| Cutting length | 40" |
| Max. Distance Between Chuck Faces | 41.14" |
| Main Spindle Nose | A2-6 |
| Spindle Bore | 2.99" |
| Bar Capacity | 2.00 |
| Spindle Speed | 5000 RPM |
| Spindle Index - C Axis | 0.0001 deg. |
| Spindle Motor | AC 30HP |
| Second Spindle Nose | A2-6 |
| Sub Spindle Bore | 2.99" |
| Sub Spindle Speed | 35 ~ 5000 RPM |
| Sub Spindle - C-Axis | 0.0001 Deg |
| Sub Spindle Motor | AC 25 HP |
| Tool Capacity | 80 Position Magazine |
| Tool Shank | KM |
| Rotary Spindle Speed | 12,000 RPM |
| B-Axis Index | 5 Degree Coupling Clamp |
| Floor Space | 150.39"L x 86.93"W x 102.2 |
| Machine Weight | 19,140 LBS |
