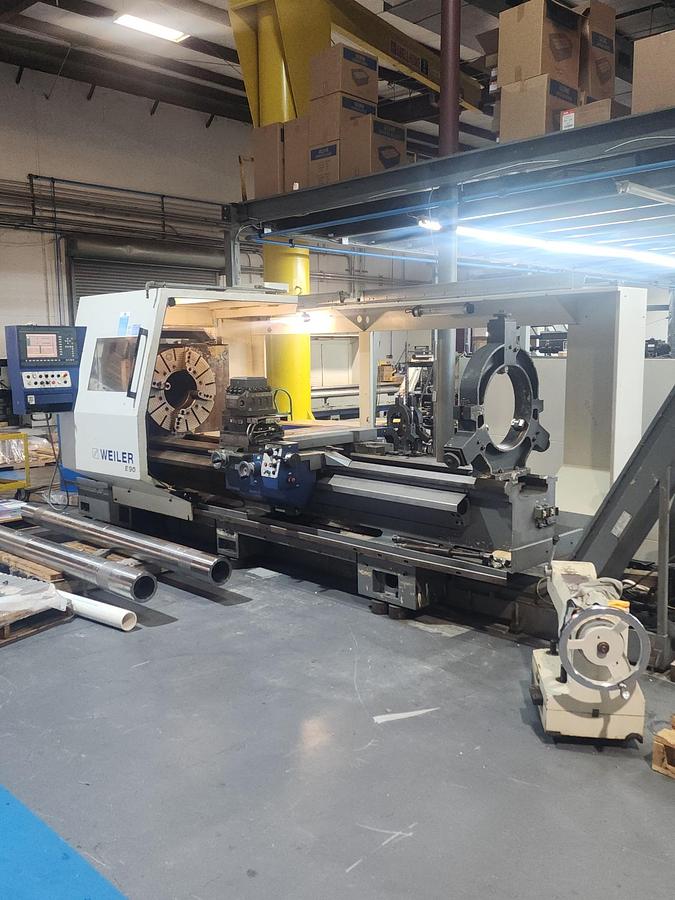

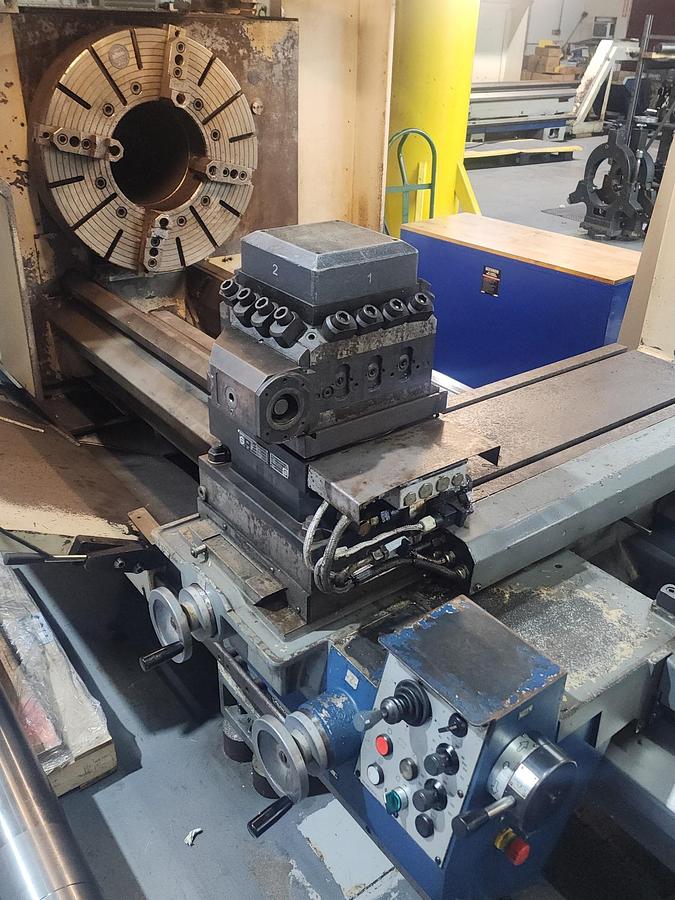

2008 Weiler E-90 / 3000 CNC Lathe with 14" Spindle Bore
2008 Weiler E-90 / 3000 CNC Lathe with 14" Spindle Bore
or
Call 859-653-9060
Description
EQUIPPED WITH:

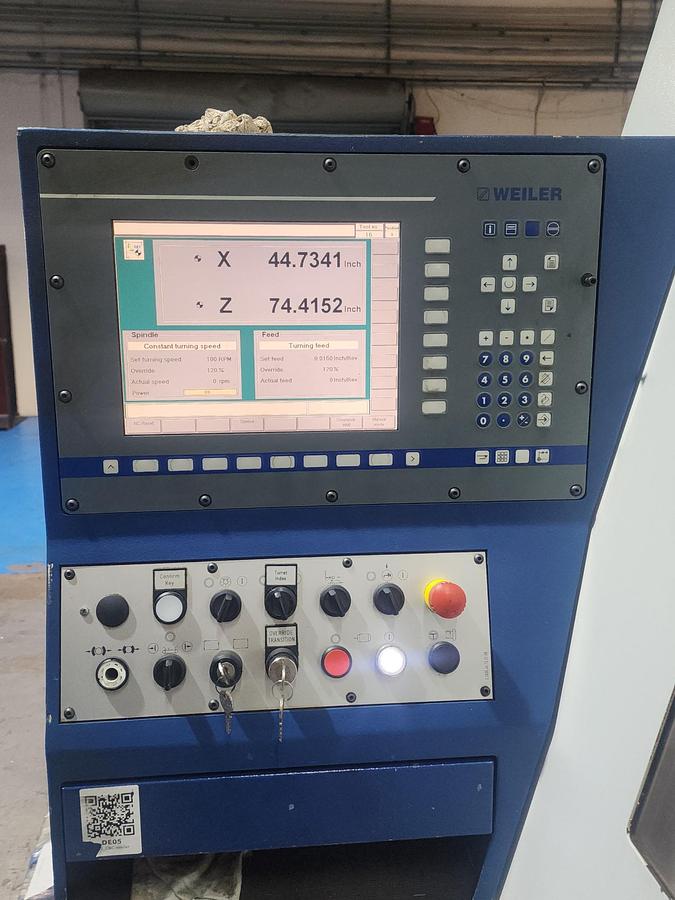

- Weiler Control (Siemens)
- 18"Chuck
- Chip Conveyor
- Threading Cycle
- Front and Rear 4-Jaw Chucks
Specifications
| Manufacturer | Weiler |
| Model | E-90 / 3000 CNC Lathe with 14" Spindle Bore |
| Year | 2008 |
| Condition | Used |
| Serial Number | 212 |
| Stock Number | XL10232023DF |
| Control type | Siemens |
| Maximum swing | 35.40 |
| Bar capacity | 10.2 |
| Chuck diameter | 15.00 |
| Distance Between Centers | 120″ |
| Swing over Bed | 35.4″ |
| Swing over Cross Slide | 20.9″ |
| Cross Slide Travel | 23.2″ |
| Bed Width | 23.6″ |
| Drive Power at 60 %/100 % Duty Cycle | 60/49.6 HP |
| Spindle Bore | 14.0" |
| Spindle Speed | 1 ~ 700 RPM |
| Tailstock Quill Taper | MT 6 |
| Weight | 21,500 IBS |
