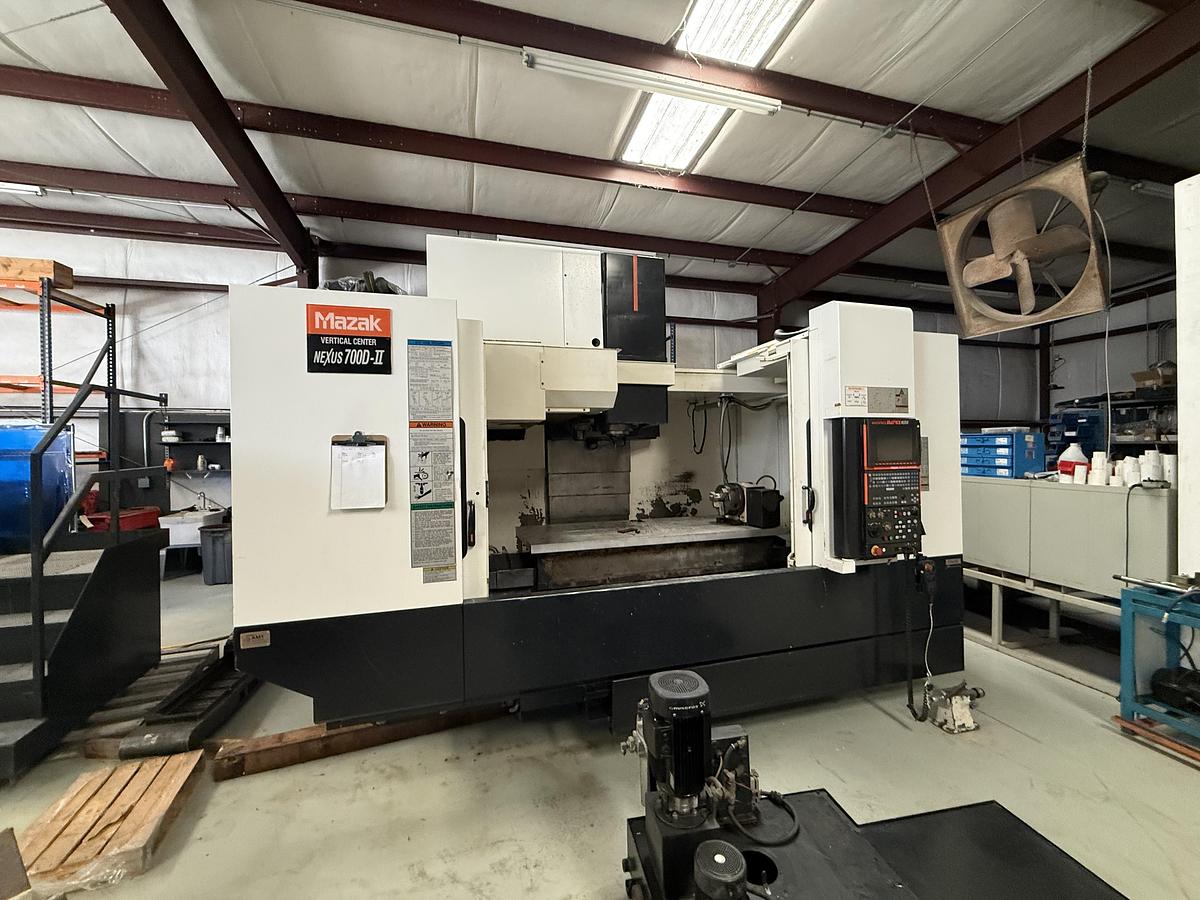

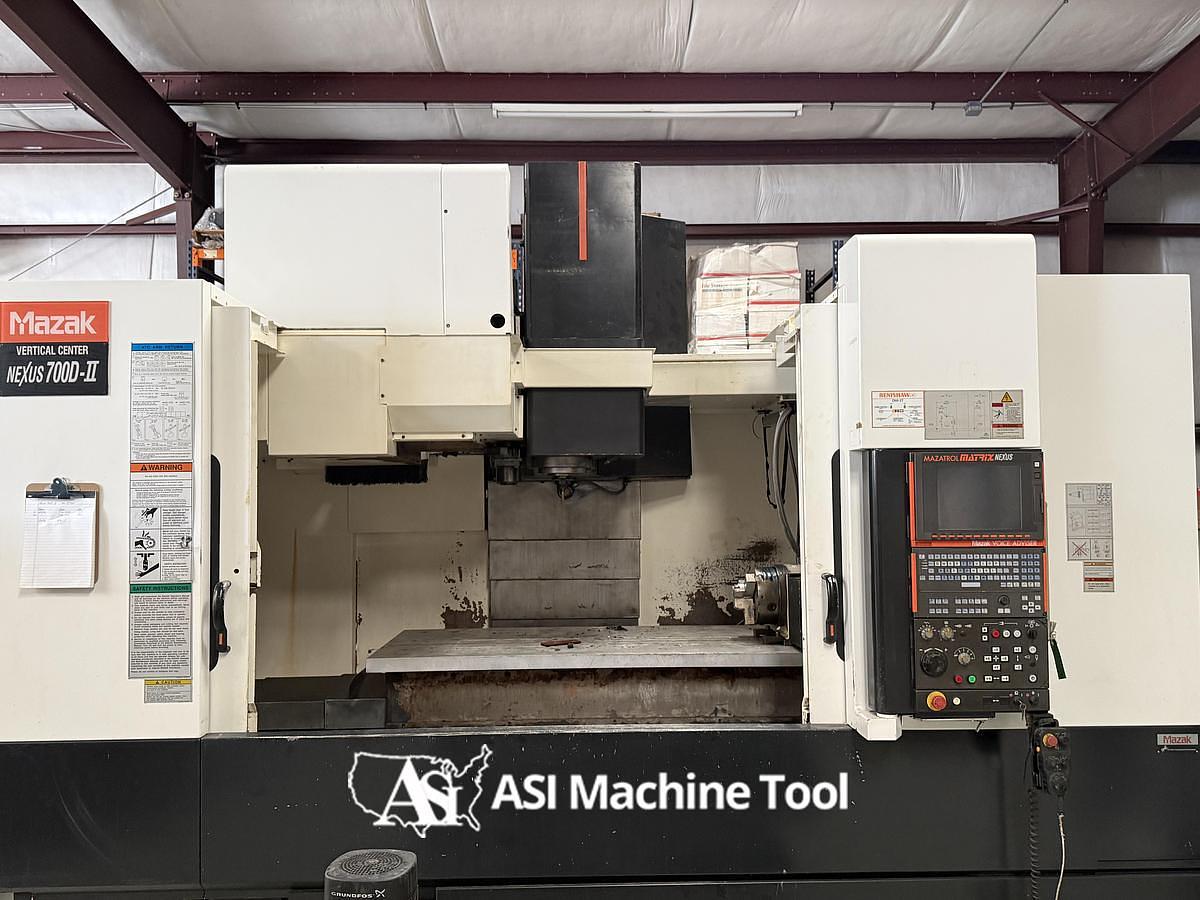

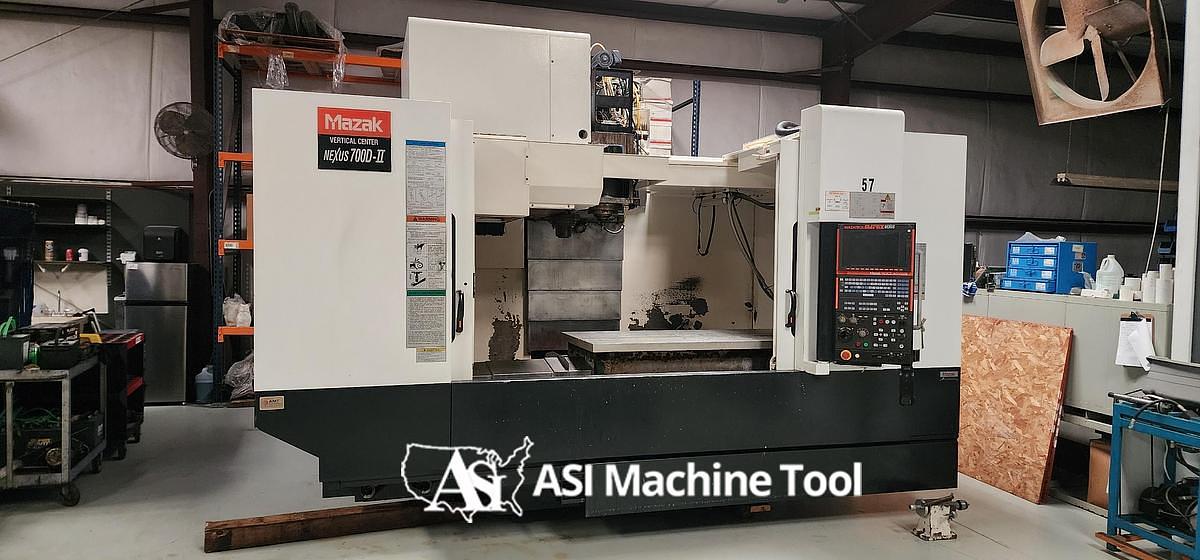

2011 Mazak VCN 700D / 50II with 4th Axis Table
2011 Mazak VCN 700D / 50II with 4th Axis Table
Description
Control Mazatrol, Table Size 68.5" x 27.55", X-Axis Travel 60.24", Y-Axis Travel 27.55", Z-Axis Travel 25.59", Table Load Capacity 2,640 lbs, Distance from Spindle Nose-to-Table Top 7.87″ Min ~ 33.46″ Max, Distance from Spindle C/L to Column 28.42″, Spindle Speed 26-6000 RPM (Hi-Torque Spindle), Number of Spindle Ranges 2 (Auto Gear Shift), Servo Magazine Capacity 24 Tools, Taper CAT 50, Spindle Horsepower (30 Min/Cont) AC 30 HP, X-Axis Rapid Traverse 1181 IPM, Y-Axis Rapid Traverse 1181 IPM, Z-Axis Rapid Traverse 1181 IPM, Floor Space…(without Chip Conveyor) 161.41″ X 137.24″, Machine Height From Machine Base 117.12″, Machine Weight 25,250 lbs, Equipped With: Mazatrol Matrix Nexus Control - Lan Port in Electrical Cabinet - MT Connect Preparation - EIA/ISO Code Input Function - ADD EIA/ISO Functions - Absolute Encoder Sys N/A with S/F-3X - Detachable Manuel Pulse Generator - Operator Door Interlock with Lock Switch - Y-Axis Travel 27.55" - 24 ATC - Total Cover - Cover Coolant - Hi-Pressure Coolant Thru Sys w/Flood 213psi - Main Spindle Motor AC 30hp - Spindle Speed 6000 High Torque Spindle 665 FT/LBS - Work Light - North American Power Transformer - Relocation Device- Windows XP Operating Sys for Mazak Machine Control - MX Roller Guide Sys Dual Probing Kit OMP60/OTS AA w/EIA Inspection Plus - MT Connect Adapter Software - Left Side Hinge Type Chip Conveyor for Steel - B(Synchronized Tapping) - Mazak MR-250RAM01 NC Rotary Table Package - 9.13" 3-Jaw Manual Chuck SC-9T - Kitagawa TS-250 Tailstock for Mazak MR-250
Contact Me Today for More Information | lou@asimachinetool.com
Specifications
| Manufacturer | Mazak |
| Model | VCN 700D / 50II |
| Year | 2011 |
| Condition | Used |
| Serial Number | 227764 |
| Stock Number | XL050124 |
| Machine Type | CNC Vertical Machining Center |
| Control | Mazatrol |
| Table Size | 68.5" x 27.55" |
| X-Axis Travel | 60.24" |
| Y-Axis Travel | 27.55" |
| Z-Axis Travel | 25.59" |
| Table Load Capacity | 2,640 lbs |
| Distance from Spindle Nose-to-Table Top | 7.87″ Min ~ 33.46″ Max |
| Distance from Spindle C/L to Column | 28.42″ |
| Spindle Speed | 26-6000 RPM (Hi-Torque Spindle) |
| Number of Spindle Ranges | 2 (Auto Gear Shift) |

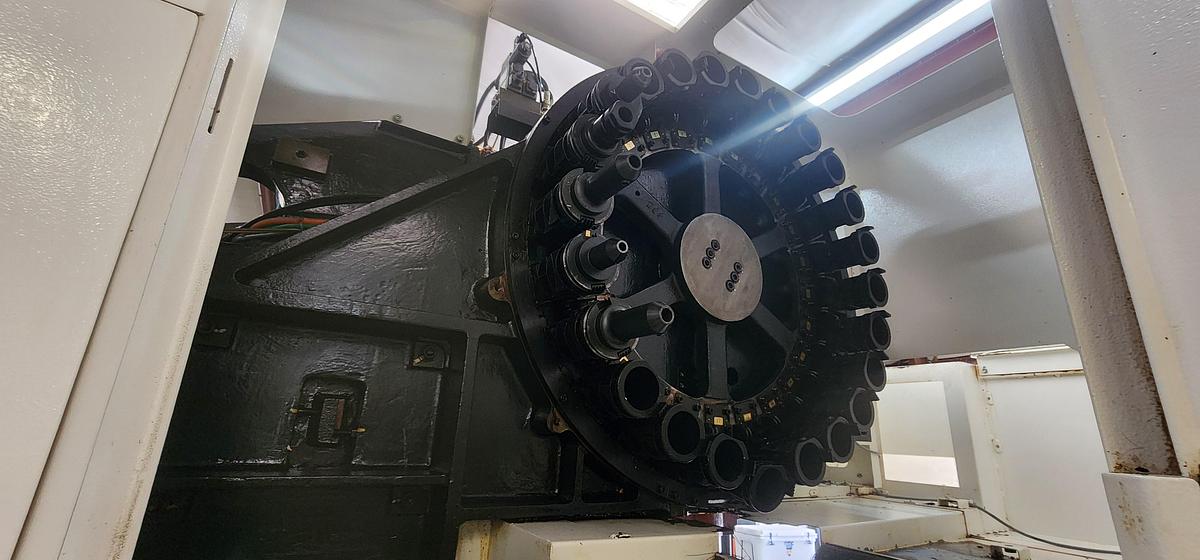

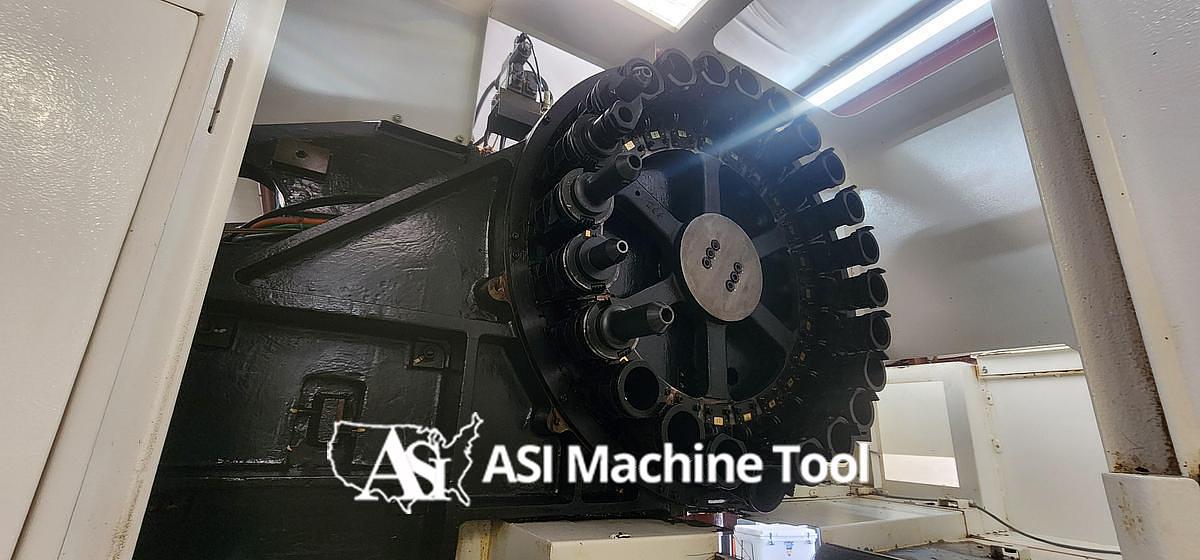

| Servo Magazine Capacity | 24 Tools |
| Spindle Horsepower | (30 Min/Cont) AC 30 HP |
| X-Axis Rapid Traverse | 1181 IPM |
| Y-Axis Rapid Traverse | 1181 IPM |
| Z-Axis Rapid Traverse | 1181 IPM |
| Floor Space…(without Chip Conveyor) | 161.41″ X 137.24″ |
| Machine Height From Machine Base | 117.12″ |
| Machine Weight | 25,250 lbs |

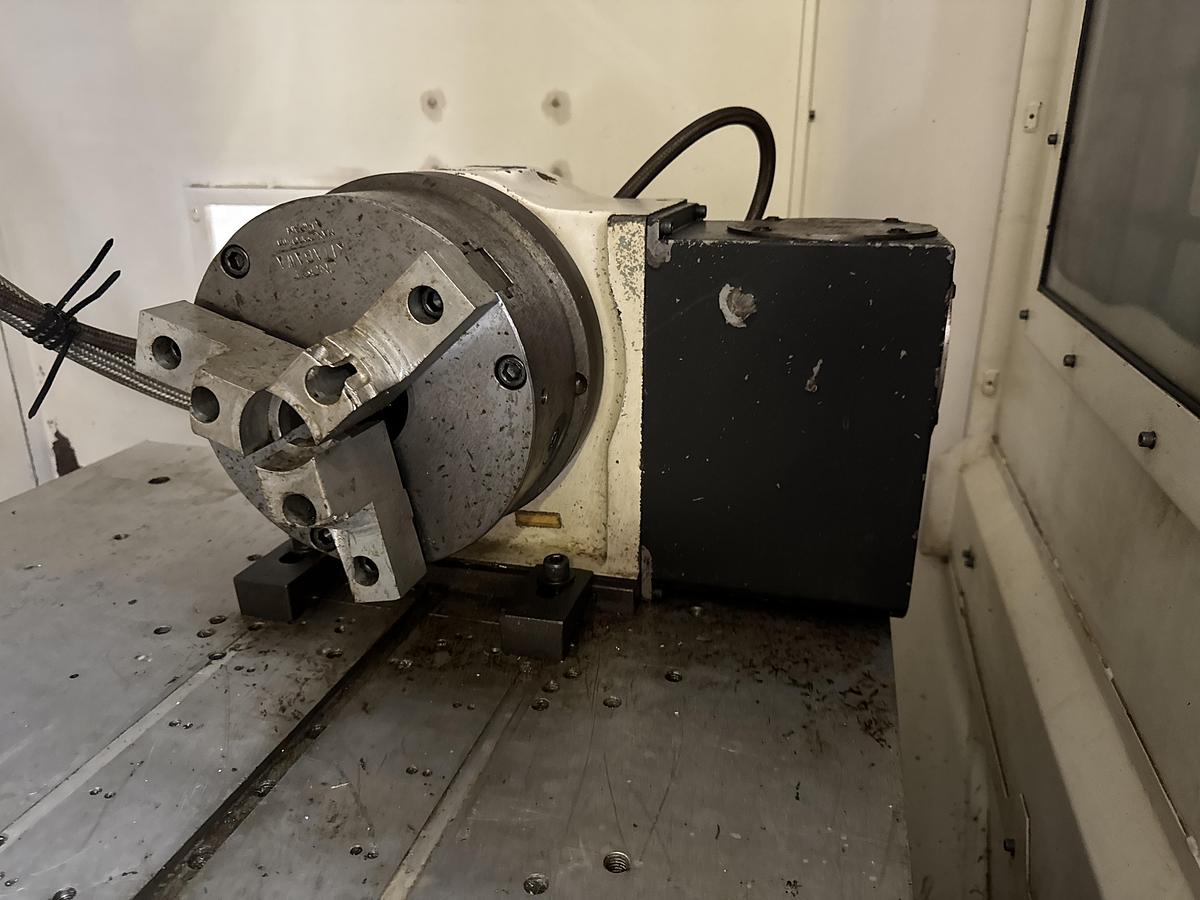

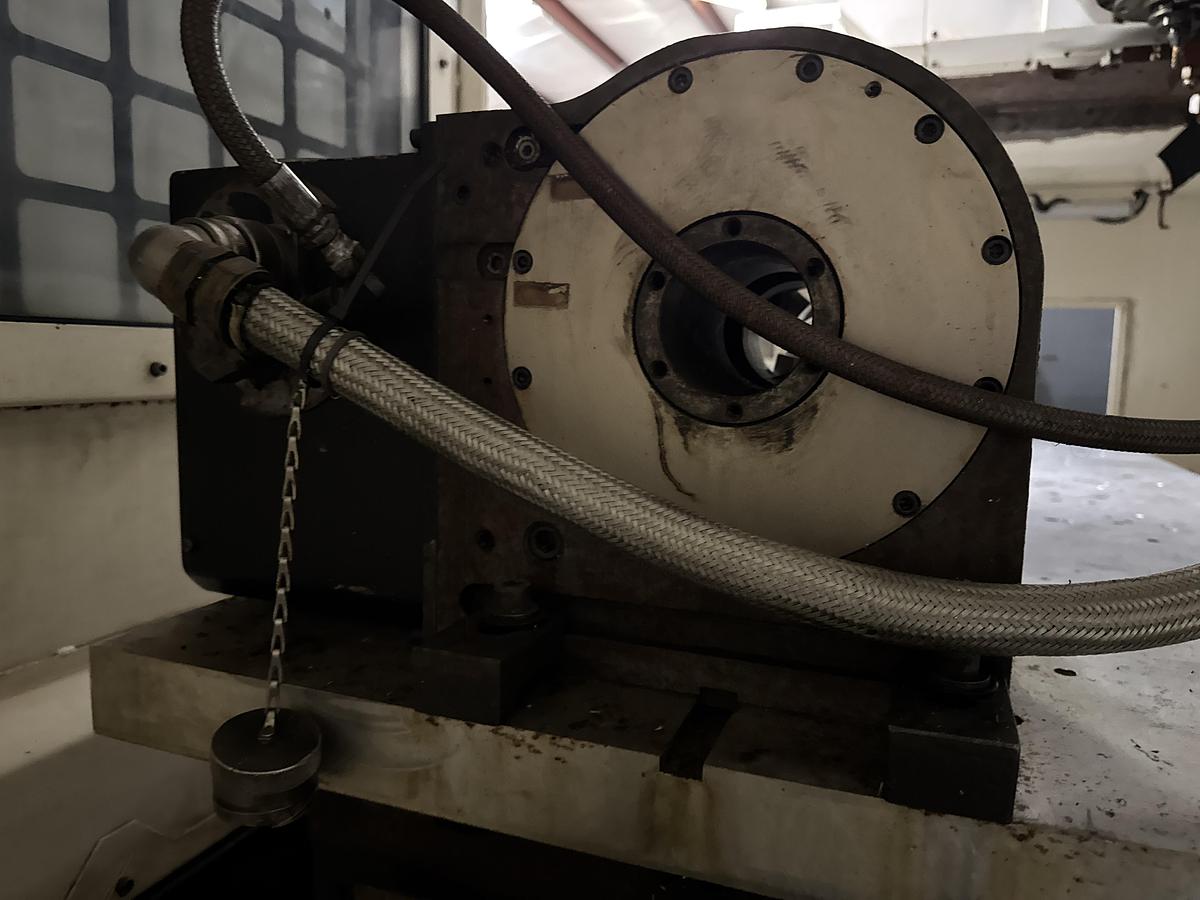

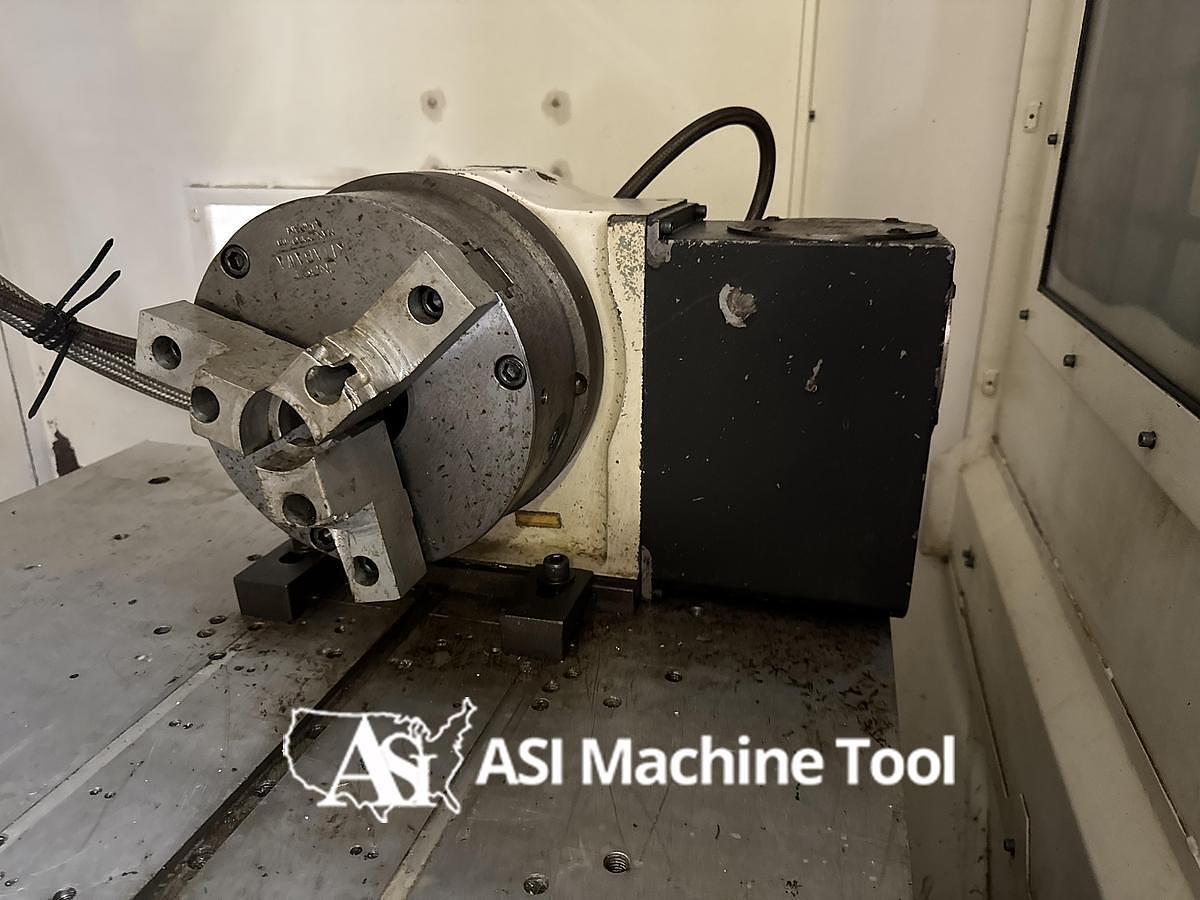

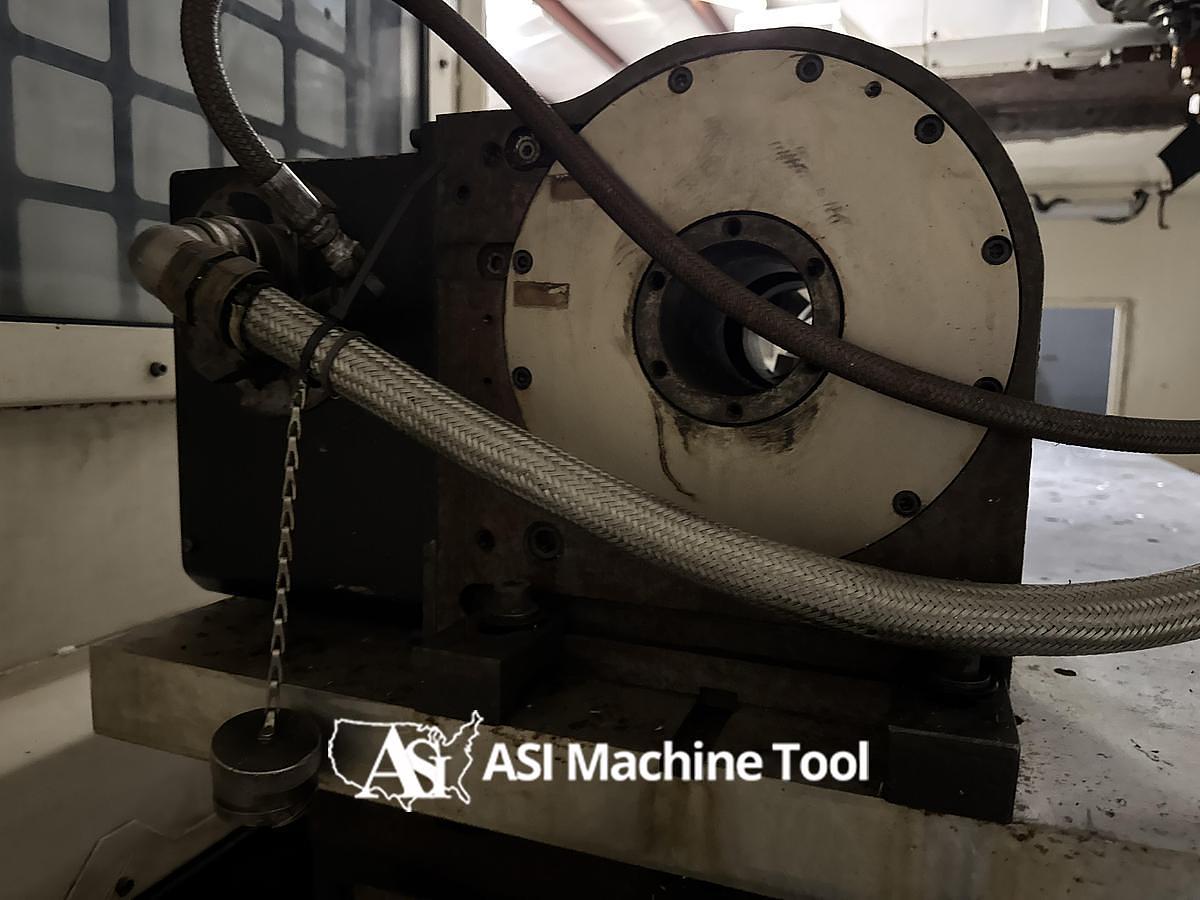

| Equipped With | Mazatrol Matrix Nexus Control - Lan Port in Electrical Cabinet - MT Connect Preparation - EIA/ISO Code Input Function - ADD EIA/ISO Functions - Absolute Encoder Sys N/A with S/F-3X - Detachable Manuel Pulse Generator - Operator Door Interlock with Lock Switch - Y-Axis Travel 27.55" - 24 ATC - Total Cover - Cover Coolant - Hi-Pressure Coolant Thru Sys w/Flood 213psi - Main Spindle Motor AC 30hp - Spindle Speed 6000 High Torque Spindle 665 FT/LBS - Work Light - North American Power Transformer - Relocation Device- Windows XP Operating Sys for Mazak Machine Control - MX Roller Guide Sys Dual Probing Kit OMP60/OTS AA w/EIA Inspection Plus - MT Connect Adapter Software - Left Side Hinge Type Chip Conveyor for Steel - B(Synchronized Tapping) - Mazak MR-250RAM01 NC Rotary Table Package - 9.13" 3-Jaw Manual Chuck SC-9T - Kitagawa TS-250 Tailstock for Mazak MR-250 |
